2711c-K2m HMI Touch Screen Panelview C200 Series B Rev A Monochrome 2" Terminal Pad

I'm Online Chat Now
Great communication., A+ pleasure to do business with, Highly recommend.

—— Michael

Great Suppliers it’s a pleasure to work with you

—— David

quick shipping works great thanks

—— Elaine

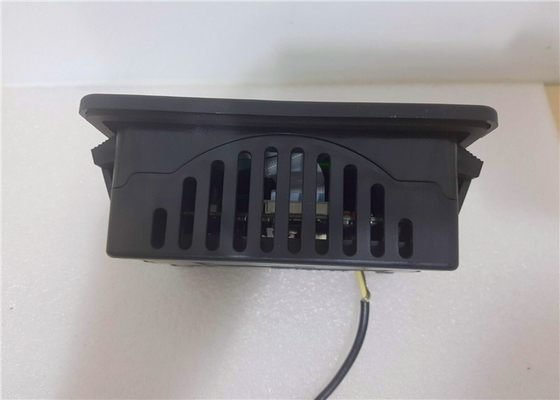

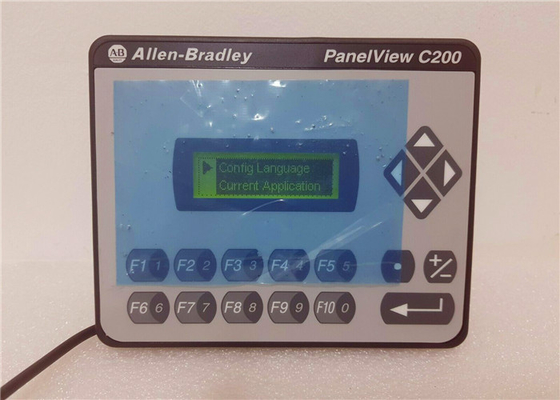

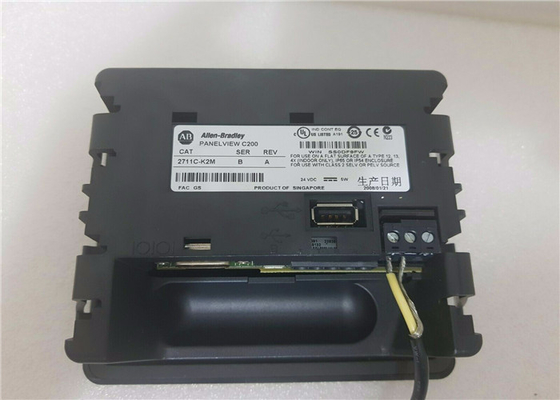

2711c-K2m HMI Touch Screen Panelview C200 Series B Rev A Monochrome 2" Terminal Pad

2711c-K2m HMI Touch Screen Panelview C200 Series B Rev A Monochrome 2" Terminal Pad
2711c-K2m HMI Touch Screen Panelview C200 Series B Rev A Monochrome 2" Terminal Pad 2711c-K2m HMI Touch Screen Panelview C200 Series B Rev A Monochrome 2" Terminal Pad 2711c-K2m HMI Touch Screen Panelview C200 Series B Rev A Monochrome 2" Terminal Pad 2711c-K2m HMI Touch Screen Panelview C200 Series B Rev A Monochrome 2" Terminal Pad

Large Image :  2711c-K2m HMI Touch Screen Panelview C200 Series B Rev A Monochrome 2" Terminal Pad Get Best Price

Product Details:

Place of Origin: USA
Brand Name: AB
Certification: CE
Model Number: 2711C-K2M

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: 1-500USD
Packaging Details: orginal box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 30 PCS/ PER Month
Detailed Product Description
Brand: AB Model: 2711C-K2M
Type: Touch Screen Origin Of Country: USA
Series: C200 Display Size: 2 In.
High Light:

allen bradley display panel

,

hmi display touch screen

ALLEN-BRADLEY PANELVIEW C200 2711C-K2M SERIES B REV A MONOCHROME 2" TERMINAL PAD

Quick Detials


  • ALLEN BRADLEY
  • 2711C-K2M
  • 2711CK2M
  • OPERATOR INTERFACE
  • PANELVIEW C200
  • W/ NUMERIC KEYPAD
  • MONOCHROME TERMINAL 2-INCH
  • TRANSFLECTIVE
  • STN PASSIVE MATRIX LCD
  • one year warranty


Description:

Allen Bradley PanelView Component, C200 Model, 2 in., Monochrome Display

About 2711C-K2M

The Allen-Bradley 2711C-K2M is a PanelView Component C200 Terminal providing visualization and control for low-end applications that use Ethernet or serial communications. This device can connect to the PowerFlex 4 drives and the preferred range of controllers include the Allen-Bradley MicroLogix and Micro800 families. These include Analog Input Modules 1771-1E and 1771-1F. With this PanelView, the operator interfaces with a 2-inch display can be accessed from a web browser over an Ethernet connection, due to the built-in programming software. The panel installation and maintenance can be made easy with the quick-lever clips and mounting clamps. This C200 terminal's easy interface lets you design your own application and simultaneously adjust the terminal settings as well. You can also check history, alarm messages directly through the interface panel of 2711C-K2M. The applications can be easily created using the free DesignStation software or an emulator.

2711C-K2M has an input voltage of 18 to 30 Volts DC, or 24 Volts DC nominally. Be sure to never connect commons together when using this device. With a power consumption of 5 Watts, it can be programmed easily with a USB device as well. The operator input has a total of 10 functional keys and backlight time of more than 50,000 hours best suited for C200 and C300 terminals. You don't have to download the application first, instead, the results of the design can be seen directly on the terminal itself.
The power requirements for this product are the 18 to 30 Volts DC. It supports RS-232 (DH-485), RS-232 (DF1), RS-485 as communication ports which are available from Siemens as well as Modbus through various vendors. Weighing around 0.65 pounds and with a display area of 49 x 14 mm (1.93 x 0.55 in.), it is quite handy and easy to use and a USB flash card can be used as a memory card supporting Firefox 3.0, Internet Explorer 7 or 8.



Technical specifications:

Manufacturer Rockwell Automation
Brand Allen-Bradley
Product Line Component Terminal
Series C200
Part Number/Catalog No. 2711C-K2M
Display Size 2 in.



Display Color Monochrome
Input Type Keypad
Power 24VDC
Resolution 122 x 32 pixels
Power Consumption 5 Watts
