Product Details:
Payment & Shipping Terms:
|
| Brand: | Honeywell | Model: | TC-IXL061/TK-IXL061 |
|---|---|---|---|
| Type: | Redundant Power Supply Module | Origin Of Country: | USA |
| Part Numnber: | 96978480-B01 | REV.: | K01 |
| High Light: | passthrough redundant power supply,analog output redudant power module |
||

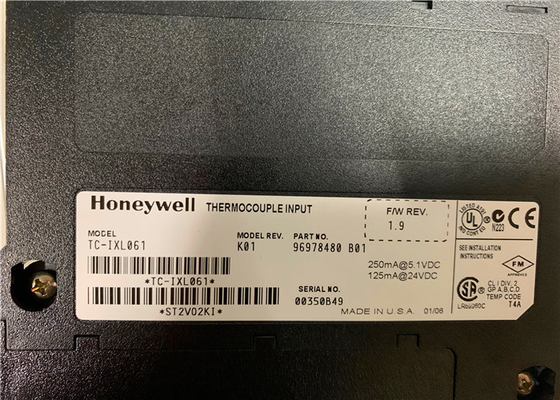

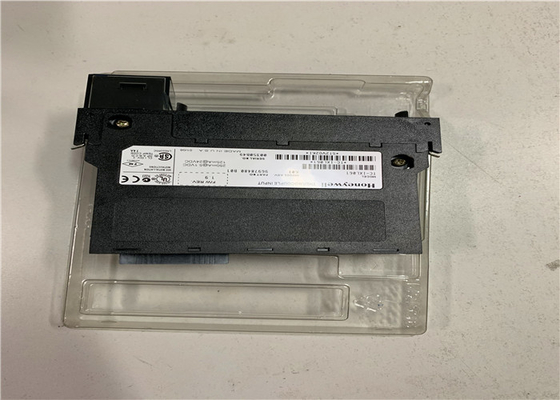

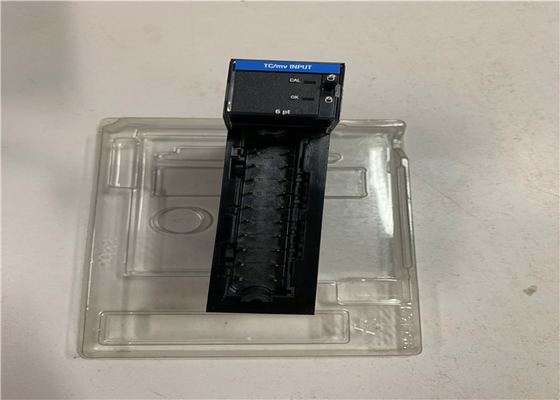

Honeywell TC-IXL061/TK-IXL061THERMOCOUPLE INPUT Redundant Power Supply MODULE P/N 96978480-B01
Quick Details:
HONEYWELL
TC-IXL061
TCIXL061
INPUT MODULE THERMOCOUPLE 5.1/24VDC 125/250MA
one year warranty
ControlEdge HC900 IO Modules Specifications
Overview
The Honeywell ControlEdge HC900 Controller is an advanced loop and logic controller offering a modular design sized to satisfy the control and data acquisition needs of a wide range of process equipment.
I/O Modules The following I/O modules are available to create a custom control solution.
16 Channel Universal IO Module Galavanically isolated Input/Output to chassis (p.27)
8-point universal analog input modules: Galvanic isolation point to chassis inputs may be mixed on a module and may include multiple thermocouple types, RTDs, ohms, voltage or mill voltage types – all easily assigned using the Process Control Designer configuration tool. High point-to-point galvanic isolation simplifies installation and saves the expense of external isolation hardware (p.6).
16-point high level analog input module: each point is configurable for V or mA. Galvanically isolated point to chassis. Galvanically isolated point to point (p.10). 250- ohm shunt resistors can be added per channel.
4-point galvanically isolated analog output module. Galvanically isolated point to chassis supports from 0 to 20mA each (p.12).
8-point analog output, galvanically isolated in 2 groups of 4 points. Galvanically isolated point to chassis. Supports from 0 to 20mA each (p.13).
16-point analog output, galvanically isolated in 4 groups of 4 points. Galvanically isolated point to chassis. Supports from 0 to 20mA each (p.14).
16-point digital input modules: Contact closure type, DC Voltage, AC Voltage and AC/DC voltage types (p.15). Galvanically isolated in groups of 8 channel to chassis
32-point digital input module: DC voltage. Galvanically isolated point to chassis. Galvanically isolated in 2 groups of 16 points (p.1915).
8-point AC or 16-point DC digital output modules (sinking type). Galvanically isolated point to chassis. Galvanically isolated in 2 groups of 8 points (p.18).
32-point digital output: DC voltage (sourcing type). Galvanically isolated point to chassis. Galvanically isolated in 2 groups of 16 points (p.23).
8-point relay output module: four form C type and four form A type relays. Galvanically isolated point to chassis. Galvanically isolated relay to relay (p.20).
4 channel Pulse/Frequency/Quadrature I/O module. Galvanically isolated point to chassis (p.24).
Specifications for modules
| I/O Module Attributes | |
| Remove & Insert under power | Standard. Modules are automatically sensed and configured on insertion. Field power shall be disconnected before removing field terminal blocks |
| LED Channel State indicators | Via light pipes at front of module, one state LED for each digital I/O point – green indicates ON, logic side |
| LED Module Status indicator | Via light pipe, one per module, tri-color to represent module status, Green = OK, Red = Fault (# of flashes indicates fault), Amber = Override (Force) |
| I/O Labels | Color-coded, on module door, removable, with write-on area to label I/O |
| Processor | Micro-controller per module for parallel processing |
| Terminal Boards | 20 screw: Barrier or Euro style, tin-plated or gold-plated (for DC connections) 36 screw: Euro style gold plated (Required with certain higher capacity modules) |
| Keying | Hardware keying matches each module to its terminal block with its field wiring |
