Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1746-NI8 |
|---|---|---|---|
| Type: | Analog I/O Module | Origin Of Country: | USA |
| Series: | SLC 500 | Update Time: | 6 Milliseconds |
| High Light: | allen bradley memory module,allen bradley plc cpu |
||

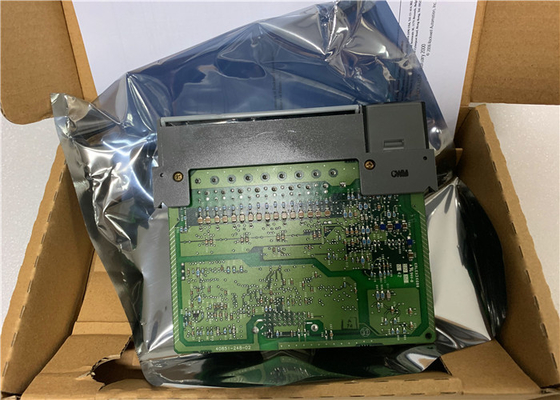

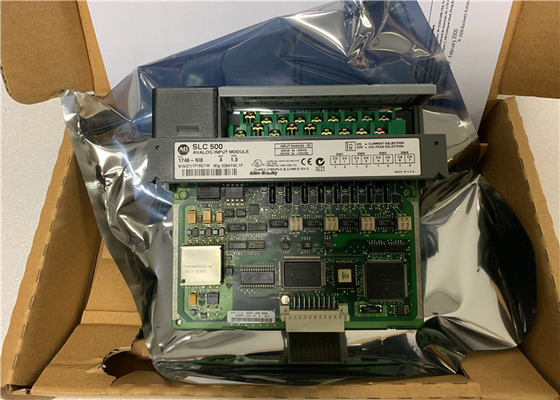

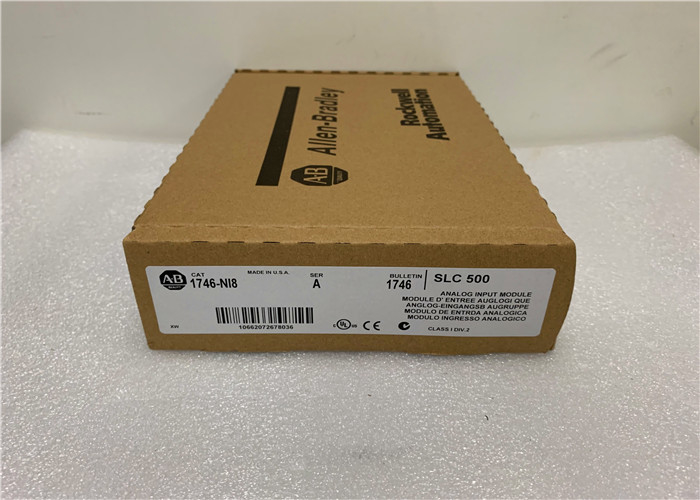

1PC New Allen Bradley 1746-NI8 SLC 8 Point Analog Input Module 1746NI8
Quick Detials
one year warranty
SPECIFICATIONS
The 1746-NI8 is a SLC 500 Analog I/O Module.
This Analog I/O Module has 8 Inputs and a Backplane Current (5 Volts) of 200 milliamps. It has a Bandwidth of 1-75 Hertz and an Update Time
of 6 milliseconds.
About 1746-NI8
The 1746-NI8 is an analog single-slot I/O module for the SLC 500 system. It is a high-resolution analog input module with high-density components and it can be configured by the user with software. It is suitable for time-sensitive applications that require fast analog signal conversion and high accuracy. The 1746-NI8 module has an 8-Channel input with an isolated backplane. Its backplane current consumption is 200mA and 100mA at 5 Volts DC and 24 Volts DC respectively. It has a maximum backplane power consumption of 1 Watt at 5 Volts DC and 2.4 Watts at 24 Volts DC. The 1746-NI8 can be installed in any I/O slot, except Slot 0 of the SLC 500 I/O chassis. It can be converted to digital operation with successive approximation and using the switched capacitor. The 1746-NI8 module uses programmable filter frequencies with a low-pass digital filter for input filtering. It performs continuous autocalibration and has an isolation voltage of 750 Volts DC and 530 Volts AC, tested for 60 seconds. It has a common-mode voltage ranging from -10 to 10 Volts with a maximum of 15 Volts between any two terminals.
The 1746-NI8 module comes with a removable terminal block of 18 positions. For wiring, the Belden 8761 or a similar cable must be used with one or two 14 AWG wires per terminal. The cable has a maximum loop impedance of 40 Ohms at the voltage source and 250 Ohms at the current source. For troubleshooting and diagnostics, it has 9 green LED status indicators. The 8 channels have one indicator each to display the input status and one each for displaying the module status. The 1746-NI8 has a Division 2 hazardous environment standard with an operating temperature of 0 to 60 degrees Celsius.
Technical specifications:
|
Manufacturer |
|
|
Brand |
|
|
Part Number/Catalog No. |
1746-NI8 |
|
Series |
SLC 500 |
|
Module Type |
Analog I/O Module |
|
Inputs |
8 |
|
Backplane Current (5 Volts) |
200 milliamps |
|
Backplane Current (24 Volts DC) |
100 milliamps |
|
Bandwidth |
1-75 Hertz |
|
Update Time |
6 milliseconds |
|
Resolution |
16 bits |
|
Step Response |
0.75-730 milliseconds |
|
Applications |
Combination 120 Volts AC I/O |
|
Backplane Power Consumption |
14 Watts Maximum |
|
Input Impedance |
250 Ohms |
|
Cable |
1492-ACABLE*C |
|
Thermal Dissipation |
3.4 Watts |
|
Wire Size |
14 AWG |
