Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1746-OW16 |
|---|---|---|---|
| Type: | Digital Contact Output Module | Origin Of Country: | USA |
| Series: | SLC 500 | Operating Voltage: | 5-265 Volt AC Or 5-125 Volts DC |
| High Light: | allen bradley memory module,allen bradley plc cpu |
||

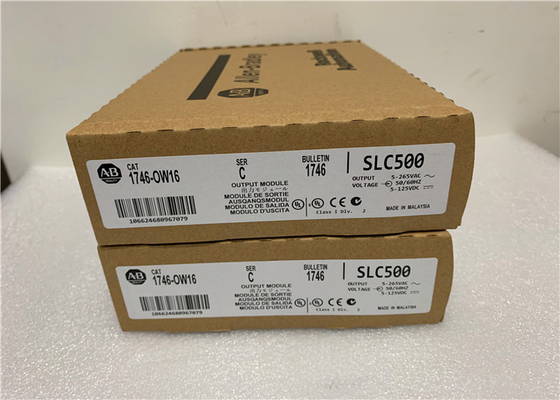

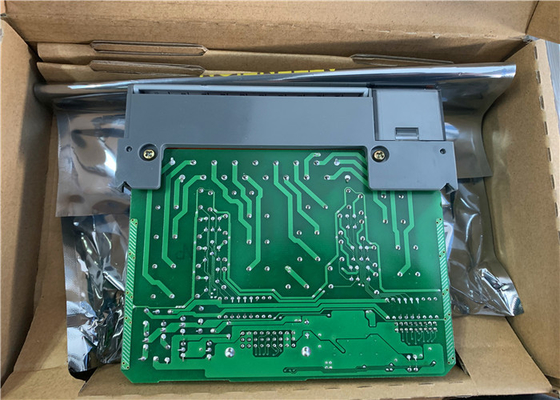

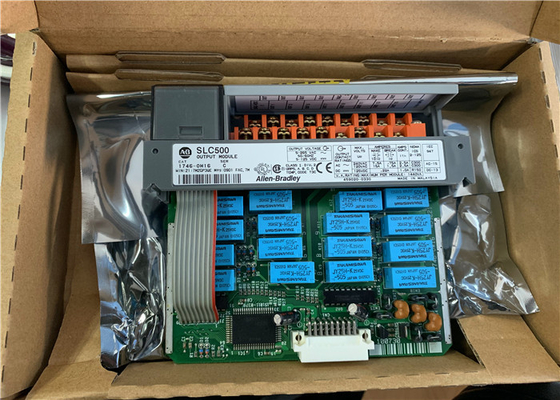

Allen Bradley 1746-OW16 SLC 500 PLC Digital Contact Output Module in Open box
Quick Detials
ALLEN BRADLEY
1746-OW16
1746OW16
OUTPUT MODULE
SLC 500
16 POINT
RELAY
250 VAC
125 VDC
one year warranty
SPECIFICATIONS
The 1746-OW16 is a SLC 500 Digital Contact Output Module.
This Digital Contact Output Module has an Operating Voltage of 5-265 Volt AC or 5-125 Volts DC and 16 N.O. Relay Contact Outputs.
It is intended for Relay Contact Outputs (8 per Common) Applications.
About 1746-OW16
The 1746-OW16 is one of relay output modules in ’s SLC 500 series. It is used in applications with a relay contact type output. It has 16 relay contact outputs and 8 common points. Please keep this module away from any exposure to chemicals which may degrade the sealing properties of the sealing materials. Inspect the module periodically for chemical damage.
The 1746-OW16 has two operating voltages: 5 – 125V DC and 5 – 265V DC. It has 10 ms signal delay in both the “ON” and “OFF” states at the maximum resistive load. The 1746-OW16 has a higher backplane current consumption compared to other relay output modules. It has 0.17A backplane current consumption at 5V DC and 0.18A backplane current consumption at 24V DC. It has a minimum load current 10 mA at 5V DC. The 1746-OW16 has maximum thermal dissipation of 5.7 W. It also has maximum continuous current per module of 16 A. Please note the continuous current per module to ensure that the continuous current per module is limited so that the module power does not exceed 1440VA.
The 1746-OW16 is easy to use. It can be configured using compatible Windows programming software or the hand-held terminal (HHT). Therefore, you can set up the module by using your computer. It also has a removable terminal block which allows you to wire up any cables or jumpers to the module easily. Please secure the external connections to the module by using the sliding latches, screws, threaded connectors, or the other means for connections provided with this product.
Technical specifications:
| Manufacturer | Rockwell Automation |
| Brand | |
| Part Number/Catalog No. | 1746-OW16 |
| Series | SLC 500 |
| Module Type | Digital Contact Output Module |
| Operating Voltage | 5-265 Volt AC or 5-125 Volts DC |
| Outputs | 16 |
| Output Types |
N.O. Relay Contact |
| Current/Output (120 VAC) | 1.5 amps |
| Current/Output (24VDC) | 1.2 amps |
| Backplane Current | 170-180 milliamps |
| Applications | Relay Contact Outputs (8 per Common) |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
