Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1747-SN |
|---|---|---|---|
| Type: | Remote I/O Scanner Module | Origin Of Country: | USA |
| Series: | SLC 500 | Scan I/O: | YES |
| High Light: | plc processor module,allen bradley plc cpu |
||

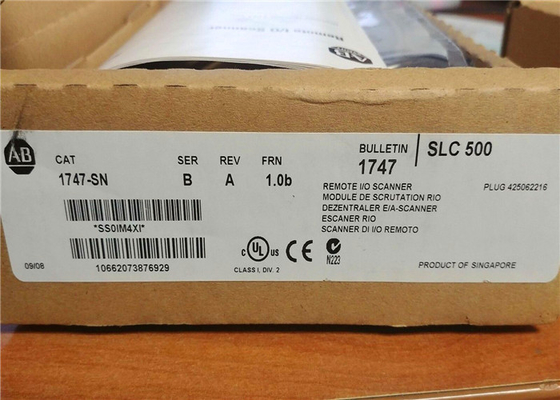

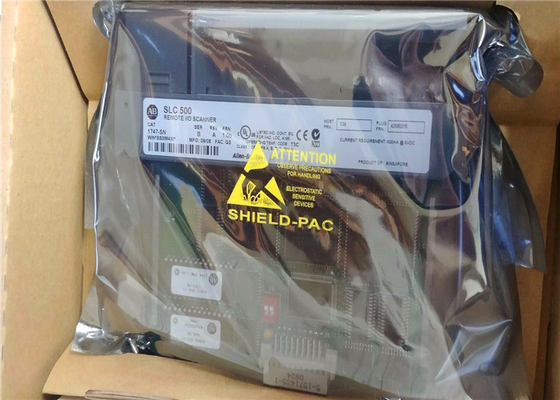

1747-SN (1747-SN) DeviceNet Remote I/O Scanner Module SLC 500
Quick Detials
ALLEN BRADLEY
1747-SN
1747SN
DISCONTINUED BY MANUFACTURER
I/O SCANNER MODULE
UNIVERSAL REMOTE
600MA
5VDC
FOR SLC 5/02 5/03 5/04 5/05 PROCESSORS
one year warranty
SPECIFICATIONS
The 1747-SN is a SLC 500 Remote I/O Scanner Module.
This Remote I/O Scanner Module has 1746 Backplane Communication and is compatible with the following processors: SLC 5/02, 5/03, 5/04, 5/05.
About 1747-SN
The 1747-SN SLC 500 Remote I/O Module by is a remote I/O scanner that provides standard communication between SLC processors and any remote 1746 I/O chassis and any other remotely-located compatible devices. It provides communication over a wide area and supports a remote communication cable with a length of up to 3050 meters (10,000 feet). The 1747-SN has a maximum connection capacity of up to 16 remotely-connected devices in its normal mode but it can support up to 32 devices in its complementary mode, and when operational, it has a backplane electrical rating of 600 mA at 5 Volts DC.
The 1747-SN uses the node’s extended capability to transfer information in the communication channel at a rate of 57.6 Kbaud through a cable length of 3048 meters (10,000 feet) and at a rate of 230.4 Kbaud through a maximum distance of 762 meters (2500 feet) cable using an 82-Ohm terminating resistor. Information is also transmitted with the node’s non-extended capability at rates of 57.6 Kbaud and 230.4 Kbaud through a cable distance of 3048 meters (10,000 feet) and 762 meters (2500 feet) using an 82-Ohm 1/2 Watt terminating resistor. It has four selectable baud rates and it uses 2 DIP switches (Switch 1 and 2) for the selection of baud rates. The 1747-SN’s operating temperature range is between 0 and 60 degrees Celsius at 5 to 95% humidity without condensation and it has a non-operational temperature between -40 degrees Celsius and 85 degrees Celsius.
Technical specifications:
| Manufacturer | Rockwell Automation |
| Brand | |
| Part Number/Catalog No. | 1747-SN |
| Series | SLC 500 |
| Module Type | Remote I/O Scanner Module |
| Scan I/O | Yes |
| Compatible Processors | SLC 5/02, 5/03, 5/04, 5/05 |
| Backplane Current (5 Volts) | 600 milliamps |
| Backplane Current (24 Volts) | 90 milliamps |
| Weight | 1 pound (0.45 kilograms) |
| Operating Temperature | 0 to 60 degrees Celsius |
| Chassis Module Slots | 30 |
| Communication | Ethernet, RS-232 |
| Backup Memory | Flash |
