Product Details:
Payment & Shipping Terms:
|
| Brand: | Schneider | Model: | 140EHC20200 |
|---|---|---|---|
| Range Of Product: | Modicon Quantum Automation Platform | Origin Of Country: | France |
| Input Resistance: | 10 KOhm Discrete Input | Counting Frequency: | 500000 Hz |
| High Light: | schneider electric modicon quantum,modicon tsx quantum |
||

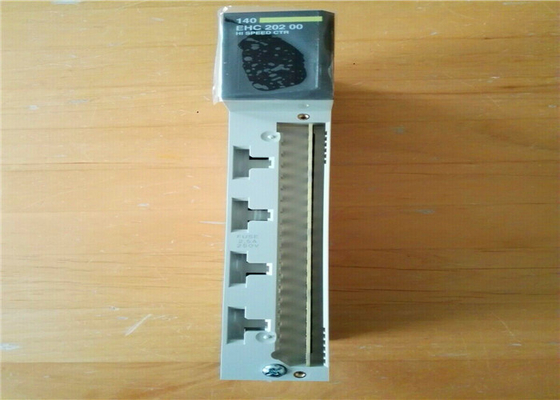

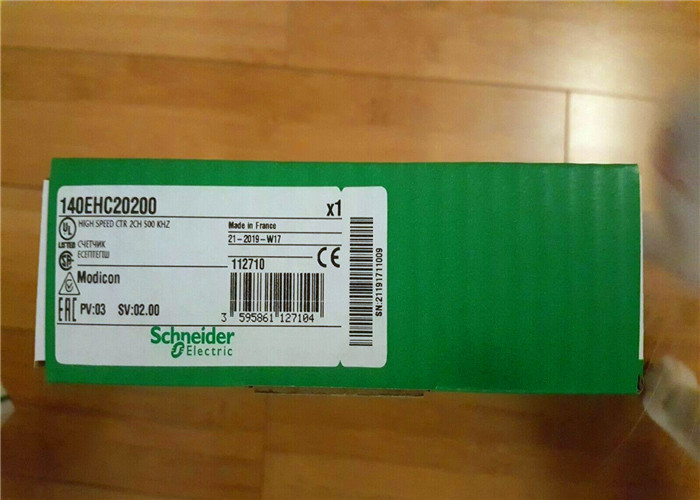

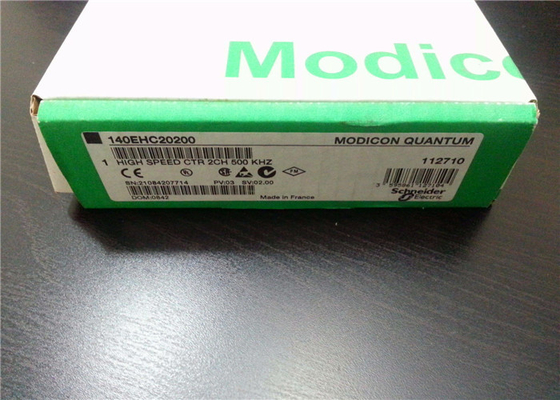

Modicon Schneider 140EHC20200 TSX Quantum High Speed Counter Used CSQ
Quick Details:
One Year Warranty
SPECIFICATION
|
Manufacturer |
Schneider Electric |
|
Series |
Modicon Quantum |
|
Module format |
Standard |
|
Product or component type |
High-speed counter module |
|
Number of channels |
2 |
|
Addressing requirement |
6 input words |
|
|
6 output words |
|
Data format |
65535 dec 16 bits |
|
|
2147483647 dec 32 bits |
|
Counting input type |
Incremental or quadrature |
|
Counting frequency |
500000 Hz |
|
Discrete input voltage |
< 30 V |
|
Operating mode |
Incremental or quadrature discrete input |
|
Input resistance |
10 kOhm discrete input |
|
Operating threshold |
3.5...5 V single ended mode 5 V DC at state off |
|
|
>= 1.8 V differential mode |
|
|
2...7 V single ended mode 12 V DC at state off |
|
|
13...24 V single ended mode 24 V DC at state on |
|
|
0 V single ended mode 12 V DC at state on |
|
|
0...2 V single ended mode 5 V DC at state on |
|
|
0...11 V single ended mode 24 V DC at state off |
|
Discrete output number |
4 |
|
Discrete output type |
Field Effect Transistor (FET) |
|
Discrete output voltage |
0.4 V switch on DC |
|
|
0 V switch off DC |
|
Load current |
0.5 A |
|
Leakage current |
<= 0.4 mA state off |
|
Voltage drop |
0.4 V state on |
|
Protection type |
36 V transorb discrete output |
|
Isolation between channels and bus |
1780 Vrms for 60 s |
|
Fault type |
Loss of output field power |
|
Output short-circuit protection |
Blown fuse 2.5 A |
|
Power dissipation |
4 + (0.4 x total module load current) |
|
Bus current requirement |
650 mA |
|
External power requirement |
19.2...30 V |
|
Rack type |
Distributed |
|
|
Local |
|
|
Remote |
|
Local signalling |
2 LED channel status |
|
Marking |
CE |
|
Current consumption |
<= 1050 mA 24 V DC external power supply |
MORE INFORMATION
DELIVERY
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from group stock
WARRANTY
All parts new are covered by Shenzhen Viyork 12 month warranty
RETURNS
No hassle returns policy
Dedicated customer support team
PAYMENT
Trade credit
We understand that credit is a necessary part of business and offer credit agreements on request, subject to status.
Payment options
We accept Bank transfers and the following methods of payment:
Western Union PayPal VISA
