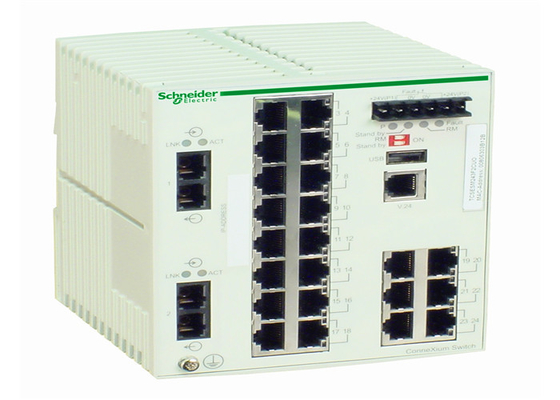

Schneider Electric TCSESM243F2CU0 Ethernet Tcp/Ip Connexium Managed Switch

Schneider Electric TCSESM243F2CU0 Ethernet Tcp/Ip Connexium Managed Switch
Schneider Electric TCSESM243F2CU0 Ethernet Tcp/Ip Connexium Managed Switch Schneider Electric TCSESM243F2CU0 Ethernet Tcp/Ip Connexium Managed Switch Schneider Electric TCSESM243F2CU0 Ethernet Tcp/Ip Connexium Managed Switch

Large Image :  Schneider Electric TCSESM243F2CU0 Ethernet Tcp/Ip Connexium Managed Switch Get Best Price

Product Details:

Place of Origin: France
Brand Name: Schneider
Certification: CE
Model Number: TCSESM243F2CU0

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: 1-500USD
Packaging Details: original box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 30 PCS/ PER Month
Detailed Product Description
Brand: Schneider Model: TCSESM243F2CU0
Range Of Product: Modicon Quantum Automation Platform Origin Of Country: France
Attenuation: 16 DB 9/125 µm) Power Consumption In W: 7.7 W
High Light:

schneider electric modicon quantum

,

modicon tsx quantum

Schneider electric TCSESM243F2CU0 ethernet tcp/ip connexium managed switch

Quick Details:



  • SCHNEIDER ELECTRIC

  • SQUARE D

  • TCSESM243F2CU0

  • CONNEXIUM MANAGED SWITCH 22TX/2FX-MM

  • One Year warrabty



SPECIFICATION

range of product

ConneXium



product or component type

Ethernet TCP/IP managed switch



concept

Transparent Ready



communication port protocol

Ethernet TCP/IP



port Ethernet

100BASE-FX - 2 fiber optic
10BASE-T/100BASE-TX - 22 copper cable



maximum number of switches in cascade

Unlimited



Complementary

integrated connection type

Duplex SC fiber optic
Shielded RJ45 copper cable



transmission support medium

Twisted shielded pairs cable CAT 5E copper cable
Multimode optical fiber fiber optic



maximum cable distance between devices

328.08 ft (100 m) copper cable



attenuation

11 dB 62.2/125 µm)
8 dB 50/125 µm)



Ethernet service

Rapid Scanning Tree Protocol (RSTP)
IGMP Snooping
Priority port
Configuration via web server
SMTP V3
Secure port
FDR
Data stream control
SNTP client
VLAN
Multicast filtering



maximum number of switches in a ring

50



redundancy

Redundant single ring
Ring coupling
Redundant power supplies



[Us] rated supply voltage

24 V



supply voltage limits

9.6…60 V DC SELV
18…30 V AC SELV



power consumption in W

14.5 W



electrical connection

Removable connector 6 ways power supply



mounting support

35 mm symmetrical DIN rail



marking

CE



local signalling

P1 P2 power supplies 2 LEDs
Fault 1 LED
Ring manager 1 LED
Stand-by 1 LED
Copper port activity 1 LED per channel
Copper port status 1 LED per channel



alarm function

Data link status
Switch fault
Redundancy ring fault
Power supply fault



Ethernet cabling system

TF switches



width

4.37 in (111 mm)



height

5.16 in (131 mm)



depth

4.37 in (111 mm)



net weight

1.34 lb(US) (0.61 kg)



Environment

ambient air temperature for operation

32…140 °F (0…60 °C)



relative humidity

10…95 % without condensation



IP degree of protection

IP20



standards

UL 1604
UL 508
CSA C22.2 No 213 Class I Division 2
CSA C22.2 No 142
CUL 60950



product certifications

GL
C-Tick



Ordering and shipping details

Category

18225 - PLC NTWRK HRDWR & PROWORX SOFTWARE



Discount Schedule

PC41



GTIN

00785901474456



Package weight(Lbs)

0.93 kg (2.05 lb(US))



Returnability

No



Country of origin

DE



Offer Sustainability

Sustainable offer status

Green Premium product



California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov



REACh Regulation

REACh Declaration



EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration



Toxic heavy metal free

Yes



Mercury free

Yes



RoHS exemption information

Yes



China RoHS Regulation

China RoHS declaration



Environmental Disclosure

Product Environmental Profile



Circularity Profile

No need of specific recycling operations



WEEE

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
