Product Details:
Payment & Shipping Terms:
|
Brand: | Schneider | Model: | 140NOE77100 |
---|---|---|---|
Range Of Product: | Modicon Quantum Automation Platform | Origin Of Country: | France |
Web Server: | Class B20 | Concept: | Transparent Ready |
High Light: | modicon tsx quantum,plc control module |

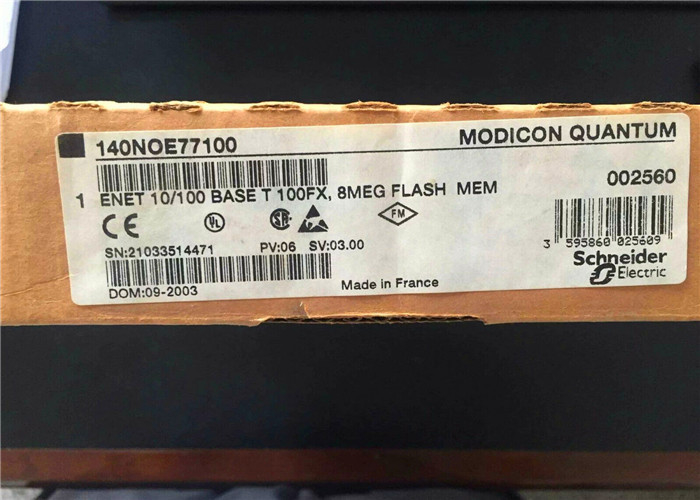

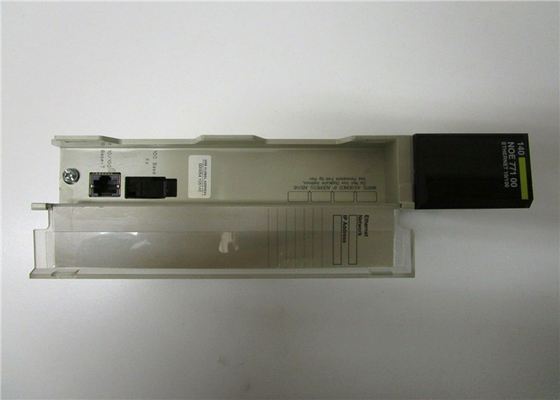

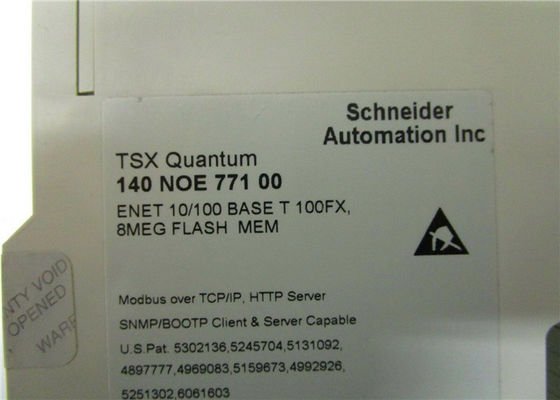

Schneider TSX Quantum Modicon 140 NOE771 00 Ethernet ENET PV:04 RL:11 SV:02.10
Quick Details:
SCHNEIDER ELECTRIC
MODICON
140-NOE-771-00
140NOE77100
DISCONTINUED BY MANUFACTURER
SCANNER MODULE
ETHERNET
MODBUS 10/100 BASE T
100FX 8M FLASH MEM TCP/IP
HTTP SERVER
One Year warrabty
SPECIFICATION
Manufacturer |
Schneider Electric |
Series |
Modicon Quantum |
Module format |
Standard |
Product or component type |
Ethernet network TCP/IP module |
Concept |
Transparent Ready |
Web server |
Class B20 |
Web services |
Data Editor (via PC terminal) |
|
Rack viewer |
|
Diagnostics via predefined web pages |
Communication service |
Modbus TCP messaging |
|
I/O scanning |
Communication port protocol |
Ethernet Modbus TCP/IP |
Physical interface |
MT/RJ 100BASE-FX fiber optic |
|
RJ45 10BASE-T/100BASE-TX twisted pair |
Transmission rate |
10/100 Mbit/s |
Redundancy |
Yes hot standby redundant architecture |
Supply |
Via the power supply of the rack |
Marking |
CE |
Local signalling |
1 LED 10 Mbps or 100 Mbps data rate (10 MB/100 MB) |
|
1 LED collision detection (Coll) |
|
1 LED download mode (Kernel) |
|
1 LED Ethernet module fault (Fault) |
|
1 LED Ethernet network status (RUN) |
|
1 LED full-duplex mode (Fduplex) |
|
1 LED module ready (Ready) |
|
1 LED network active (Link) |
|
1 LED rack operational (Active) |
|
1 LED transmission/reception activity (TxAct/RxAct) |
Current consumption |
750 mA 5 V DC |
