Product Details:
Payment & Shipping Terms:
|
| Brand: | Schneider | Model: | 140DAI55300 |
|---|---|---|---|
| Range Of Product: | Modicon Quantum Automation Platform | Origin Of Country: | France |
| Discrete Input Voltage: | 115 V AC | Network Frequency Limits: | 47…63 Hz |
| High Light: | schneider electric modicon quantum,plc control module |
||

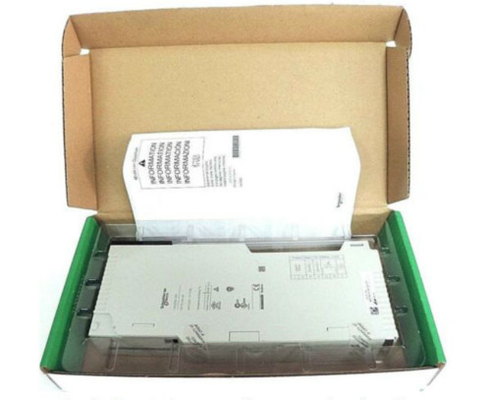

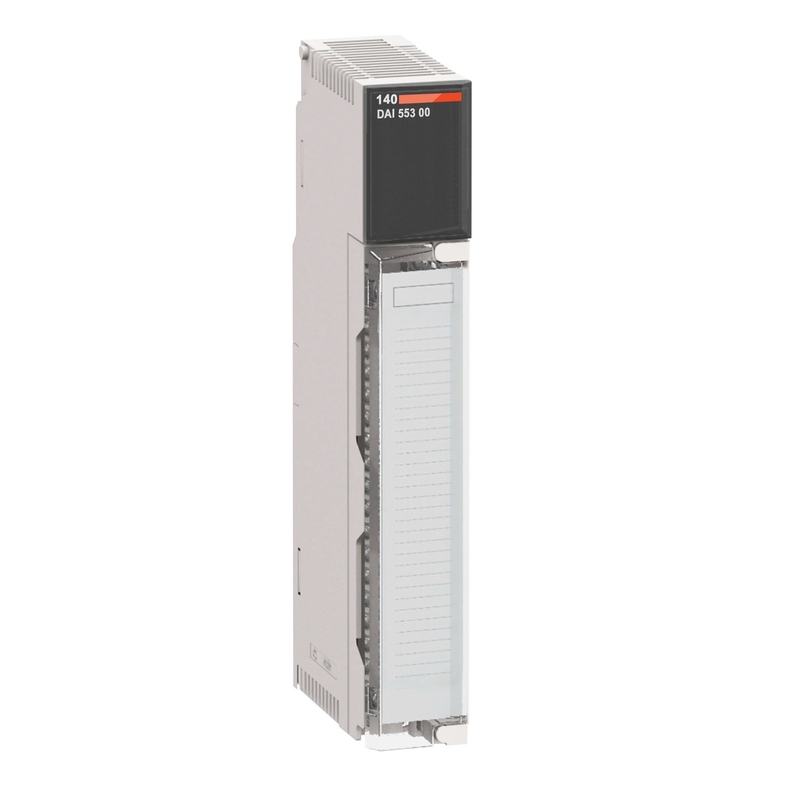

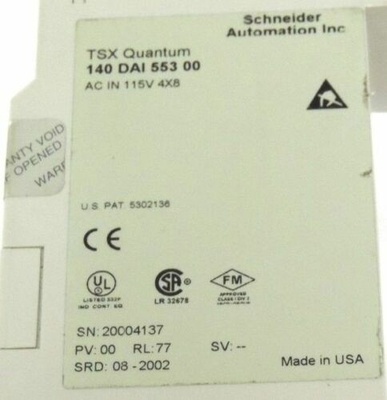

SCHNEIDER AUTOMATION TSX QUANTUM 140DAI55300 AC IN 115V 4X8, 140 DAI 553 00
Quick Details:
SCHNEIDER ELECTRIC
MODICON
140-DAI-553-00
140DAI55300
INPUT MODULE
DISCRETE
32POINT
115VAC
One Year warrabty
SPECIFICATION
|
Manufacturer |
Schneider Electric |
|
Series |
Modicon Quantum |
|
Module format |
Standard |
|
Product or component type |
VAC discrete input modules |
|
Software name |
Concept |
|
|
ProWORX 32 |
|
|
Unity Pro |
|
Discrete input number |
32 |
|
Group of channels |
4 |
|
Addressing requirement |
2 input words |
|
Discrete input voltage |
115 V AC |
|
Input current |
<= 13.2 mA 47...53 Hz |
|
|
<= 11.1 mA 57...63 Hz |
|
Voltage state1 guaranteed |
85...132 V AC at 47...53 Hz |
|
|
79...132 V AC at 57...63 Hz |
|
Voltage state 0 guaranteed |
0...20 V AC at 47...53 Hz |
|
|
0...20 V AC at 57...63 Hz |
|
Input impedance |
14400 Ohm capacitive at 47...53 Hz |
|
|
12000 Ohm capacitive at 57...63 Hz |
|
Network frequency limits |
47...63 Hz |
|
Leakage current |
<= 2.1 mA |
|
Absolute maximum input |
200 V 1 cycle |
|
|
156 V 10 s |
|
|
132 V continuous |
|
Response time |
7.3...12.3 ms On-Off |
|
|
4.9...0.75 ms x line cycle Off-On |
|
Isolation between group |
1780 Vrms for 1 minute |
|
Isolation between group and bus |
1780 Vrms for 1 minute |
|
Bus current requirement |
250 mA |
|
Power dissipation in W |
<= 10.9 W |
|
Local signalling |
32 LEDs green input status |
|
|
1 LED red external fault detected (F) |
|
|
1 LED green bus communication is present (Active) |
|
Marking |
CE |
