Brand: | Schneider | Model: | 140DDO35301 |
---|---|---|---|
Range Of Product: | Modicon Quantum Automation Platform | Origin Of Country: | France |
Addressing Requirement: | 2 Output Words | Discrete Output Voltage: | 24 V DC |
High Light: | schneider electric modicon quantum,plc control module |

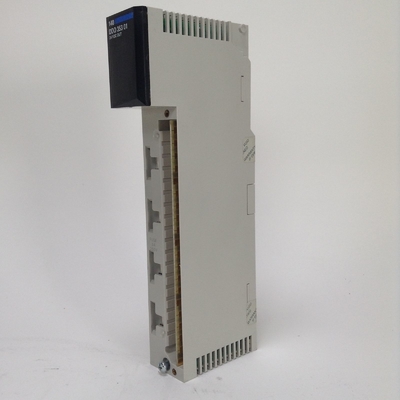

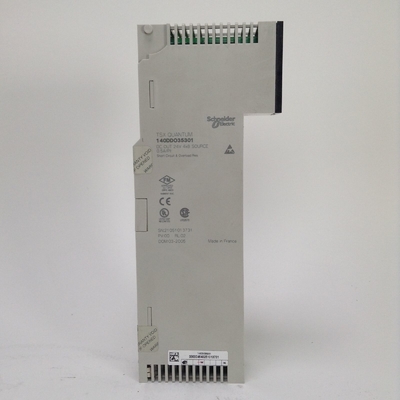

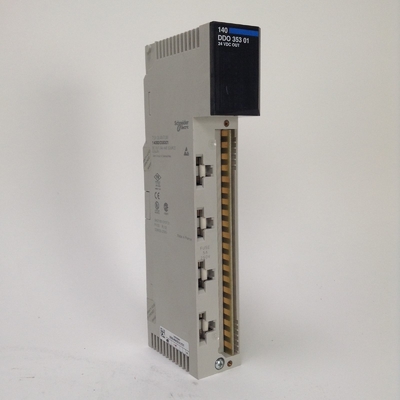

Schneider Automation Telemecanique Modicon Quantum DDO, DDO 353 01,140DDO35301
Quick Details:
SCHNEIDER ELECTRIC
MODICON
140-DDO-353-01
140DDO35301
OUTPUT MODULE
DC OUT 24VDC
4X8 SOURCE
One Year warrabty
SPECIFICATION
Manufacturer |
Schneider Electric |
Series |
Modicon Quantum |
Module format |
Standard |
Product or component type |
Dc discrete output module |
Discrete output number |
32 |
Group of channels |
4 groups of 8 |
Discrete output logic |
Positive logic (source) |
Addressing requirement |
2 output words |
Discrete output voltage |
24 V DC |
Output voltage limits |
19.2...30 V |
Absolute maximum output |
50 V for 1 s decaying pulse |
Voltage drop |
0.4 V 0.5 A |
Maximum load current |
16 A per module |
|
16 A per module |
|
4 A per group |
|
4 A per group |
Surge current |
<= 2 A |
|
<= 2 A |
Response time |
<= 0.1 ms at state 1 to state 0 |
|
<= 1 ms at state 0 to state 1 |
Leakage current |
<= 1 mA 24 V |
Load inductance |
Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) |
|
Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) |
Fault indication |
Loss of field power |
|
Blown fuse |
Associated fuse rating |
3 A each point |
|
3 A each point |
|
5 A per group |
|
5 A per group |
Isolation between channels and bus |
1780 Vrms DC for 1 minute |
Isolation between group |
500 Vrms DC for 1 minute |
Protection type |
Internal output protection by 5 A fuse per group |
Power dissipation |
5 W |
Marking |
CE |
Local signalling |
1 LED green bus communication is present (Active) |
|
1 LED red external fault detected (F) |
|
32 LEDs green input status |
Bus current requirement |
<= 330 mA |
|
<= 330 mA |
