Product Details:
Payment & Shipping Terms:
|
Brand: | Schneider | Model: | 140DDO35310 |
---|---|---|---|
Range Of Product: | Modicon Quantum Automation Platform | Origin Of Country: | France |
Addressing Requirement: | 2 Output Words | Output Voltage Limits: | 19.2...30 V |
High Light: | schneider electric modicon quantum,plc control module |

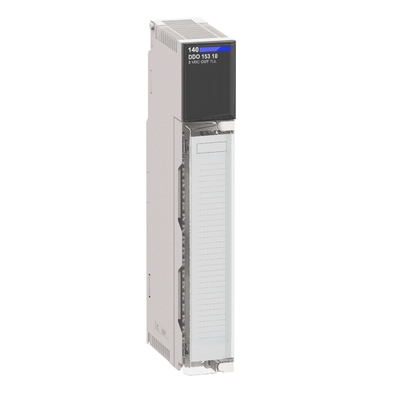

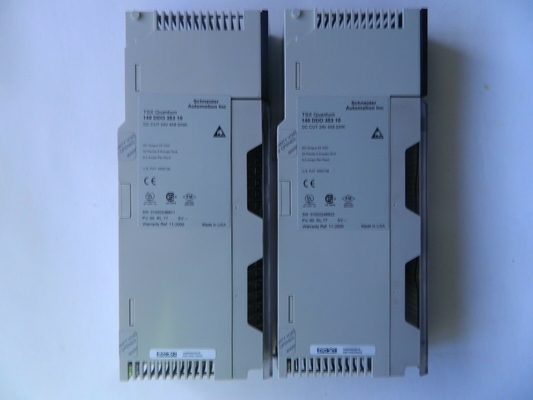

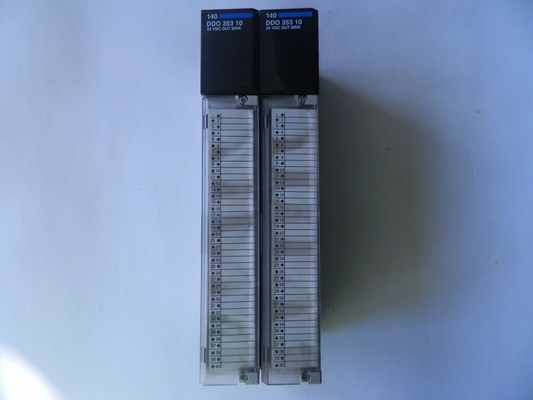

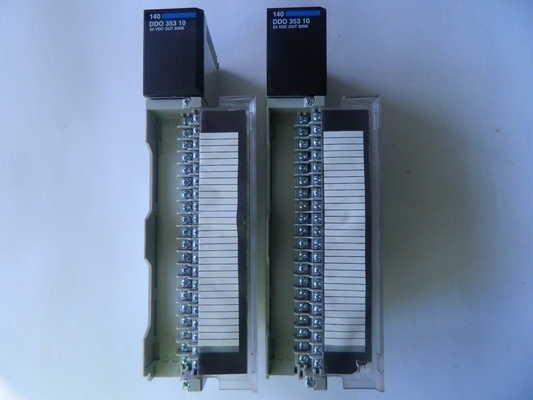

NIB SCHNEIDER MODICON 140DDO35310 DC OUT 24V 4X8 SINK MODULE 140-DDO-353-10
Quick Details:
SCHNEIDER ELECTRIC
MODICON
140-DDO-353-10
140DDO35310
OUTPUT MODULE
QUANTUM S
4X8
32POINT
OUTPUT 0.5AMP / 24VDC
One Year warrabty
SPECIFICATION
Manufacturer |
Schneider Electric |
Series |
Modicon Quantum |
Module format |
Standard |
Product or component type |
Dc discrete output module |
Discrete output number |
32 |
Group of channels |
4 groups of 8 |
Discrete output logic |
Positive logic (source) |
Addressing requirement |
2 output words |
Discrete output voltage |
24 V DC |
Output voltage limits |
19.2...30 V |
Absolute maximum output |
50 V for 1 s decaying pulse |
Voltage drop |
0.4 V 0.5 A |
Maximum load current |
4 A per group |
|
16 A per module |
Surge current |
<= 5 A for 1 ms |
Response time |
<= 1 ms at state 1 to state 0 |
|
<= 1 ms at state 0 to state 1 |
Leakage current |
0.4 mA 30 V |
Load inductance |
Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) |
Tungsten load |
12 W 24 V |
Fault indication |
Blown fuse |
|
Loss of field power |
Associated fuse rating |
5 A per group |
|
3 A each point |
Isolation between channels and bus |
1780 Vrms DC for 1 minute |
Isolation between group |
500 Vrms DC for 1 minute |
Protection type |
Internal output protection by 5 A fuse per group |
Power dissipation |
2.0 W + (0.4 V x total load current) |
Marking |
CE |
Local signalling |
32 LEDs green input status |
|
1 LED red external fault detected (F) |
|
1 LED green bus communication is present (Active) |
Bus current requirement |
<= 330 mA |
