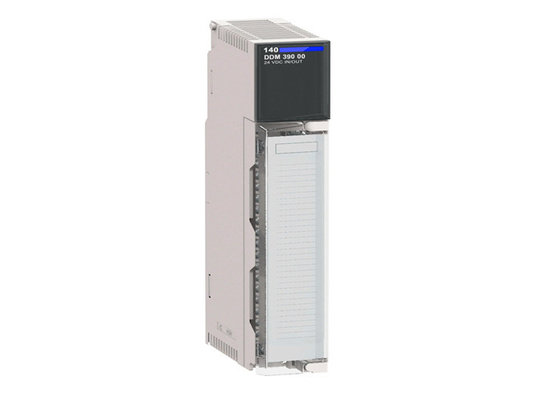

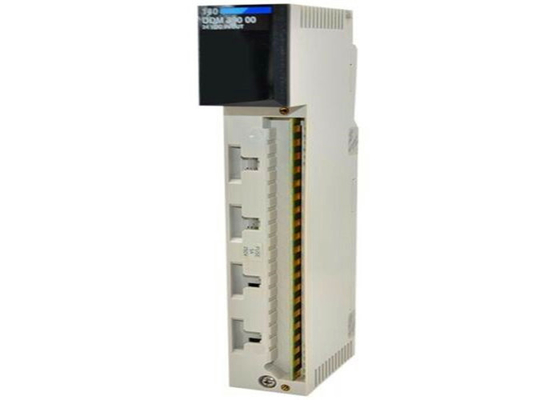

140DDM39000 New Factory Sealed Modicon DC Input Output Module 140-DDM-390-00

140DDM39000 New Factory Sealed Modicon DC Input Output Module 140-DDM-390-00
140DDM39000 New Factory Sealed Modicon DC Input Output Module 140-DDM-390-00 140DDM39000 New Factory Sealed Modicon DC Input Output Module 140-DDM-390-00 140DDM39000 New Factory Sealed Modicon DC Input Output Module 140-DDM-390-00 140DDM39000 New Factory Sealed Modicon DC Input Output Module 140-DDM-390-00

Large Image :  140DDM39000 New Factory Sealed Modicon DC Input Output Module 140-DDM-390-00 Get Best Price

Product Details:

Place of Origin: France
Brand Name: Schneider
Certification: CE
Model Number: 140DDM39000

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: 1-500USD
Packaging Details: original box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 30 PCS/ PER Month
Detailed Product Description
Brand: Schneider Model: 140DDM39000
Range Of Product: Modicon Quantum Automation Platform Origin Of Country: France
Absolute Maximum Output: 5 A During 500 µs Per Point Maximum Leakage Current: 0.4 MA 30 V DC
High Light:

schneider electric modicon quantum

,

plc control module

140DDM39000 New Factory Sealed Modicon DC Input Output Module 140-DDM-390-00

Quick Details:



  • SCHNEIDER ELECTRIC

  • MODICON

  • 140DDM39000

  • TSX QUANTUM

  • INPUT / OUTPUT MODULE

  • 24 VDC

  • 16/8 SINK / SOURE

  • One Year warrabty



SPECIFICATION

Manufacturer

Schneider Electric

Series

Modicon Quantum

Module format

Standard

Product or component type

Mixed discrete I/O module

Discrete I/O number

24

Discrete input number

16 2 groups of 8

Discrete input logic

Sink

Addressing requirement

0.5 output word



1 input word

Network frequency limits

47...63 Hz

Discrete input voltage

24 V DC

Input voltage limits

<= 1 V during 10 s



<= 1 V during one cycle



30 V



56 V during 1.3 ms

Voltage state 0 guaranteed

-3...5 V

Voltage state 1 guaranteed

15...30 V

Current state 0 guaranteed

<= 0.5 mA

Current state 1 guaranteed

>= 2 mA

Input impedance

2500 Ohm

Discrete output number

8 2 groups of 4

Discrete output type

Solid state

Discrete output logic

Sink

Discrete output voltage

24 V

Output voltage limits

56 V DC during 1.3 ms



19.2...30 V DC typical

Maximum load current

<= 4 A per module



<= 2 A per group



<= 0.5 A per point

Voltage drop

0.4 V 0.5 A

Absolute maximum output

5 A during 500 µs per point

Load inductance

500 mH 4 Hz

Load capacitance

<= 50 µF

Leakage current

0.4 mA 30 V DC

Response time on output

<= 1 ms at state 1 to state 0



<= 1 ms at state 0 to state 1

Protection type

Internal output protection by 5 A fuse per group



On input by resistor limited



On output by transient voltage suppression

Associated fuse rating

5 A per group

Isolation between group

500 Vrms for 1 minute

Isolation between group and bus

1780 Vrms for 1 minute

Fault indication

Blown fuse on output



Loss of field power on output

Power dissipation

1.75 W + (0.36 x input point on) + (1.1 total output load current)

Local signalling

2 LEDs red fault detected on the output point



2 LEDs red fault detected on the input point



2 LEDs green output is turned on



1 LED red no voltage in output and input (F)



1 LED green bus communication is present (Active)

Marking

CE


MORE INFORMATION
DELIVERY

Logistic partners UPS, FedEx and DHL
International delivery available

Same day dispatch from group stock

WARRANTY

All parts new are covered by Shenzhen Viyork 12 month warranty

RETURNS

No hassle returns policy

Dedicated customer support team

PAYMENT

Trade credit

We understand that credit is a necessary part of business and offer credit agreements on request, subject to status.

Payment options

We accept Bank transfers and the following methods of payment:

Western Union PayPal VISA

Pls contact us:
Company: Shenzhen Viyork Technology CO.,LTD.
Cotact:Miss Liu
Moblie/WhatsApp: 0086-13826534820
Email: shenzhenviyork@163.com
Skype:live:.cid.ba9401e01ca235c2

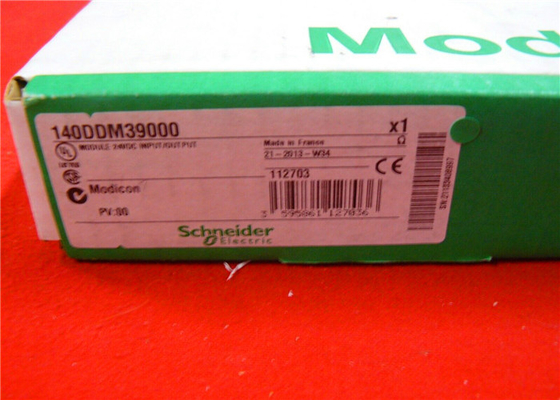

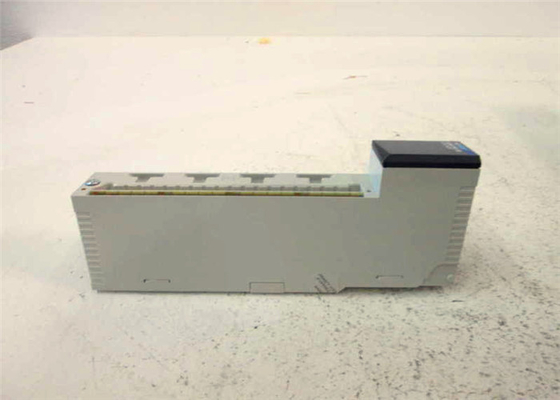

140DDM39000 New Factory Sealed Modicon DC Input Output Module 140-DDM-390-00 0
