Brand: | Schneider | Model: | 140MSC10100 |
---|---|---|---|
Range Of Product: | Modicon Quantum Automation Platform | Origin Of Country: | France |
Resistance To Electromagnetic Fields: | 9.14 V/m (10 V/m) 80...1000 MHz IEC 801-3 | Ambient Air Temperature For Operation: | 32…140 °F (0…60 °C) |
High Light: | schneider electric modicon quantum,plc control module |

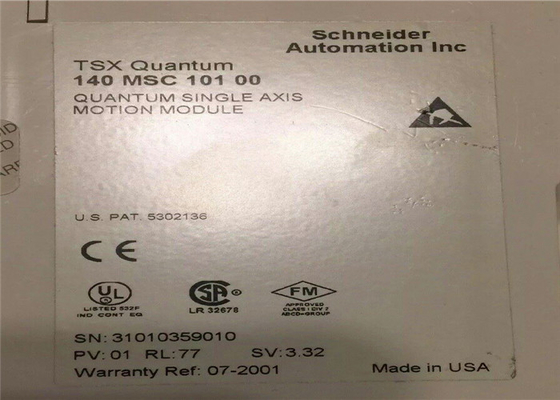

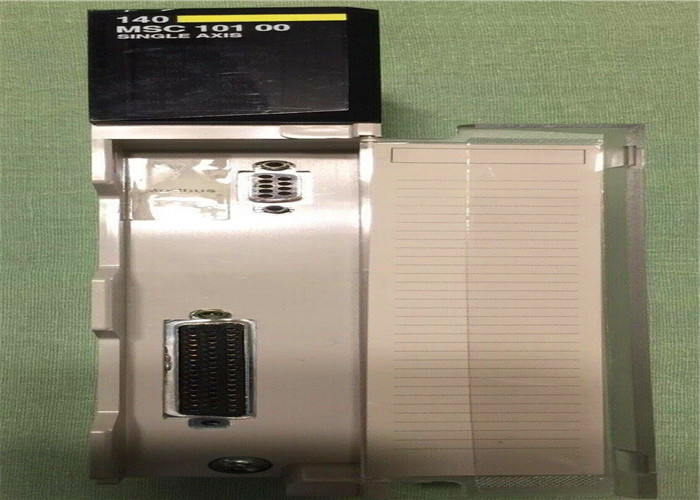

SCHNEIDER TSX QUANTUM 140MSC10100 SINGLE AXIS MOTION MODULE140MSC10100
Quick Details:
SCHNEIDER ELECTRIC
MODICON
140-MSC-101-00
140MSC10100
DISCONTINUED BY MANUFACTURER
MOTION CONTROLLER MODULE ENC/RES 1AXIS
One Year warrabty
SPECIFICATION
Manufacturer |
Schneider Electric |
Series |
Modicon Quantum |
Module format |
Standard |
Product or component type |
Single axis motion module |
Encoder type |
Differential |
Number of axis |
1 real |
|
1 remote |
Axis function |
Automatic control of linear, rotary, or continuous axes |
|
Synchronization of master/slave speed and position |
Axis positioning range |
4294967296 points |
Axis positioning range units |
Inches |
|
Mm |
|
Other units |
Acquisition speed |
1...4294967296 points |
Axis speed units |
Counts/S |
|
Inches/S |
|
Mm/S |
|
Rpm |
Axis update |
1 ms position loop |
|
0.5 ms speed loop |
Maximum system accuracy |
0.5 arc/min encoder dependant |
Axis motion |
28 traversing programs |
|
650 flash memory commands |
|
Absolute movement |
|
Continuous movement |
|
Homing movement |
|
Relative movement |
Checks |
Encoder interface |
|
Logical stops |
|
Loop position control |
|
Point window |
|
Position captures (stops) |
Register words |
3 input words |
|
4 output words |
Encoder voltage |
5 V +/- 20 % |
Encoder impedance |
500 Ohm |
Incremental encoder frequency x1 |
<= 500 kHz |
Incremental encoder frequency x 4 |
<= 2000 kHz |
Analogue output type |
Bipolar output +/- 10...24 V 11 bits + sign servo interface |
Discrete output type |
Drive enable output <= 30 V |
|
Auxiliary output 3 24 V 150 mA |
|
Drive enable output 24 V 500 mA servo interface |
Discrete input type |
Auxiliary input 7 24 V |
|
Drive fault input 5 V TTL servo interface |
|
Dry contact OT input |
Analogue input range |
+/- 10...24 V 30000 Ohm auxiliary input |
Analogue output range |
+/- 10...24 V 11 bits + sign 0.003 A auxiliary output |
Position capture time |
250 ms high speed input |
Impulse duration |
25 ms high speed input |
Time between capture |
>= 20 ms high speed input |
Communication port protocol |
Modbus Serial line slave RS232D 300..9600 bit/s |
Local signalling |
1 digital indicator Modbus plus status |
|
3 LEDs output status |
|
7 LEDs input status |
Electrical connection |
1 connector SUB-D 50 connection to servo drive |
|
1 connector SUB-D 9 RS232D Modbus link |
Current consumption |
1000 mA 5 V DC rack |
|
500 mA 24 V DC external power supply |
