Product Details:
Payment & Shipping Terms:
|
| Brand: | Schneider | Model: | 140AAI33010 |
|---|---|---|---|
| Range Of Product: | Modicon Quantum Automation Platform | Origin Of Country: | France |
| Absolute Maximum Input: | 25 MA Internally Limited | Input Impedance: | 100 Ohm +/- 0.1 % |
| High Light: | schneider electric modicon quantum,plc control module |
||

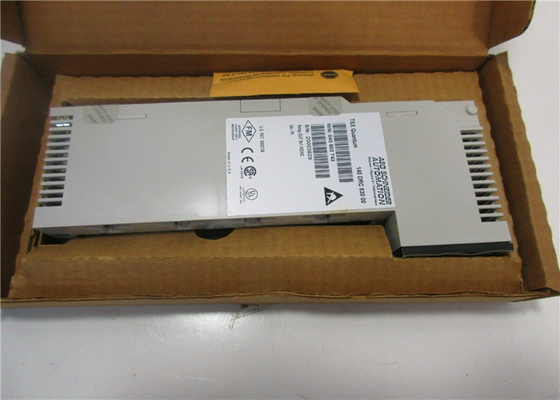

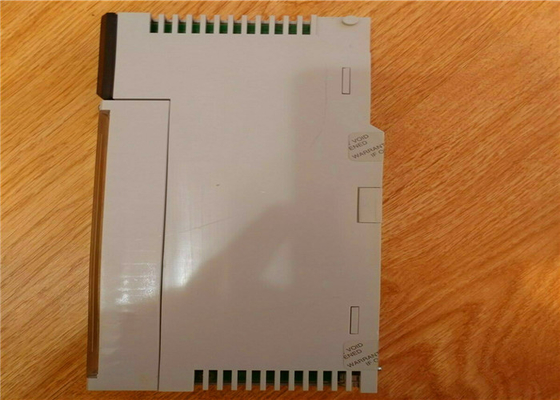

NEW SCHNEIDER AUTOMATION 140AAI33010 OUTPUT MODULE 140AAI33010
Quick Details:
SCHNEIDER ELECTRIC
MODICON
140-AAI-330-10
140AAI33010
OUTPUT MODULE
DISCRETE
8 POINT
5 AMP
RELAY NO/NC
One Year warrabty
SPECIFICATION
|
range of product |
Modicon Quantum automation platform |
|
|---|---|---|
|
product or component type |
Intrinsically safe current input module |
|
|
software designation |
Concept V2.2 and above |
|
|
type of filter |
Single low pass input filter -3 dB 15 Hz +/- 20 % |
|
|
product destination |
In conjunction with products for zone 20, 21 or 22 |
|
|---|---|---|
|
analogue input number |
8 |
|
|
analogue input range |
0...20 mA |
|
|
analogue input resolution |
0...16000 counts 4...20 mA |
|
|
absolute maximum input |
25 mA internally limited |
|
|
input impedance |
100 Ohm +/- 0.1 % |
|
|
absolute accuracy error |
+/- 0.05 % typical of full scale 77 °F (25 °C) |
|
|
accuracy drift according to temperature |
+/- 0.0025 % typical of full scale/°C |
|
|
linearity error |
0.003 % of full scale |
|
|
common mode rejection |
> 100 dB 50/60 Hz |
|
|
update time |
750 ms |
|
|
isolation between channels and bus |
2500 V for 1 minute DC |
|
|
fault type |
Broken wire 4...20 mA |
|
|
power dissipation in W |
7.5 W |
|
|
hot swapping fallback |
Not allowed per intrinsic safety standards |
|
|
protection type |
Internal fuse |
|
|
marking |
CE |
|
|
bus current requirement |
1500 mA |
|
|
module format |
Standard |
|
|
net weight |
0.66 lb(US) (0.3 kg) |
|
|
standards |
Directive ATEX 94/9/EC |
|
|---|---|---|
|
dust zone |
Outside zone |
|
|
product certifications |
GOST |
|
|
resistance to electrostatic discharge |
4 kV contact IEC 801-2 |
|
|
resistance to electromagnetic fields |
9.14 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
|
|
ambient air temperature for operation |
32…140 °F (0…60 °C) |
|
|
ambient air temperature for storage |
-40…185 °F (-40…85 °C) |
|
|
relative humidity |
95 % without condensation |
|
|
operating altitude |
<= 16404.2 ft (5000 m) |
|
|
Category |
18155-QUANTUM I/O & POWER SUPPLIES |
|
|---|---|---|
|
Discount Schedule |
PC21 |
|
|
GTIN |
00785901150206 |
|
|
Package weight(Lbs) |
1.75 lb(US) (0.795 kg) |
|
|
Returnability |
No |
|
|
Country of origin |
US |
