Product Details:
Payment & Shipping Terms:
|
| Brand: | Schneider | Model: | 140NRP95400 |
|---|---|---|---|
| Range Of Product: | Modicon Quantum Automation Platform | Origin Of Country: | France |
| Net Weight: | 1.22 Lb(US) (0.554 Kg) | ||
| High Light: | schneider electric modicon quantum,plc control module |
||

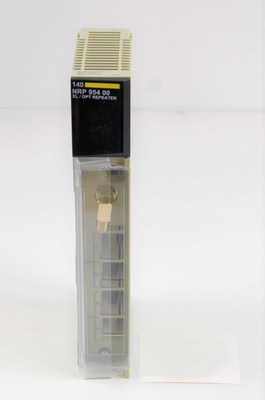

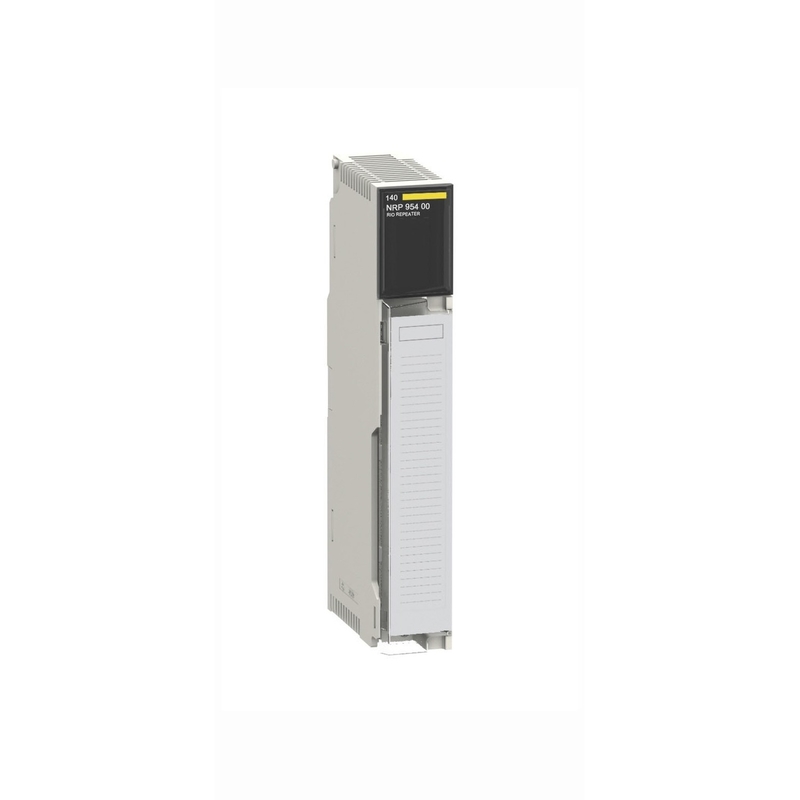

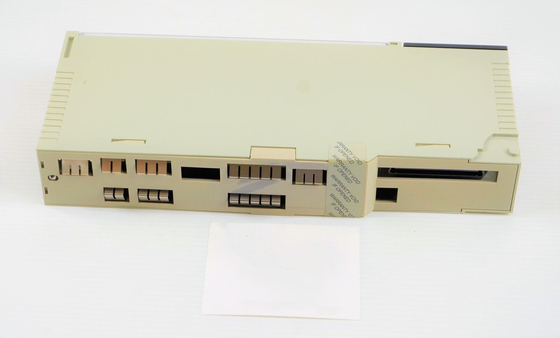

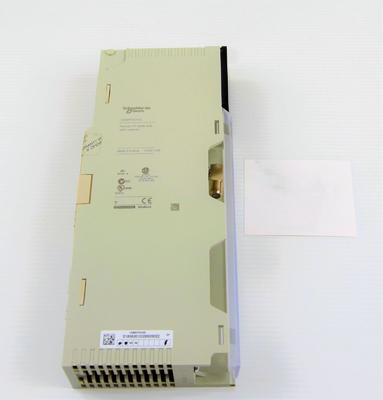

140NRP95400 Brand New Modicon Remote I/O Fiber Optic Repeater 140-NRP-954-00
Quick Details:
CHNEIDER ELECTRIC
MODICON
140NRP95400
MODULE
REMOTE I/O
S908
FIBER OPTIC REPEATER
One Year warrabty
SPECIFICATION
|
range of product |
Modicon Quantum automation platform |
|
|---|---|---|
|
product or component type |
Fibre optic repeater |
|
|
optic fiber type |
Multi mode |
|
|
bus current requirement |
700 mA |
|
|---|---|---|
|
power dissipation in W |
5 W |
|
|
inrush current |
1 A 5 V DC |
|
|
number of port |
2 fiber optic ST |
|
|
local signalling |
1 LED green RDY module status |
|
|
wavelength |
0.000032284 in (820 nm) |
|
|
optic distance between 2 transceivers |
6561.68 ft (2000 m) 50/125 µm)3.5 dBm |
|
|
attenuation |
-20…-13 dB 50/125 µm) |
|
|
rise/fall time |
20 ns |
|
|
receiver sensitivity |
- 30 dBm |
|
|
dynamic range |
20 dB |
|
|
detected silence |
-36 dBm |
|
|
marking |
CE |
|
|
material |
PC (polycarbonate) |
|
|
AWG gauge |
AWG 14...AWG 1 |
|
|
width |
1.59 in (40.34 mm) |
|
|
height |
9.84 in (250 mm) |
|
|
depth |
4.09 in (103.85 mm) |
|
|
net weight |
1.22 lb(US) (0.554 kg) |
|
|
ambient air temperature for operation |
32…140 °F (0…60 °C) |
|
|---|---|---|
|
ambient air temperature for storage |
-40…185 °F (-40…85 °C) |
|
|
relative humidity |
0…95 % |
|
|
operating altitude |
0...6561.68 ft (0...2000 m) |
|
|
standards |
CSA C22.2 No 142 |
|
|
product certifications |
TÜV |
|
|
Category |
18155 - QUANTUM I/O & POWER SUPPLIES |
|
|---|---|---|
|
Discount Schedule |
PC21 |
|
|
GTIN |
00785901358206 |
|
|
Package weight(Lbs) |
0.59 kg (1.31 lb(US)) |
|
|
Returnability |
Yes |
|
|
Country of origin |
FR |
|
|
Sustainable offer status |
Green Premium product |
|
|---|---|---|
|
California proposition 65 |
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
|
|
REACh Regulation |
|
|
|
EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
|
|
Mercury free |
Yes |
|
|
RoHS exemption information |
|
|
|
China RoHS Regulation |
|
|
|
Environmental Disclosure |
|
|
|
Circularity Profile |
|
|
|
WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
