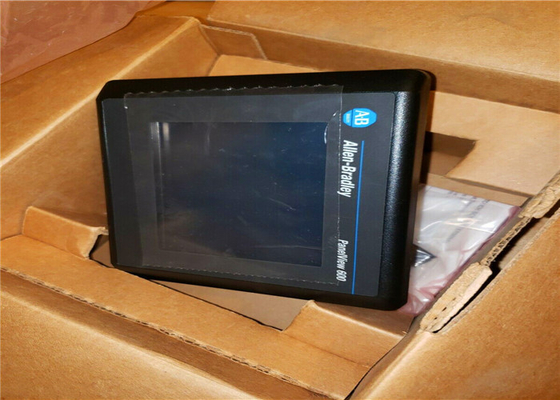

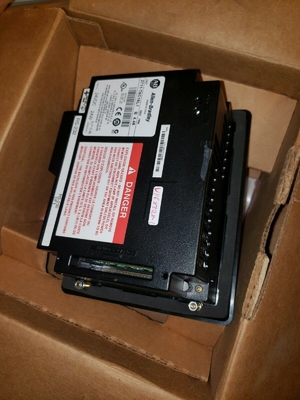

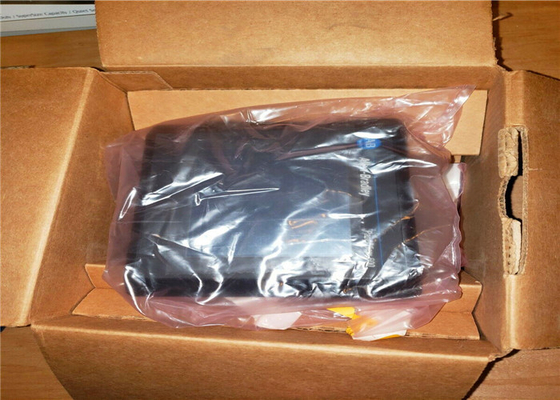

Allen Bradley 2711-T6C16L1 /B HMI Touch Screen 4.46 PanelView 600 Color Touch RS232 DF1 WRNTY

Allen Bradley 2711-T6C16L1 /B HMI Touch Screen 4.46 PanelView 600 Color Touch RS232 DF1 WRNTY

Quick Detials

• ALLEN BRADLEY
• 2711-T6C16L1
• 2711T6C16L1
• OPERATOR INTERFACE
• PANELVIEW 600 COLOR TERMINAL 6-INCH
• TOUCHSCREEN
• RS-232 (DF1) COMMUNICATION & RS-232 PRINTER PORT
• DC POWER
• COLOR
• 6 INCH
• 24 VDC

• one year warranty

Description:

RS-232 (DF1) Communication and RS-232 Printer/Download Port Touchscreen 6 in. Color Display 24V DC

About 2711-T6C16L1

The 2711-T6C16L1 terminal is another PanelView terminal made by /Rockwell Automation. The 2711-T6C16L1 terminal features a resistive touchscreen and 5-inch color display with a convenient flat panel design. The terminal is very popular because of its passive matrix display with a CCFL (cold-cathode fluorescent lamps) replaceable backlight. The terminal has a resolution of 320 x 234 pixels and a display area of 4.54 x 3.4 inches. Besides, the touchscreen of the terminal occupies 128 touch cells in 16 columns x 8 rows that help to initiate the function of the displayed keys such as ON/OFF push buttons and function keys. The size of the touch cells is 20 x 29 pixels per cell. The estimated weight of this product is 1.0 kilograms or 2.3 Pounds and it has dimensions of 6.00 x 7.28 x 3.80 inches. The cut-out dimensions of the 2711-T6C16L1 terminal are 6.0 inches x 7.28 inches.

The high-performance 2711-T6C16L1 electrical terminal operates at a temperature range of 32 to 122 degrees Fahrenheit. The storage temperature range for the terminal is -13 to 158 degrees Fahrenheit. Other environmental specifications include 5 to 95% relative humidity at 32 to 104 degrees Fahrenheit. The heat dissipation is rated at 17 Watts and 577 BTU per hour. This high-performance terminal also has 2 G of operating vibration at up to 2,000 Hertz. The terminal is provided with DC power only. The power supply ratings are 18 to 32 Volts DC (24 Volts DC nominal) voltage and it has a maximum power consumption capacity of 1.4 Amps at 24 Volts DC and 34 Watts. The 2711-T6C16L1 terminal is protected by a NEMA Type 12/13 and 4x, IP65, or IP54 enclosure, and it weighs 4.4 Pounds. The fault status of the terminal indicates hardware or firmware faults. The device includes the terminal memory of 240 KB and with 170 KB of RAM as well. In addition, the device features communication ports for single as well as multiple communication formats. The RS-232 (DF1) port helps to connect with multiple controllers such as a PLC or MicroLogix controller and SLC controller, which is an point-to-point DF1 network connection. The DF1 is an exclusive master and slave protocol that helps to transfer data or information over a serial data communications system.

Technical specifications:
