Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 2711P-B10C4D9 |
|---|---|---|---|
| Type: | Touch Screen | Origin Of Country: | USA |
| Communication: | Ethernet And RS-232 | Shipping Weight: | 8 Lbs. |
| High Light: | touch screen hmi panels,hmi display touch screen |
||

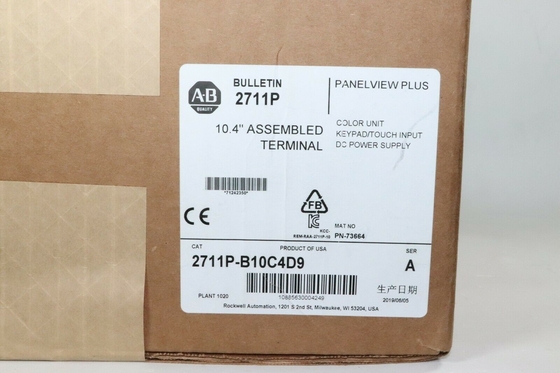

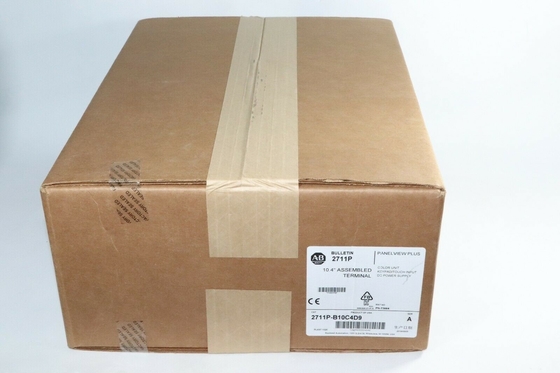

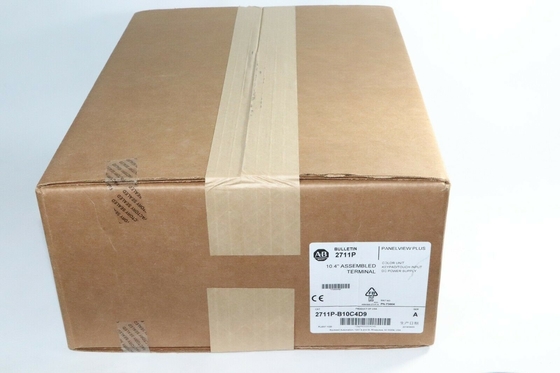

2711P-B10C4D9 Allen Bradley NEW IN BOX Original Touch screen with buttons*wx
Quick Detials
one year warranty
Description:
PanelView Plus 6 Operator interface , 1000 Terminal, with Keypad/Touch, Color display, - Ethernet & RS-232, DC Powered Unit, and the Windows CE 6.0 Operating System with Extended Features
About 2711P-B10C4D9
The current Allen Bradley Panelview 6 Plus 2711P-B10C4D9 is an HMI that allows the user to interact with their machine. This operator interface has a 10.4 in. Color Display. This Panelview Plus 6 allows the user to connect using FactoryTalk View Machine Edition software and an Ethernet and RS-232 communication port with a 2711-NC14 communication cable(s). The user is able to control the operator interface by utilizing the Keypad/Touchscreen to input information and data. This unit is powered using 18-32 VDC power. This unit has the following internal memory: 512 MB RAM. If applicable this unit has an internal backlight replacement part number of 2711P-RL10C2. The approximate shipping weight and dimensions are 8 lbs. and 16 x 14 x 8 in. The most common Series are Series A and Series B and the most common firmware include 6.00-8.10. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal. The 2711P-RN20 Ethernet communication module is available for the 700 to 1500 terminals if another Ethernet port is required. The module has its own unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.
Technical specifications:
| Manufacturer | Rockwell Automation |
| Brand | |
| Part Number/Catalog No. | 2711P-B10C4D9 |
| Product Line | Panelview 6 Plus |
| Display Size | 10.4 in. |
| Display Color | Color |
| Input Type | Keypad/Touchscreen |
| Communication | Ethernet and RS-232 |
| Input Power | 18-32 VDC |
| Software | FactoryTalk View Machine Edition |
| Memory | 512 MB RAM |
| Backlight | 2711P-RL10C2 |
| Communication Cable | 2711-NC14 |
| Shipping Weight | 8 lbs. |
| Shipping Dimensions | 16 x 14 x 8 in |
| Series | Series A and Series B |
| Firmware | 6.00-8.10 |
