Osa104s2 Servo Motor Encoder For Mitsubishi Servo Motor Type Ha New And Original

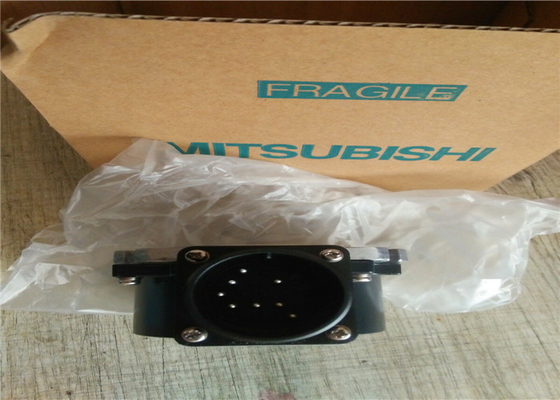

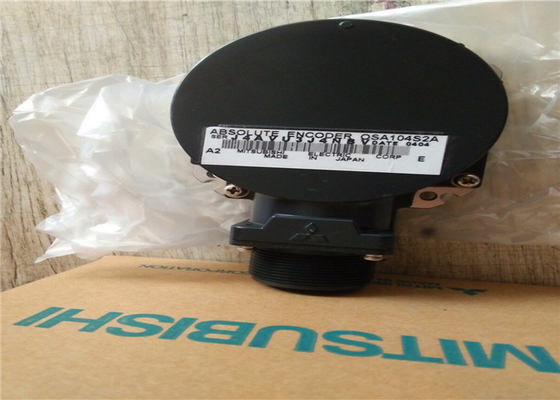

Encoder OSA104S2 For Mitsubishi Servo Motor Type HA NEW AND ORIGINAL

Quick Details:

• MITSUBISHI

• OSA104S2

• ENCODER ABSOLUTE 4BOLT

• CNC

• ONE YEAR WARRANTY

Specifications

MITSUBISHIELECTRIC servo motor type HA (exemple: HA103NCS). This MITSUBISHI ELECTRIC OSA104 (OSA 104) encoder is ready to replace your defective OSA104 (OSA 104) pulse coder and is sold with a warranty.

A metal disc containing a set of concentric rings of openings is fixed to an insulating disc, which is rigidly fixed to the shaft. A row of sliding contacts is fixed to a stationary object so that each contact wipes against the metal disc at a different distance from the shaft. As the disc rotates with the shaft, some of the contacts touch metal, while others fall in the gaps where the metal has been cut out. The metal sheet is connected to a source of electric current, and each contact is connected to a separate electrical sensor. MITSUBISHI ELECTRIC OSA104 (OSA 104 0SA104 OSA1O4)
