TS5208N500 Servo Motor Encoder Tamagawa Smartsyn Resolver Encoder For Servo Motor OIH48-1024P4-L6-5V

TS5208N500 Servo Motor Encoder Tamagawa Smartsyn Resolver Encoder  For Servo Motor OIH48-1024P4-L6-5V
TS5208N500 Servo Motor Encoder Tamagawa Smartsyn Resolver Encoder  For Servo Motor OIH48-1024P4-L6-5V TS5208N500 Servo Motor Encoder Tamagawa Smartsyn Resolver Encoder  For Servo Motor OIH48-1024P4-L6-5V

Large Image :  TS5208N500 Servo Motor Encoder Tamagawa Smartsyn Resolver Encoder For Servo Motor OIH48-1024P4-L6-5V Get Best Price

Product Details:

Place of Origin: Japan
Brand Name: Tamagawa
Certification: CE
Model Number: TS5208N500

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: 1-500USD
Packaging Details: orginal box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 30 PCS/ PER Month
Detailed Product Description
Brand: Tamgawa Model: TS5208N500
Type: Servo Motor Encoder Country Of Origin: Japan
Use For: AC Servo Motor Part Number: OIH48-1024P4-L6-5V
High Light:

incremental rotary encoder

,

absolute rotary encoder

Tamagawa Smartsyn Resolver Encoder TS5208N500 for Servo Motor OIH48-1024P4-L6-5V

Description:

Model

OIH48-1024C / T-P4-L6-5V TS5208N500

Pulse

1024C / T

Operating temperature

-20-85℃

Shaft Type

Hollow straight shaft

Shaft diameter

8MM

Outside diameter

48MM

Operating voltage

5V

Signal classification:

Incremental





Brushless resolvers (FA-SOLVER®)

Brushless resolver can be used for high accurate feedback of position and speed sensing, and pole detection of motor. Through their features of resistance for harsh environment and other reasons, they are used with motors for machine tools and robots, in steelworks.
We collectively call these brushless resolvers as FA-SOLVER®, and renewed their lineup to cope with a new FA era.



FEATURES

  • Wide temperature range
    Built-in type : -55∼+155°C
    Shaft type : -30∼+100°C
    Temperature compensation type (BRT): -10 ∼ +80 °C (For details, please refer to each individual specification.)

  • Superior environment resistance
    Vibration : 196m/s2{20G} at 10Hz ∼500Hz, for 2 hours to each of three axes.
    Shock : 981m/s2{100G} for 6ms, 3 times to each of 6 axes, 18 times in total
    Humidity : 90% RH or above at 60°C

  • High speed rotation
    Built-in type : 10,000min-1(r/min)
    Shaft type : 6,000min-1(r/min)
    Allowable rotation speed of some types may differ from the above values. For details, please refer to each individual specification. In addition, types exceeding 10,000min-1(r/min) are also available.

  • High reliability
    Resolver has the similar structure to electric motors but has high reliability because of no winding coil on its rotor. In particular, the built-in types are free from maintenance because ball bearings are not installed in them.

  • Absolute position detection

  • Long-distance transmission
    Robustness against noise enables long-distance transmission

  • Capable of compact incorporation
    The use of built-in types of Resolver minimizes housings of motors. Best suited for compact design

  • Multi-polar types are available.
    It is also possible to manufacture resolvers with a pole number responding to a pole number of a motor. They can respond to polar detection of AC motors and highly accurate motor control.



Similiar Servo Motor Encoder:

Brand

Part Number

Description

Mitsubishi

OSA105S2

Servo Motor Encoder

Mitsubishi

OSA18-130

Servo Motor Encoder

Mitsubishi

OSE104

Servo Motor Encoder

Mitsubishi

OSE253

Servo Motor Encoder

Mitsubishi

OSA104

Servo Motor Encoder

Mitsubishi

OSA104S2

Servo Motor Encoder

Mitsubishi

OSA105

Servo Motor Encoder

Mitsubishi

OSA105S5A

Servo Motor Encoder

Mitsubishi

OSA18

Servo Motor Encoder

Mitsubishi

OSE104S2

Servo Motor Encoder

Mitsubishi

OSE105

Servo Motor Encoder

Mitsubishi

OSE105S2

Servo Motor Encoder

Mitsubishi

OSE253S2

Servo Motor Encoder

Mitsubishi

OSA105ET

Servo Motor Encoder

Mitsubishi

OSE105S2

Servo Motor Encoder

Mitsubishi

OSA105S2A

Servo Motor Encoder

Mitsubishi

OSE5KN-6-12-108

Servo Motor Encoder

Mitsubishi

OSA105S5A

Servo Motor Encoder

Mitsubishi

OSA166ET2N

Servo Motor Encoder

Mitsubishi

OSA253

Servo Motor Encoder

Mitsubishi

OSA166S5NA

Servo Motor Encoder

Mitsubishi

OSA253S2

Servo Motor Encoder

Mitsubishi

OSA17-020

Servo Motor Encoder

Mitsubishi

OSE253

Servo Motor Encoder

Mitsubishi

OSA17-060

Servo Motor Encoder

Mitsubishi

OSA104

Servo Motor Encoder

Mitsubishi

OSA105

Servo Motor Encoder

Mitsubishi

OSA104S2

Servo Motor Encoder

Mitsubishi

OHA25K-4

Servo Motor Encoder

Mitsubishi

OSA17-060

Servo Motor Encoder

Mitsubishi

OSE104

Servo Motor Encoder

Mitsubishi

OSA105S2

Servo Motor Encoder

Mitsubishi

OSE105S2

Servo Motor Encoder

Mitsubishi

OSE253S2

Servo Motor Encoder

Mitsubishi

OSA18-100

Servo Motor Encoder

Mitsubishi

OSE253

Servo Motor Encoder

Mitsubishi

OSE105

Servo Motor Encoder

Mitsubishi

OHE25K-6

Servo Motor Encoder

Mitsubishi

OSE104S2

Servo Motor Encoder

Mitsubishi

OSA253S2

Servo Motor Encoder

Mitsubishi

OSA104S

Servo Motor Encoder

Mitsubishi

OSA14-6

Servo Motor Encoder

Mitsubishi

OSA14

Servo Motor Encoder

Mitsubishi

OSA14-14

Servo Motor Encoder

Mitsubishi

OSA14-041

Servo Motor Encoder



Mitsubishi servo encoder
When extreme high speed and accuracy is essential for your application, Mitsubishi's linear servos are the perfect solution. With 17 core type (liquid cooled) models ranging from 60N to 18000N and 9 coreless types in the range of 50N to 3200N, our linear servo technology offers high power density in a compact package, improved heat dissipation, and extremely smooth motion. Designed for easy-of-use, our motors seamlessly integrate with our MR-J3-RJ004 type amplifiers allowing for seamless start up and faster project development as well as a "Robust Disturbance compensation function" that suppresses offset disturbances that cause uneven speeds. Mitsubishi's linear motors have a successful history in many industries ranging from semiconductor manufacturing to machine tools. Set-up, diagnostics, and tuning are easy for all Mitsubishi's servos, thanks to MR-Configurator, our Windows based software package.

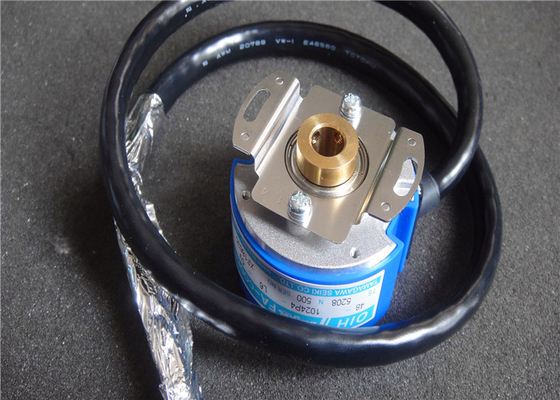

 TS5208N500 Servo Motor Encoder Tamagawa Smartsyn Resolver Encoder  For Servo Motor OIH48-1024P4-L6-5V 0


MORE INFORMATION


DELIVERY

Logistic partners UPS, FedEx and DHL

International delivery available

Same day dispatch from group stock

WARRANTY

All parts new are covered by Shenzhen Viyork 12 month warranty

RETURNS

No hassle returns policy

Dedicated customer support team

PAYMENT

Trade credit

We understand that credit is a necessary part of business and offer credit agreements on request, subject to status.

Payment options

We accept Bank transfers and the following methods of payment:

Western Union PayPal VISA

Pls contact us:
Company: Shenzhen Viyork Technology CO.,LTD.
Cotact:Miss Liu
Moblie/WhatsApp: 0086-13826534820
Email: shenzhenviyork@163.com
Skype:live:.cid.ba9401e01ca235c2

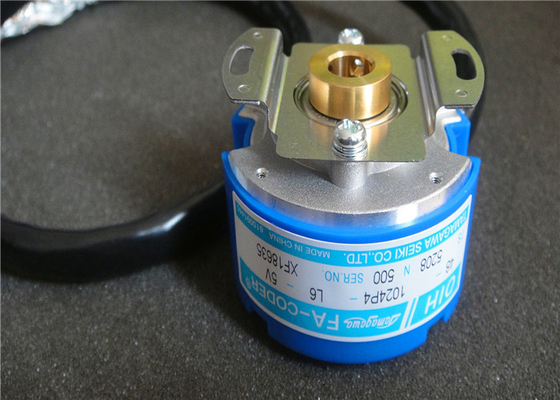

TS5208N500 Servo Motor Encoder Tamagawa Smartsyn Resolver Encoder  For Servo Motor OIH48-1024P4-L6-5V 1
