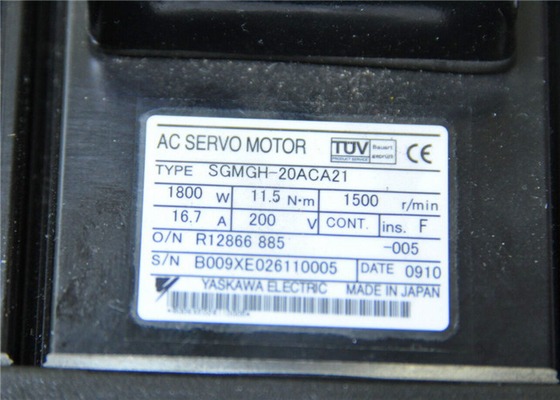

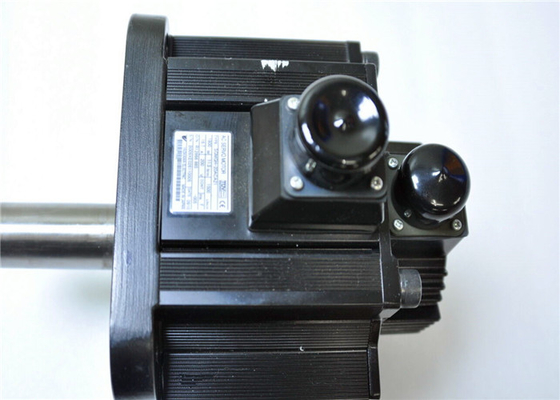

1.8kw AC Servo Motor SGMGH-20ACA21 Yaskawa Sgmah Servo Motor 11.5N.M

Servo motor SGMGH type.
Rated speed: 1000r/min.
Power: 0.9kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.
Design sequence: B.

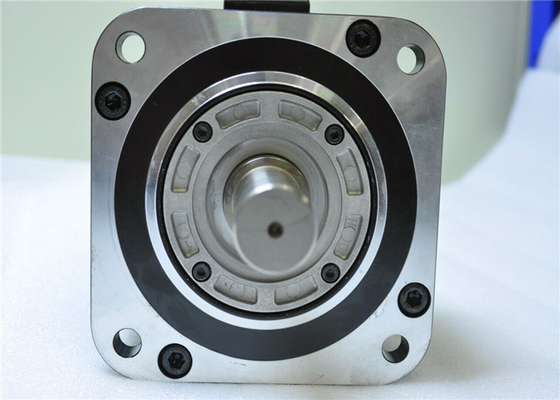

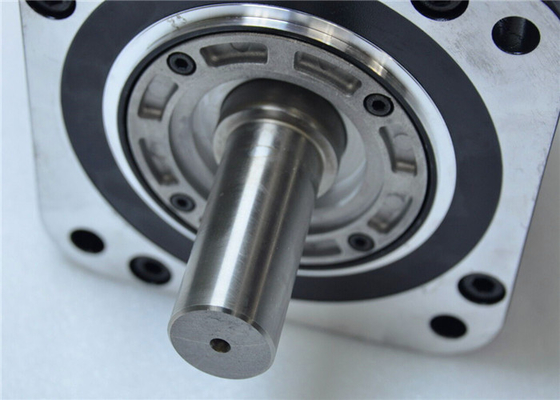

Shaft end: straight shaft with screw key.
Optional parts: with oil seal, DC24V brake.
High speed feed series: high speed running when no load SGMGH-20ACA21.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain SGMGH-20ACA21
Parameter setting device.
The parameters can be directly entered by the servo drive body.
Saving wiring.
Using a serial encoder, encoder wiring number than the original product reduced by 1/2.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlEquipped with INDEXER functional type servo unit (kit type) SGMGH-20ACA21.
Maximum applicable motor capacity: 0.2kw.
Power supply voltage: single phase AC100V.
Interface: instruction selection and installation (rotary type servo motor).
Matching (hardware): paint.
Matching (software): standard.
Matching (parameter): standard.
Optional module: INDEXER+ full closed loop module SGMGH-20ACA21.
Simple.
By programming and serial programming, easy implementation of motion control.
Can also be installed through the Windows environment support tool (SigmaWin+) easy to start.
The I/O module can be connected with the upper controller simply.
Smart.
To support the operation of the main purpose of the positioning operation based on the program table.
The maximum number of programmable positioning points to 256 points.
With external positioning, JOG speed table operation, the origin of reversion, rich features such as programmable signal output.
I/O points for the input: 19 points, output: 16 points.
Speedy.
High speed and high precision positioning by combining with high performance V series.
Motion control can be realized without using motion controller.Sigma -V series servo motor SGMGV.
Rated output: 7.5kw.
Power supply voltage: AC400V.
Serial encoder: 20 bit Delta (standard).
Design sequence: Standard (bolt for silver).
Shaft end: straight shaft, without keyway (standard).
Optional: with hold brake (DC24V).
A variety of mechanical feed shaft drive (high speed feed).
Variety is complete (300W ~ 15kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit).
Standard using IP67.
Use example:
Machine tool.
Transport machinery.
Handling machinery.
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
HHeat resistance grade: F SGMGH-20ACA21.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80%% (not dew) SGMGH-20ACA21.
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation

Features:

1. Compact

*Small sized motor

2. Higher Speed and acceleration

*Up to 3000rpm maximum

*High torque to inertia ratio

3. Encoders

*17-bit(32,768 ppr x 4) incremental encoder(standard)

*17-bit absolute encoder (optional)

4. Enhanced Environmental Resistance

*Totally enclosed, self-cooled IP67(excluding shaft)

*Shaft seal(optional)

5. Application Emphasis

6. Certified International Standards

*UL, cUL recognized(File #: E165827) CE compliance

Specifications:

Applications:

Transfer Machine, Food Processing Machines, Material Handling Equipment, Machine tools and woodworking machines, Packaging machines, Gantry robots, Press automation, Thermoforming
