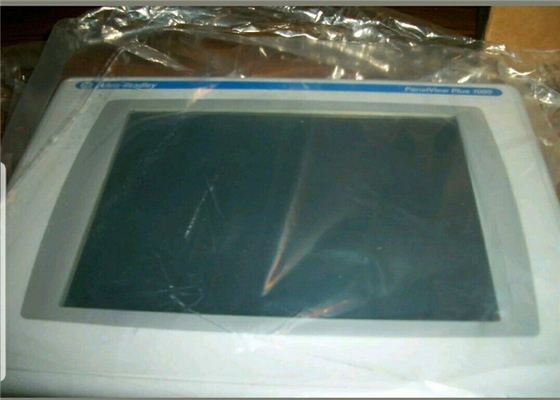

ALLEN BRADLEY 2711P-T10C4D8 2711P-T10C4D9 SERIES A PANELVIEW PLUS 1000 Touch Screen

I'm Online Chat Now
Great communication., A+ pleasure to do business with, Highly recommend.

—— Michael

Great Suppliers it’s a pleasure to work with you

—— David

quick shipping works great thanks

—— Elaine

ALLEN BRADLEY 2711P-T10C4D8 2711P-T10C4D9 SERIES A PANELVIEW PLUS 1000 Touch Screen

ALLEN BRADLEY 2711P-T10C4D8 2711P-T10C4D9 SERIES A PANELVIEW PLUS 1000 Touch Screen
ALLEN BRADLEY 2711P-T10C4D8 2711P-T10C4D9 SERIES A PANELVIEW PLUS 1000 Touch Screen ALLEN BRADLEY 2711P-T10C4D8 2711P-T10C4D9 SERIES A PANELVIEW PLUS 1000 Touch Screen ALLEN BRADLEY 2711P-T10C4D8 2711P-T10C4D9 SERIES A PANELVIEW PLUS 1000 Touch Screen ALLEN BRADLEY 2711P-T10C4D8 2711P-T10C4D9 SERIES A PANELVIEW PLUS 1000 Touch Screen

Large Image :  ALLEN BRADLEY 2711P-T10C4D8 2711P-T10C4D9 SERIES A PANELVIEW PLUS 1000 Touch Screen Get Best Price

Product Details:

Place of Origin: USA
Brand Name: AB
Certification: CE
Model Number: 2711P-T10C4D8

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: 1-500USD
Packaging Details: orginal box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 30 PCS/ PER Month
Detailed Product Description
Brand: AB Model: 2711P-T10C4D8
Type: Touch Screen Origin Of Country: USA
Shipping Dimensions: 16 X 14 X 8 Inches Firmware: 6.00 To 8.10
High Light:

touch screen hmi panels

,

allen bradley display panel

ALLEN BRADLEY 2711P-T10C4D8 2711P-T10C4D9 SERIES A PANELVIEW PLUS 1000 Touch Screen



Quick Detials



  • ALLEN BRADLEY
  • 2711P-T10C4D8
  • 2711PT10C4D8
  • OPERATOR INTERFACE
  • PANELVIEW PLUS 6
  • 10.4 INCH TERMINAL
  • COLOR
  • TOUCH W/LOGIC MODULE
  • ETHERNET & RS-232
  • 512 MB FLASH
  • 512 MB RAM
  • WINDOWS CE 6.0 W/O EXTENDED FEATURES
  • 24 VDC
  • 70 WATT
  • one year warranty


Description:

PanelView Plus 6 Operator interface, 1000 Terminal, with Touchscreen, Color display, - Ethernet & RS-232, DC Powered Unit, and the Windows CE 6.0 Operating System. 6.00 to 8.10 Firmware Revisions. 2711P-RL10C2 Backlight.



Technical specifications:

Manufacturer Rockwell Automation
Brand
Part Number/Catalog No. 2711P-T10C4D8
Series Panelview 6 Plus
Product Type Operator Interface
Display Size 10.4 inches
Display Color Color
Input Type Touchscreen
Communication Ethernet and RS-232
Input Power 18 to 32 Volts DC
Software FactoryTalk View Machine Edition
Memory 512 MB RAM
Backlight 2711P-RL10C2
Communication Cable 2711-NC13
Shipping Weight 8 pounds
Shipping Dimensions 16 x 14 x 8 inches
Series Series A and Series B
Firmware 6.00 to 8.10



About 2711P-T10C4D8

The 2711P-T10C4D8 is an PanelView 6 Plus 1000 Series terminal. The 2711P-T10C4D8 is an operator interface that allows users to monitor, manage, and display application status information. The 2711P-T10C4D8 uses modular components that allow for flexible configuration, installation, and upgrades. This factory-assembled terminal has both a display module and a logic module. As indicated by the "T" in the part number of this unit, it has a touchscreen input. It has a 10.4-inch color TFT display (indicated by the "C" in part number). The resolution of the display is 640 x 480 pixels with an 18-bit color graphics. The display has a brightness of 300 cd/m2 (Nits). The Panelview Plus family is a wide range of rugged terminals that provide features like premier integration with an Integrated Architecture platform. Optional communication modules are available for additional network communication. The 2711P-T10C4D8 terminal has Ethernet, RS-232, and 2 USB host ports for communication. These allow the user to connect the terminal to other machines using FactoryTalk View Machine Edition software and with a 2711-NC13 communication cable.

The 2711P-T10C4D8 is powered using 18 to 30 Volts DC and 100 to 240 Volts AC at 50 to 60 Hertz. The power consumption (DC) is 15 Watts maximum (0.6 A at 24 Volts DC) and 9 Watts typical (0.375 A at 24 Volts DC). For the AC voltage, the power consumption is 35 VA maximum and 20 VA typical. The 2711P-T10C4D8 processor's speed has been increased from 350 MHz to 1 GHz and the screen transition rate is approximately 70% faster than in previous models. The 2711P-T10C4D8 has an internal memory of 256 MB RAM and 512 MB nonvolatile(ROM). The illumination of the 2711P-T10C4D8’s backlight display has also been enhanced. The approximate shipping weight is 8 pounds and the dimensions are 16 x 14 x 8 inches. This device works on the Windows CE 6.0 operating system, but it does not support the extended features and file viewers. However, the 2711P-T10C4D8 can connect to a variety of external hardware such as printers, mice, and keyboards.
