Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 2711P-T12C4A8 |
|---|---|---|---|
| Type: | Touch Screen | Origin Of Country: | USA |
| Shipping Weight: | 10 Pounds | Series: | A And B |
| High Light: | touch screen hmi panels,allen bradley display panel |
||

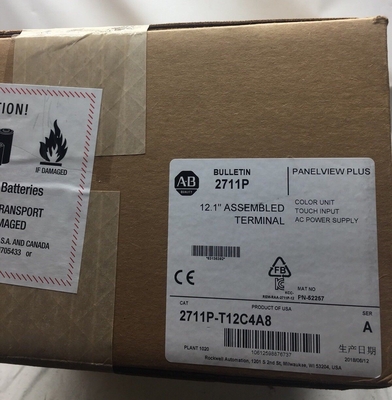

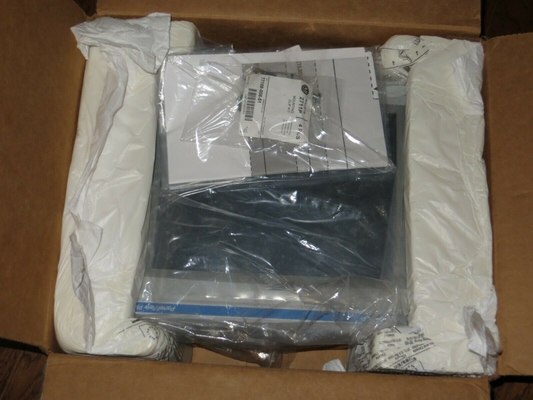

2019 SEALED Allen Bradley 2711P-T12C4A8 2711P-T12C4A9 PanelView Plus 6 1250 Touch/Color/RS-232
Quick Detials
one year warranty
Description:
PanelView Plus 6 Operator interface , 1250 Terminal, with Touchscreen, Color display, - Ethernet & RS-232, AC Powered Unit, and the Windows CE 6.0 Operating System
Technical specifications:
| Manufacturer | Rockwell Automation |
| Brand | |
| Part Number/Catalog No. | 2711P-T12C4A8 |
| Product Line | Panelview 6 Plus |
| Product Type | Operator Interface |
| Display Size | 12.1 inches |
| Display Color | Color |
| Input Type | Touchscreen |
| Communication | Ethernet and RS-232 |
| Input Power | 100 to 240 Volts AC |
| Software | FactoryTalk View Machine Edition |
| Memory | 512 MB RAM |
| Backlight | 2711P-RL12C2 |
| Communication Cable | 2711-NC13 |
| Shipping Weight | 10 pounds |
| Shipping Dimensions | 20 x 14 x 8 inches |
| Series | A and B |
| Firmware | 6.00 to 8.10 |

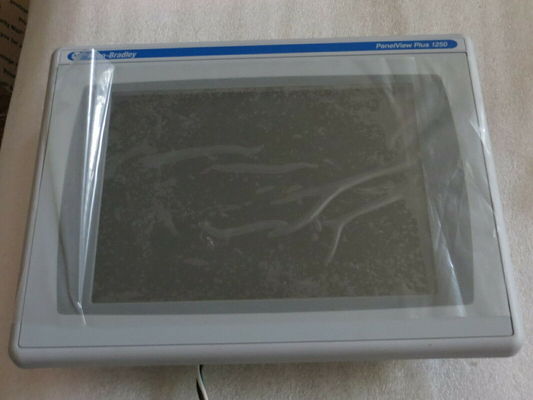

The 2711P-T12C4A8 PanelView Plus 6 touchscreen is an operator interface with a unique human-machine interface (HMI) touchscreen. This PanelView Plus 6 terminal consists of a display module known as the 2711P-RDT12C and a logic module known as the 2711P-RDT12C which combine to make the complete terminal. It uses an RS-232 communication port as well as USB ports for connection to other devices and for easy programming by a PC. It is also equipped with EtherNet 10 to 100 Mbps communication capability for enhanced network advantages. It comes pre-loaded with the Windows CE 6.0 operating system, the Factory Talk View ME application software version 6.0 or later, and the Factory Talk View Point software, version 1.2 or later. The 2711P-T12C4A8 has an input rating of 100 to 240 Volts AC for its input voltage at 50 to 60 Hertz and an apparent power rating of 65 VA, which peaks at 160 VA.
The 2711P-T12C4A8 weighs approximately 3.2 kilograms (7.0 pounds) and it measures 11.12 x 14.30 x 2.18 inches. It has an analog resistive touchscreen with a 1-million-press actuation rate of 10 to 110 G. Users can input data through its 12.1-inch active-matrix TFT touchscreen display with 9.7 x 7.2-inch display dimensions and a resolution of 800 x 600, and 18-bit color graphics. It has a luminance rating of 300 cd/m2 (Nits). The 2711P-T12C4A8 terminal has a non-replaceable backlight with a 50,000-hour standby time and a battery-backed real-time clock with 4 years of battery life. The 2711P-T12C4A8 has an internal memory of 512 MB with approximately 79 MB of free user memory, and 512 MB of volatile memory for application processing. When it is operational, the 2711P-T12C4A8 has a thermal dissipation of 240 BTU/hour and a shock rating of 30 G coupled with a vibration of 2 G at 10 to 500 Hertz. It can operate at an altitude of 2000 meters (6561 feet) without derating and at a temperature range of 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit) with a relative humidity of between 5 and 95%, non-condensing.
