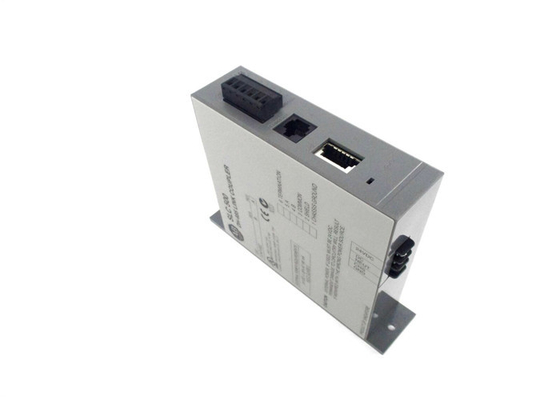

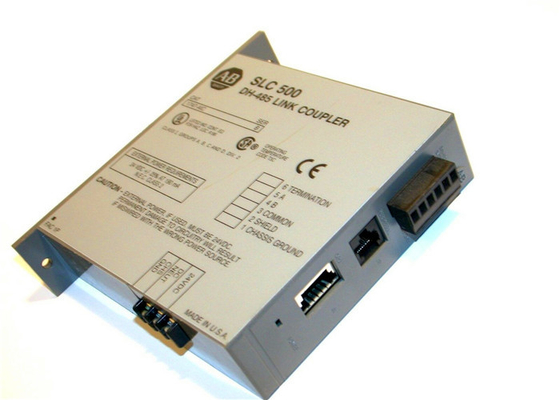

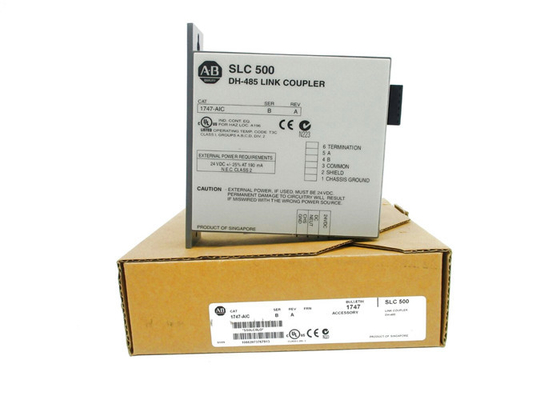

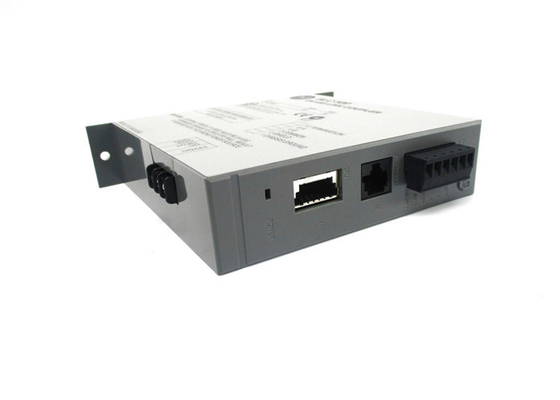

New Allen Bradley SLC500 Isolated Link Coupler DH-485 Comm Mod SER B 1747-AIC

New Allen Bradley SLC500 Isolated Link Coupler DH-485 Comm Mod SER B 1747-AIC
New Allen Bradley SLC500 Isolated Link Coupler DH-485 Comm Mod SER B 1747-AIC New Allen Bradley SLC500 Isolated Link Coupler DH-485 Comm Mod SER B 1747-AIC New Allen Bradley SLC500 Isolated Link Coupler DH-485 Comm Mod SER B 1747-AIC New Allen Bradley SLC500 Isolated Link Coupler DH-485 Comm Mod SER B 1747-AIC

Large Image :  New Allen Bradley SLC500 Isolated Link Coupler DH-485 Comm Mod SER B 1747-AIC Get Best Price

Product Details:

Place of Origin: USA
Brand Name: AB
Certification: CE
Model Number: 1747-AIC

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: 1-500USD
Packaging Details: orginal box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 30 PCS/ PER Month
Detailed Product Description
Brand: AB Model: 1747-AIC
Type: I/O Adapter Module Origin Of Country: USA
Isolation Voltage: 50 Volts Continuous Dimensions: 5.72 X 1.37 X 5.15 Inches
High Light:

allen bradley memory module

,

plc processor module

New Allen Bradley SLC500 Isolated Link Coupler DH-485 Comm Mod SER B 1747-AIC



Quick Detials



  • ALLEN BRADLEY
  • 1747-AIC
  • 1747AIC
  • LINK COUPLER
  • DH–485 NETWORK
  • 6 POSITION
  • 24 VDC
  • FOR PROGRAMMABLE CONTROLLER
  • one year warranty



SPECIFICATIONS

The Allen-Bradley 1747-AIC is a SLC 500 Isolated Link Coupler. This Isolated Link Coupler has a Shielded Twisted-Pair Communication Interface and has a Current Load (24 Volt DC) of 0.085 Amps.



About 1747-AIC

The Allen-Bradley 1747-AIC drive is an isolated link coupler under the Allen-Bradley PLC SLC 500 series. The panel-mountable coupler conforms to the NEMA standard ICS 2-230, IEC1000-4-2, EN50081-2 Class A, and the IEC1000-4-3 regulations and standards. In addition, this device is CSA certified. The dimensions of the coupler are 1.5 x 6.8 x 6.5 inches and it uses a terminal. The current load of this isolated link coupler is 0.085 Amps at 24 Volts DC. Moreover, the Allen-Bradley 1747-AIC drive offers an advanced interface converter with a shielded twisted-pair communication interface. This interface helps with communication between several network devices in the SLC 500 family such as the SLC 5/02, SLC 5/01, and the SLC 5/03 processors and the DH-485 link.

Note that connecting more than 2 SLC500 processors with a DH-485 link requires 1 isolated coupler on the 1747-AIC drive. Also, 1 link coupler should be connected at each end of the link if a computer or DTAM is linked at a distance greater than 20 feet or 6.09 meters. To connect with the processor, an Allen-Bradley 1747-C11 cable is provided with the coupler. To connect to the DH-485 communication cable, the coupler offers a 6-position removable terminal block. The communication cable is 1219 meters or 4000 feet in length. The backplane current of the 1747-AIC is 0 mA at 5 Volts and 85 mA at 24 Volts. The thermal dissipation is 2 W minimum and 2 W maximum, respectively and the relative humidity range of the 1747-AIC drive is from 5 to 95% without condensation. The isolated coupler comes with 1 G operating vibration at 5 to 2000 Hertz operating vibration and 2.5 G non-operating vibration at 5 to 2000 Hertz. For a 24 Volts DC power source, the coupler requires 20.4 to 28.8 Volts DC.





Technical specifications:

Manufacturer AB
Brand Allen-Bradley
Part Number/Catalog No. 1747-AIC
Series SLC 500
Module Type Isolated Link Coupler
Communication Interface Shielded Twisted-Pair
Current Load (24 Volt DC) 0.085 Amps
Location Slot 0
Backplane Current (5 Volts) 470 milliamps
Thermal Dissipation 2.49 Watts
Isolation Voltage 50 Volts Continuous
Enclosure Open
Weight 0.37 pounds (168 grams)
Dimensions 5.72 x 1.37 x 5.15 inches
Operating Temperature 0 to 60 degrees Celsius
