New Allen Bradley 1746-OV16 Series C SLC 500 16-Ch DC Output 10-50V DC Sink

New Allen Bradley 1746-OV16 Series C SLC 500 16-Ch DC Output 10-50V DC Sink
New Allen Bradley 1746-OV16 Series C SLC 500 16-Ch DC Output 10-50V DC Sink New Allen Bradley 1746-OV16 Series C SLC 500 16-Ch DC Output 10-50V DC Sink New Allen Bradley 1746-OV16 Series C SLC 500 16-Ch DC Output 10-50V DC Sink New Allen Bradley 1746-OV16 Series C SLC 500 16-Ch DC Output 10-50V DC Sink

Large Image :  New Allen Bradley 1746-OV16 Series C SLC 500 16-Ch DC Output 10-50V DC Sink Get Best Price

Product Details:

Place of Origin: USA
Brand Name: AB
Certification: CE
Model Number: 1746-OV16

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: 1-500USD
Packaging Details: orginal box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 30 PCS/ PER Month
Detailed Product Description
Brand: AB Model: 1746-OV16
Type: I/O Adapter Module Origin Of Country: USA
Voltage Range: 10-50 Volts DC Sink Step Response: 60 Milliseconds In, 2.5 Milliseconds Out
High Light:

allen bradley memory module

,

plc processor module

New Allen Bradley 1746-OV16 Series C SLC 500 16-Ch DC Output 10-50V DC Sink



Quick Detials



  • ALLEN BRADLEY
  • 1746-OV16
  • 1746OV16
  • OUTPUT MODULE
  • SLC 500
  • DIGITAL
  • 16 CHANNEL OUTPUT
  • CURRENT SINKING
  • 10-50 VDC
  • OPEN STYLE
  • one year warranty



SPECIFICATIONS

The Allen-Bradley 1746-OV16 is a SLC 500 Digital DC Output Module. This Digital DC Output Module has a Voltage Range of 10-50 Volts DC Sink and 16 Outputs. It has a Backplane Current (5 Volts) of 270 milliamps.



About 1746-OV16

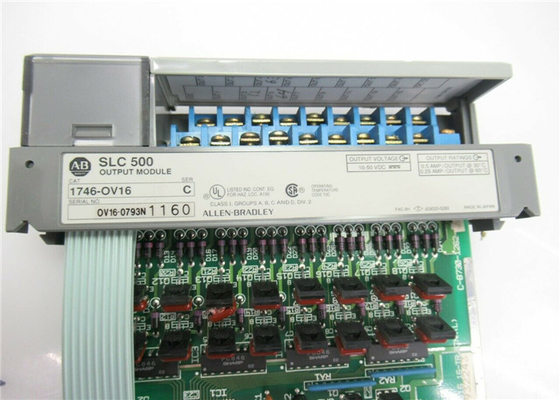

The Allen-Bradley 1746-OV16 module is a member of the 1746 output module series. It can be used as a digital output module for an SLC 500 system. It has 16 outputs but no inputs. It has a heat dissipation per point of 0.388W and a total heat dissipation of 7.6W. The 1746-OV16 has a removable terminal block which allows you to connect or modify the wiring on the module easily. The removable terminal block is the colored one. The black one is not removable.
The 1746-OV16 has 16 points per common. It has an operating voltage that ranges from 10 – 50V DC. It has a higher backplane current consumption (0.27 A) than the 1746-OV8 and the 1746-OVP16 modules. The 1746-OV16 has a maximum signal delay of 0.1ms in the On-state and of 1ms in the Off-state. It has a continuous current per output and per module of 0.5A and 8A at 30°C and 0.25A and 4A at 60°C, respectively. The 1746-OV16 has a maximum Off-state leakage of 1Ma and a maximum On-state voltage drop of 1.2V at 0.5A and 3A for 10ms maximum surge current per point.
Before you install this module, please refer to the manual for the wiring diagrams of the 1746-OV16. This will help you understand how to do the wiring and how to make any further preparations before installation. Keep in mind that you are not allowed to do any to attempt to install, wire, or remove the module when it is powered on.





Technical specifications:

Manufacturer AB
Brand Allen-Bradley
Part Number/Catalog No. 1746-OV16
Series SLC 500
Module Type Digital DC Output Module
Voltage Range 10-50 Volts DC Sink
Outputs 16
Current/Output 0.5 or 0.25 amps
Current/Module 8 or 4 amps
Backplane Current (5 Volts) 270 milliamps
Applications General Purpose DC Outputs
Applications High Current
Step Response 60 milliseconds in, 2.5 milliseconds out



MORE INFORMATION



DELIVERY



Logistic partners UPS, FedEx and DHL



International delivery available



Same day dispatch from group stock





WARRANTY



All parts new are covered by Shenzhen Viyork 12 month warranty





RETURNS



No hassle returns policy



Dedicated customer support team





PAYMENT





Trade credit



We understand that credit is a necessary part of business and offer credit agreements on request, subject to status.





Payment options



We accept Bank transfers and the following methods of payment:



Western Union PayPal VISA




Pls contact us:

Company: Shenzhen Viyork Technology CO.,LTD
Cotact:Miss Liu
Moblie/WhatsApp: 0086-13826534820
Email: shenzhenviyork@163.com
Skype:live:.cid.ba9401e01ca235c2

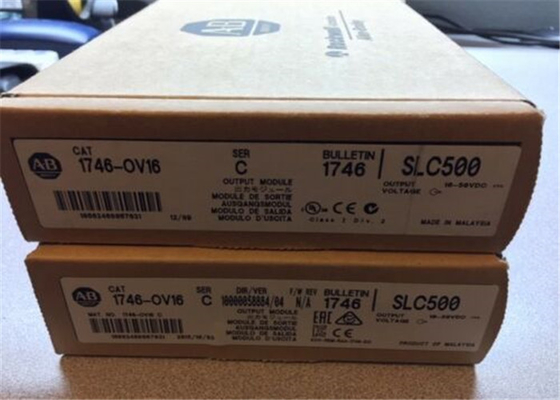

New Allen Bradley 1746-OV16 Series C SLC 500 16-Ch DC Output 10-50V DC Sink 0

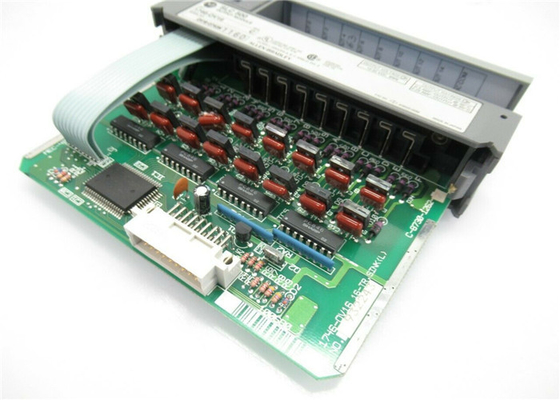

New Allen Bradley 1746-OV16 Series C SLC 500 16-Ch DC Output 10-50V DC Sink 1

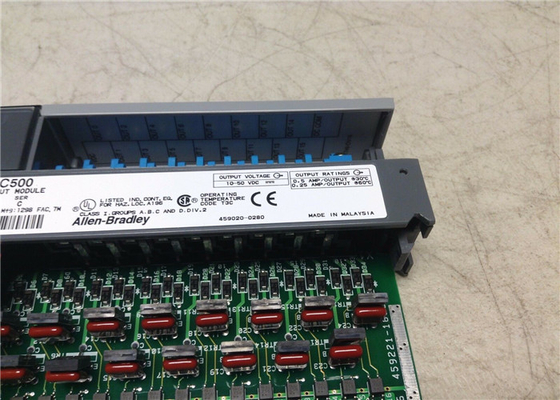

New Allen Bradley 1746-OV16 Series C SLC 500 16-Ch DC Output 10-50V DC Sink 2
