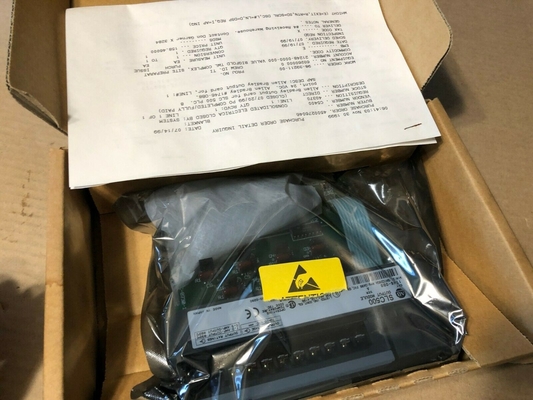

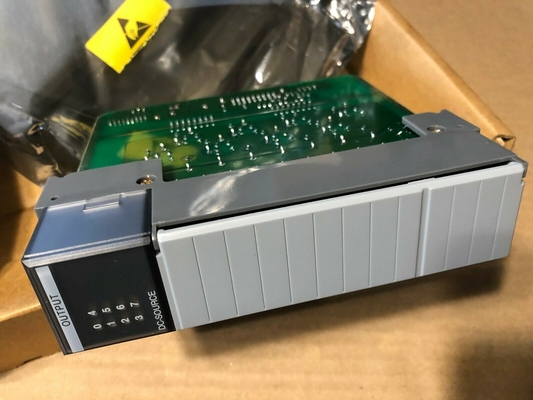

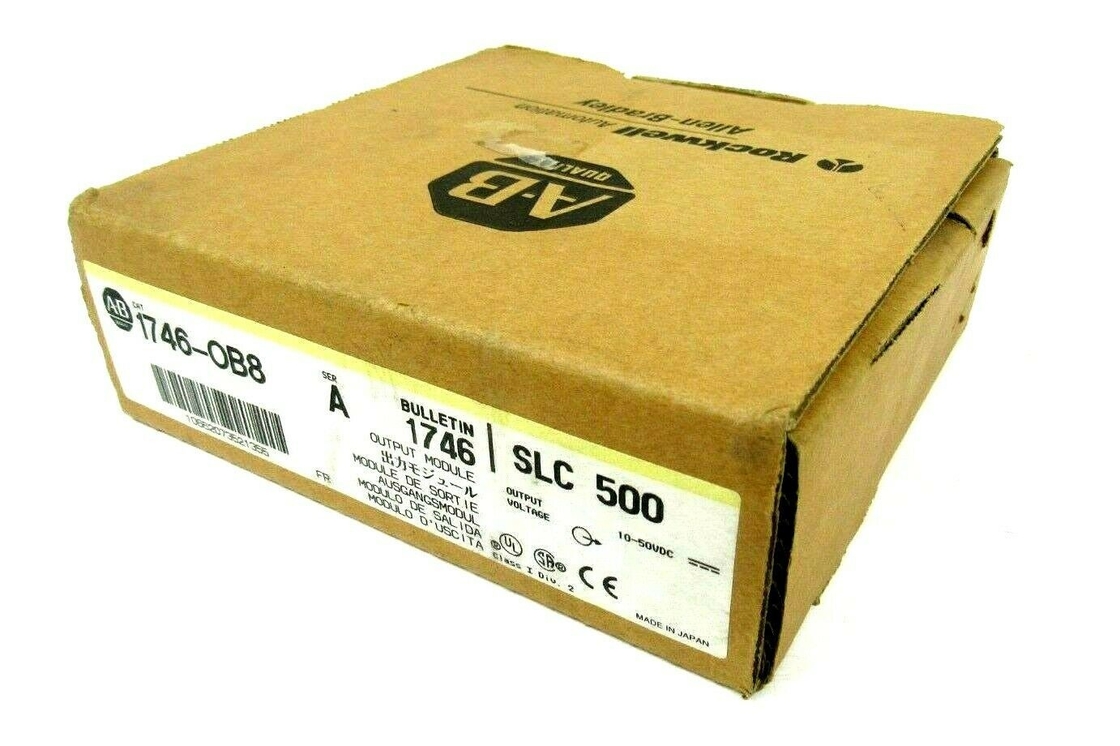

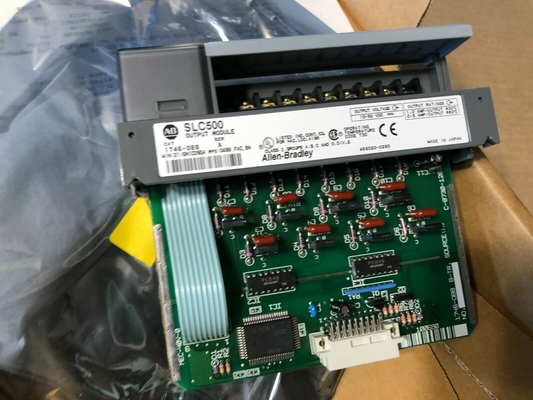

Allen Bradley 1746-OB8, Series A, Output Module, SLC 500. Loc 15C

Allen Bradley 1746-OB8, Series A, Output Module, SLC 500. Loc 15C
Allen Bradley 1746-OB8, Series A, Output Module, SLC 500. Loc 15C Allen Bradley 1746-OB8, Series A, Output Module, SLC 500. Loc 15C Allen Bradley 1746-OB8, Series A, Output Module, SLC 500. Loc 15C Allen Bradley 1746-OB8, Series A, Output Module, SLC 500. Loc 15C

Large Image :  Allen Bradley 1746-OB8, Series A, Output Module, SLC 500. Loc 15C Get Best Price

Product Details:

Place of Origin: USA
Brand Name: AB
Certification: CE
Model Number: 1746-OB8

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: 1-500USD
Packaging Details: orginal box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 30 PCS/ PER Month
Detailed Product Description
Brand: AB Model: 1746-OB8
Type: I/O Adapter Module Origin Of Country: USA
Step Response: 60 Milliseconds In, 2.5 Milliseconds Out Voltage Range: 10-50 Volts DC Source
High Light:

allen bradley memory module

,

plc processor module

Allen Bradley 1746-OB8, Series A, Output Module, SLC 500. Loc 15C



Quick Detials



  • ALLEN BRADLEY
  • 1746-OB8
  • 1746OB8
  • OUTPUT MODULE
  • SLC 500
  • DIGITAL
  • 8 CHANNELS
  • CURRENT SOURCING
  • 10-50 VDC
  • OPEN STYLE CHASSIS
  • one year warranty



SPECIFICATIONS

The Allen-Bradley 1746-OB8 is a SLC 500 Digital DC Output Module. This Digital DC Output Module has a Voltage Range of 10-50 Volts DC Source and 8 Outputs. It has a Backplane Current (5 Volts) of 135 milliamps.



About 1746-OB8

The Allen-Bradley 1746-OB8 is a DC output module that has 8 outputs but no inputs. It has a voltage category of 24V DC in signal output and its number of points per common is 8. It has a total heat dissipation of 6.9 W and a maximum signal delay of 1A and 8A at 30°C and 0.5A and 4A at 60°C, respectively. Moreover, the maximum off-state leakage of this module is 1mA and the maximum thermal dissipation is 6.9 W. The 1746-OB8 has a maximum On-state voltage drop of 1.2V at 1A and 3A for 10ms maximum surge current per point. It has a backplane current consumption of 135mA at 5V DC and 0 mA at 24V DC. It has minimum load current of 1 mA. Please watch out for transient pulses which can occur when the external DC supply voltage is applied to the output common terminals. Please refer to the user manual for more information about transient pulses.
The 1746-OB8 has a design that complies with international standards. It is UL-listed, CE compliant, and CSA and C-Tick certified. It has an operating humidity that ranges from 5 – 95% (non-condensing). When in use, you need to ensure that the temperature does not exceed 60°C or fall below 0°C. You need to store this module in an area that has a temperature range of -40-85°C. The electro-optical insulation between the I/O terminals and control logic device of this module is 1500 V. This module is compatible with Windows programming software or a hand-held terminal (HHT). Therefore, it can be configured easily through your computer.





Technical specifications:

Manufacturer AB
Brand Allen-Bradley
Part Number/Catalog No. 1746-OB8
Series SLC 500
Module Type Digital DC Output Module
Voltage Range 10-50 Volts DC Source
Outputs 8
Current/Output 1 or 0.5 amps
Current/Module 8 or 4 amps
Backplane Current (5 Volts) 135 milliamps
Applications Electronically Fused DC Outputs
Applications High Current
Step Response 60 milliseconds in, 2.5 milliseconds out



MORE INFORMATION



DELIVERY



Logistic partners UPS, FedEx and DHL



International delivery available



Same day dispatch from group stock





WARRANTY



All parts new are covered by Shenzhen Viyork 12 month warranty





RETURNS



No hassle returns policy



Dedicated customer support team





PAYMENT





Trade credit



We understand that credit is a necessary part of business and offer credit agreements on request, subject to status.





Payment options



We accept Bank transfers and the following methods of payment:



Western Union PayPal VISA
