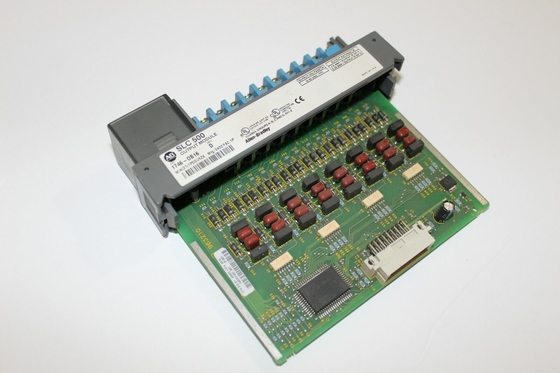

ALLEN BRADLEY 1746-OB16 OUTPUT MODULE SERIES D 10-50VDC - NIB

ALLEN BRADLEY 1746-OB16 OUTPUT MODULE SERIES D 10-50VDC - NIB
ALLEN BRADLEY 1746-OB16 OUTPUT MODULE SERIES D 10-50VDC - NIB ALLEN BRADLEY 1746-OB16 OUTPUT MODULE SERIES D 10-50VDC - NIB ALLEN BRADLEY 1746-OB16 OUTPUT MODULE SERIES D 10-50VDC - NIB ALLEN BRADLEY 1746-OB16 OUTPUT MODULE SERIES D 10-50VDC - NIB

Large Image :  ALLEN BRADLEY 1746-OB16 OUTPUT MODULE SERIES D 10-50VDC - NIB Get Best Price

Product Details:

Place of Origin: USA
Brand Name: AB
Certification: CE
Model Number: 1746-OB16

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: 1-500USD
Packaging Details: orginal box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 30 PCS/ PER Month
Detailed Product Description
Brand: AB Model: 1746-OB16
Type: I/O Adapter Module Origin Of Country: USA
Voltage Range: 10-50 Volts DC Source Heat Dissipation: 7.6 Watts
High Light:

allen bradley memory module

,

plc processor module

ALLEN BRADLEY 1746-OB16 OUTPUT MODULE SERIES D 10-50VDC - NIB



Quick Detials



  • ALLEN BRADLEY
  • 1746-OB16
  • 1746OB16
  • I/O MODULE
  • 16 OUTPUTS
  • 10 TO 50 VOLT DC
  • 280 MA @5 VOLT
  • BACKPLANE CURRENT LOAD
  • GENERAL PURPOSE DC OUTPUTS
  • one year warranty



SPECIFICATIONS

The Allen-Bradley 1746-OB16 is a SLC 500 Digital DC Output Module. This Digital DC Output Module has a Voltage Range of 10-50 Volts DC Source and 16 Outputs. It has a Backplane Current (5 Volts) of 280 milliamps.



About 1746-OB16

The 1746-OB16 SLC 500 Digital DC Output Module by Allen-Bradley is a DC module with sixteen 24V DC outputs and it is lodged in any free slot in the 1746 I/O Chassis. It has 16 output points and a backplane electrical rating of 0.280A at 5 Volts DC and one of 0A at 24V DC. The 1746-OB16 has a load-dependent maximum signal delay time of 1ms for OFF and 0.1ms for ON and a maximum current loss of 1mA in its OFF state. In its ON state, it has a voltage loss of 1.2 Volts at 0.50A and the minimum load each point can carry is 1mA.

The 1746-OB16 has a nominal input current of 0.5A at 30 degrees Celsius and 0.25 A at 60 degrees Celsius for each output point and it has a gross input current of 8A at 30 degrees Celsius and 4A at 60 degrees Celsius per module. It also has a current surge of 3A for 10ms recurring every 1s at 30 degrees Celsius and 2s at 60 degrees Celsius (140 degrees Fahrenheit). The 1746-OB16 provides voltage isolation between the backplane and the outputs tested at 1500 Volts AC and it has a total heat dissipation of 7.6 Watts. It has a UL-A196, CSA, and C-UL Class I, Division 2 Hazardous Environment ratings, and it is CSA and UL-certified. When operational, the 1746-OB16 has a working temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) at 5 to 95% non-condensing humidity surrounding and it is designed to withstand a 30G operational shock and a 2.5G operational vibration at 57 to 200 Hertz.





Technical specifications:

Manufacturer AB
Brand Allen-Bradley
Part Number/Catalog No. 1746-OB16
Series SLC 500
Module Type Digital DC Output Module
Voltage Range 10-50 Volts DC Source
Outputs 16
Current/Output 0.5 or 0.25 amps
Current/Module 8 or 4 amps
Backplane Current (5 Volts) 280 milliamps
Current/Module (30 Celsius) 9 amps
Applications High Current
Step Response 60 milliseconds in, 2.5 milliseconds out
Heat Dissipation 7.6 Watts



MORE INFORMATION



DELIVERY



Logistic partners UPS, FedEx and DHL



International delivery available



Same day dispatch from group stock





WARRANTY



All parts new are covered by Shenzhen Viyork 12 month warranty





RETURNS



No hassle returns policy



Dedicated customer support team





PAYMENT





Trade credit



We understand that credit is a necessary part of business and offer credit agreements on request, subject to status.





Payment options



We accept Bank transfers and the following methods of payment:



Western Union PayPal VISA




Pls contact us:

Company: Shenzhen Viyork Technology CO.,LTD
Cotact:Miss Liu
Moblie/WhatsApp: 0086-13826534820
Email: shenzhenviyork@163.com
Skype:live:.cid.ba9401e01ca235c2

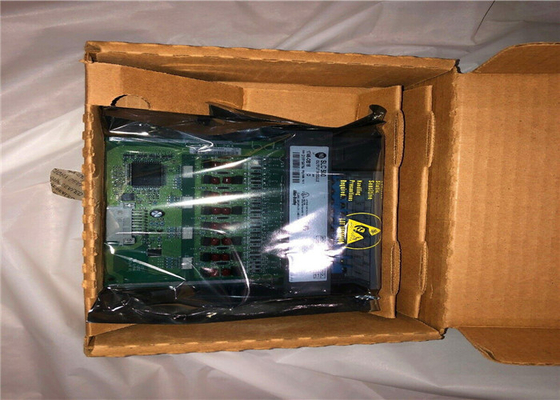

ALLEN BRADLEY 1746-OB16 OUTPUT MODULE SERIES D 10-50VDC - NIB 0

ALLEN BRADLEY 1746-OB16 OUTPUT MODULE SERIES D 10-50VDC - NIB 1

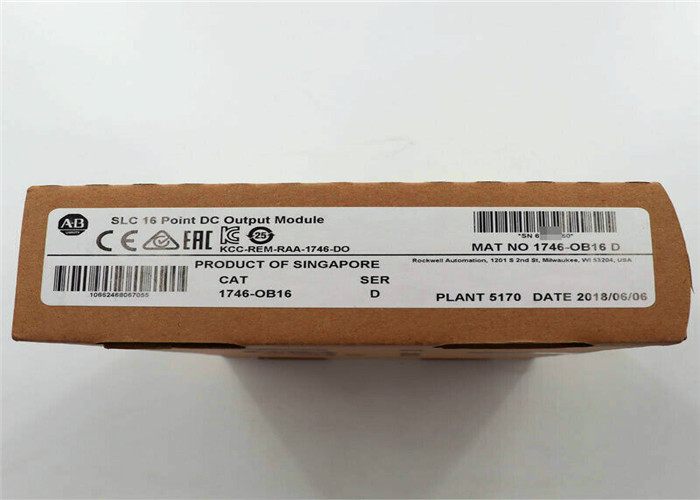

ALLEN BRADLEY 1746-OB16 OUTPUT MODULE SERIES D 10-50VDC - NIB 2

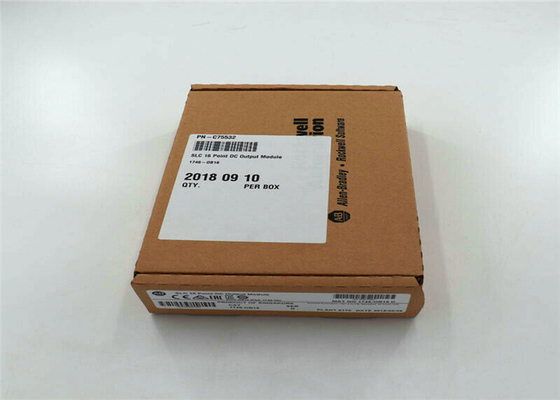

ALLEN BRADLEY 1746-OB16 OUTPUT MODULE SERIES D 10-50VDC - NIB 3
