Allen Bradley 1746-NT8 Ser A Thermocouple MV Input Module SLC 500 1746NT8 (A)

I'm Online Chat Now
Great communication., A+ pleasure to do business with, Highly recommend.

—— Michael

Great Suppliers it’s a pleasure to work with you

—— David

quick shipping works great thanks

—— Elaine

Allen Bradley 1746-NT8 Ser A Thermocouple MV Input Module SLC 500 1746NT8 (A)

Allen Bradley 1746-NT8 Ser A Thermocouple MV Input Module SLC 500 1746NT8 (A)
Allen Bradley 1746-NT8 Ser A Thermocouple MV Input Module SLC 500 1746NT8 (A) Allen Bradley 1746-NT8 Ser A Thermocouple MV Input Module SLC 500 1746NT8 (A) Allen Bradley 1746-NT8 Ser A Thermocouple MV Input Module SLC 500 1746NT8 (A) Allen Bradley 1746-NT8 Ser A Thermocouple MV Input Module SLC 500 1746NT8 (A)

Large Image :  Allen Bradley 1746-NT8 Ser A Thermocouple MV Input Module SLC 500 1746NT8 (A) Get Best Price

Product Details:

Place of Origin: USA
Brand Name: AB
Certification: CE
Model Number: 1746-NT8

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: 1-500USD
Packaging Details: orginal box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 30 PCS/ PER Month
Detailed Product Description
Brand: AB Model: 1746-NT8
Type: I/O Adapter Module Origin Of Country: USA
Step Response: 400 Milliseconds Resolution: 16 Bits In, 14 Bits Out
High Light:

allen bradley memory module

,

plc processor module



Allen Bradley 1746-NT8 Ser A Thermocouple mV Input Module SLC 500 1746NT8 (A)



Quick Detials



  • ALLEN BRADLEY
  • 1746-NT8
  • 1746NT8
  • INPUT MODULE
  • SLC 500
  • 8 POINT
  • ANALOG
  • 24 VDC
  • THERMOCOUPLE / MV
  • one year warranty



SPECIFICATIONS



The Allen-Bradley 1746-NT8 is a SLC 500 Thermocouple/mV Analog Input Module. This Thermocouple/mV Analog Input Module has 8 Inputs and a Backplane Current (5 Volts) of 120 milliamps.



About 1746-NT8

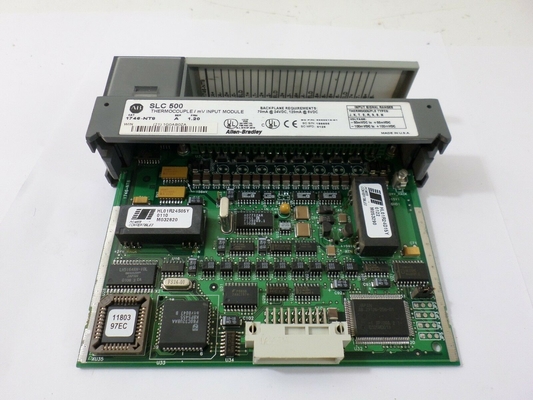

The 1746-NT8 SLC 500 Thermocouple/mV Analog Input Module by Allen-Bradley is an 8-channel chassis-installed module which stores thermocouple/mV analog data that has been digitally converted for retrieval by any SLC 500 processors. It has 8 isolated input channels with a backplane rating of 120mA at 5V DC and one of 70mA at 24V DC with an overall backplane power of 2.28W. The 1746-NT8 uses a Delta-Sigma signal conversion method and it has a digital low pass filter with selectable programmable filter frequencies. Its normal mode rejection frequency between the terminals is greater than 100dB at 50-60 Hz and its common mode rejection frequency between inputs and ground is also above 100dB at 50-60 Hz. The 1746-NT8 module automatically calibrates itself from power approximately every 2 minutes after power up. It offers input overvoltage protection at ±30V DC and 600W pulsed for 1ms and provides 12.5V DC circuit isolation tested at 500V DC for 1 minute between inputs and the chassis ground and between the inputs and backplane.

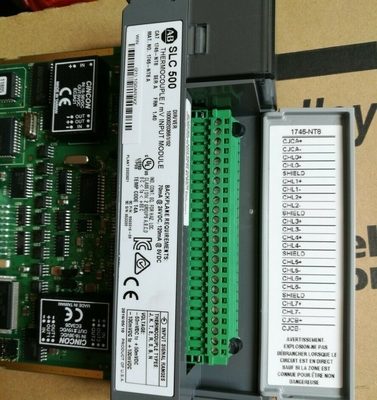

The 1746-NT8 has 9 green LED lights that indicate a channel status and the module’s status. It uses the 1746-RT34 (RTB) removable terminal block for connection to 8 thermocouple or analog input devices, and on the RTB there 1746-NT8The are 2 cold-junction compensation (CJC) sensors with an accuracy of ±1.72°C. The 1746-NT8 has various selectable input types and the module’s overall input impedance is greater than 10 M Ohms. Any input devices connected to it must have an impedance of fewer than 100 Ohms to meet the accuracy level. The 1746-NT8 offers a selectable open-circuit detection with 1 cycle per channel and an overall input stem response time of 400ms. The module has a functional temperature range between 0°C and 60°C at 5-95% humidity without condensation and is UL and CUL-approved.





Technical specifications:

Manufacturer AB
Brand Allen-Bradley
Part Number/Catalog No. 1746-NT8
Series SLC 500
Module Type Thermocouple/mV Analog Input Module
Inputs 8
Backplane Current (5 Volts) 120 milliamps
Backplane Current (24 Volts) 70 milliamps
Update Time 356 milliseconds-4.05 seconds
Step Response 400 milliseconds
Resolution 16 bits in, 14 bits out
Step Response 60 milliseconds in, 2.5 milliseconds out
