1746-NR4 B FRN 5 SLC 500 Allen Bradley Analog Input Module RTD Resistance

I'm Online Chat Now
Great communication., A+ pleasure to do business with, Highly recommend.

—— Michael

Great Suppliers it’s a pleasure to work with you

—— David

quick shipping works great thanks

—— Elaine

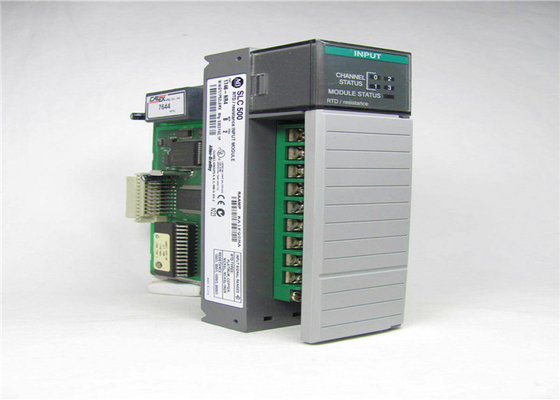

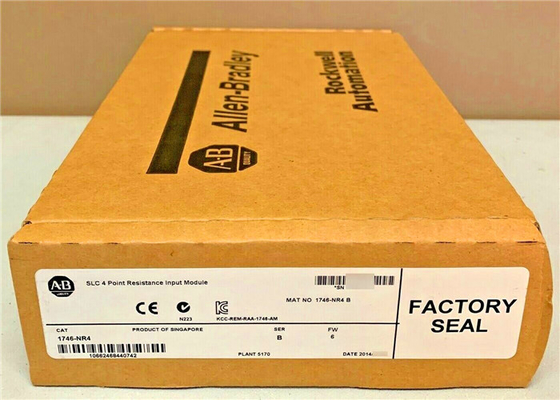

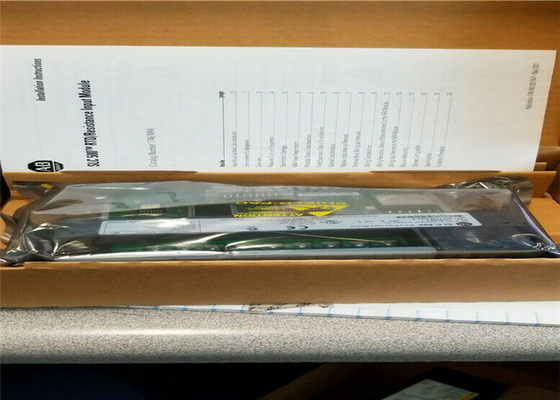

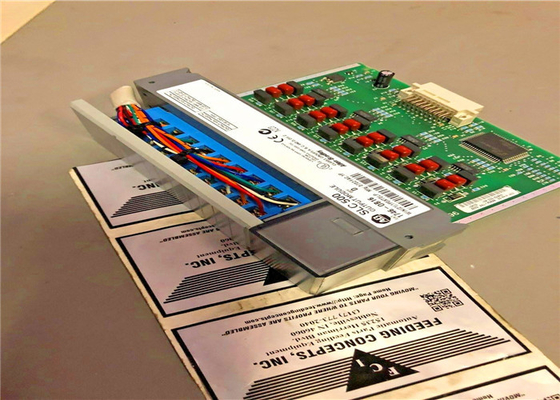

1746-NR4 B FRN 5 SLC 500 Allen Bradley Analog Input Module RTD Resistance

1746-NR4 B FRN 5 SLC 500 Allen Bradley Analog Input Module RTD Resistance
1746-NR4 B FRN 5 SLC 500 Allen Bradley Analog Input Module RTD Resistance 1746-NR4 B FRN 5 SLC 500 Allen Bradley Analog Input Module RTD Resistance 1746-NR4 B FRN 5 SLC 500 Allen Bradley Analog Input Module RTD Resistance 1746-NR4 B FRN 5 SLC 500 Allen Bradley Analog Input Module RTD Resistance

Large Image :  1746-NR4 B FRN 5 SLC 500 Allen Bradley Analog Input Module RTD Resistance Get Best Price

Product Details:

Place of Origin: USA
Brand Name: AB
Certification: CE
Model Number: 1746-NR4

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: 1-500USD
Packaging Details: orginal box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 30 PCS/ PER Month
Detailed Product Description
Brand: AB Model: 1746-NR4
Type: I/O Adapter Module Origin Of Country: USA
Inputs: 4 Backplane Current: 50 Milliamps
High Light:

allen bradley memory module

,

plc processor module

New Allen Bradley 1746-NR4 B FRN 5 SLC 500 Input Module RTD Resistance



Quick Detials



  • ALLEN BRADLEY
  • 1746-NR4
  • 1746NR4
  • INPUT MODULE
  • 4 POINT
  • ANALOG
  • RTD/RESISTANCE
  • SLC500
  • CURRENT LOAD: 50MA @ 5V
  • 50MA @ 24V; BANDWIDTH: 2.62-65.5HZ
  • one year warranty



SPECIFICATIONS

The 1746-NR4 is a SLC 500 RTD/Resistance Analog Input Module. This RTD/Resistance Analog Input Module has 4 Inputs and a Backplane Current of 50 milliamps.



About 1746-NR4

The 1746-NR4 SLC 500 RTD/resistance input module has 4 channels available that are backplane-isolated. The module’s A/D conversion method is sigma-delta modulation and you can use any I/O module slot except slot 0 for its I/O chassis location. The 1746-NR4 also comes with input filtering, particularly a low-pass digital filter that has programmable notch (or filter) frequencies. LED status indicators are present on the 1746-NR4 module, specifically 5 indicators made up of 1 indicator for the status of the module itself and 4 indicators for the module’s channels, with 1 indicator for every channel. RTD types of this module are nickel iron, nickel, copper, and platinum. Note that this module does not require an external power supply and it does a self-calibration automatically when the filter frequency, input type, or excitation current, or when a channel is enabled.

The backplane current consumptions of the 1746-NR4 module are 50 mA each at both 5 Volts DC and 24 Volts DC, and its maximum backplane power consumption is 1.5 Watts, with 0.3 Watts at 5 Volts DC and 1.2 Watts at 24 Volts DC. The maximum permanent overloads this module can handle are +/- 5 Volts DC for Volts and +/- 5 mA for the current and its maximum common-mode voltage is +/- 1 Volt. The optical isolation of the 1746-NR4 is 500 Volts DC for 1 minute between both the inputs and the chassis ground and between the inputs and the backplane. The 1746-NR4 also works at an operating temperature of 0 to 60 degrees Celsius and it can be stored at a non-operating temperature of -40 to 85 degrees Celsius.





Technical specifications:



Manufacturer AB
Brand
Part Number/Catalog No. 1746-NR4
Series SLC 500
Module Type RTD/Resistance Analog Input Module
Inputs 4
Backplane Current 50 milliamps
Bandwidth 2.62-65.5 Hertz
Update Time 17 milliseconds-1.2 seconds
Resolution 16 bits in, 14 bits out
Operating Temperature 0 to 60 degrees Celsius
Storage Temperature -40 to 85 degrees Celsius
Step Response 60 milliseconds in, 2.5 milliseconds out
Operating Isolation 500 Volts/1 minute
