Sealed Allen Bradley Module 1746-NO8V /A 2018 SLC 500 High Density Volt Output

Sealed Allen Bradley Module 1746-NO8V /A 2018 SLC 500 High Density Volt Output
Sealed Allen Bradley Module 1746-NO8V /A 2018 SLC 500 High Density Volt Output Sealed Allen Bradley Module 1746-NO8V /A 2018 SLC 500 High Density Volt Output Sealed Allen Bradley Module 1746-NO8V /A 2018 SLC 500 High Density Volt Output Sealed Allen Bradley Module 1746-NO8V /A 2018 SLC 500 High Density Volt Output

Large Image :  Sealed Allen Bradley Module 1746-NO8V /A 2018 SLC 500 High Density Volt Output Get Best Price

Product Details:

Place of Origin: USA
Brand Name: AB
Certification: CE
Model Number: 1746-NO8V

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: 1-500USD
Packaging Details: orginal box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 30 PCS/ PER Month
Detailed Product Description
Brand: AB Model: 1746-NO8V
Type: I/O Adapter Module Origin Of Country: USA
Update Time: 540 Microseconds/8 Channel Step Response: 1 Millisecond
High Light:

allen bradley memory module

,

plc processor module



New Sealed Allen Bradley 1746-NO8V /A 2018 SLC 500 High Density Volt Output Qty



Quick Detials



  • ALLEN BRADLEY

  • 1746-NO8V

  • 1746NO8V

  • 8 CHANNEL ANALOG VOLTAGE OUTPUT FOR SLC 500

  • one year warranty



SPECIFICATIONS



The 1746-NO8V is a SLC 500 Analog Output Module. This Analog Output Module has 8 Outputs and a Backplane Current (5 Volts) of 120 milliamps.



About 1746-NO8V

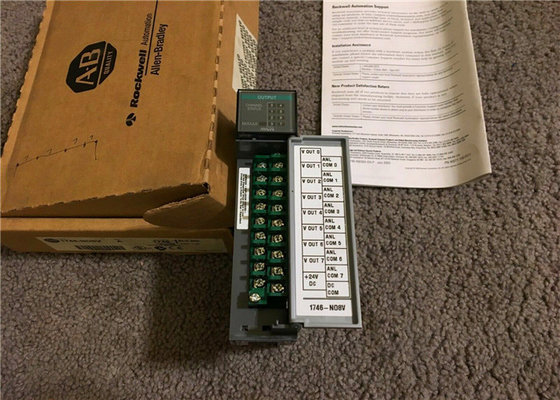

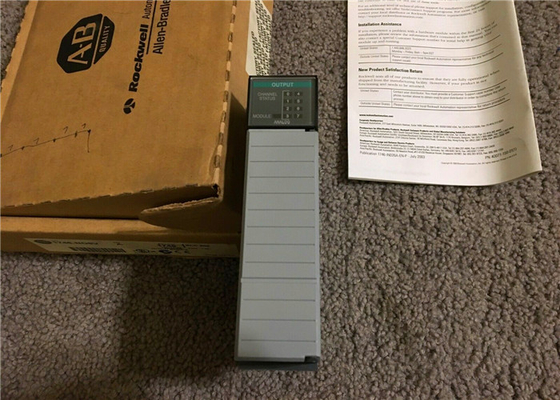

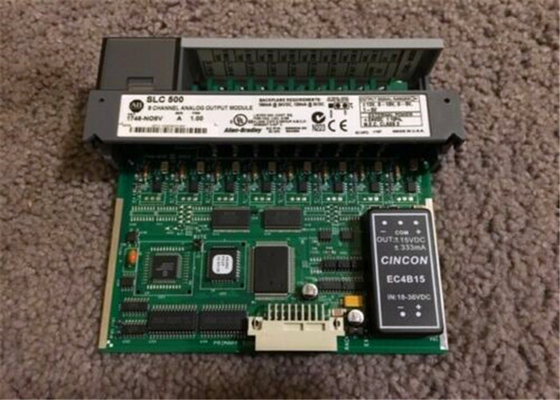

The 1746-NO8V SLC 500 Eight-Channel Analog Output Module by is an output module with 8 voltage outputs and it can be installed in any slot on 1746 I/O chassis. It has 8 voltage outputs with 8 single ended output channels and backplane ratings of 120mA at 5V DC, 160mA at 24V DC (using the J4 jumper set to RACK), and 0mA at 24V DC (using the J4 jumper set to EXT). The 1746-NO8V also has an overall backplane power output of 5.6W and a user-optional DC power source with a power rating of 24V DC. It has an output voltage range within ±10.25V DC and uses an R-2R Ladder Digital-to-Analog Converter with a Channel resolution of 16-bits (320µV/count). The 1746-NO8V has an output step response time of 1ms and it uses approximately 5ms to update signals on all 8 channels.

The load range on the 1746-NO8V’s outputs can go above 1KΩ and the maximum load current on the outputs is 10mA. The 1746-NO8V has an output impedance less than 1Ω and a 2.5% (±10.25V) over-range capability. It offers an overall output accuracy of 0.2% with a ±33 ppm/°C drift accuracy and a gain error of 0.15% with an OFFSET drift error of ±0.53 LSB/°C. The 1746-NO8V offers circuit isolation between the field wiring and the backplane to protect the chassis and the processor is tested at 500V DC and uses LED lights to indicate the module and channel status. It has a 0-60°C operational temperature range at a 5-95% non-condensing relative humidity and it is CUL and CE-certified for use in Class I, Division 2 Hazardous Locations. The 1746-NO8V has an operational shock rating of 30G and a vibration of 5G at 10-500Hz.





Technical specifications:

Manufacturer AB
Brand
Part Number/Catalog No. 1746-NO8V
Series SLC 500
Module Type Analog Output Module
Outputs 8
Backplane Current (5 Volts) 120 milliamps
Backplane Current (24 Volts) 160 milliamps
Update Time 540 microseconds/8 channel
Step Response 1 millisecond
Resolution 16 bits in, 14 bits out
Step Response 60 milliseconds in, 2.5 milliseconds out
