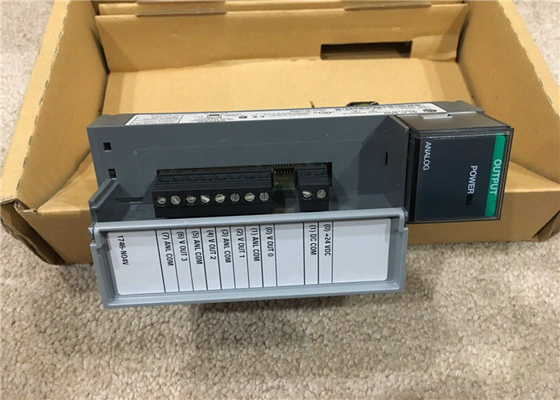

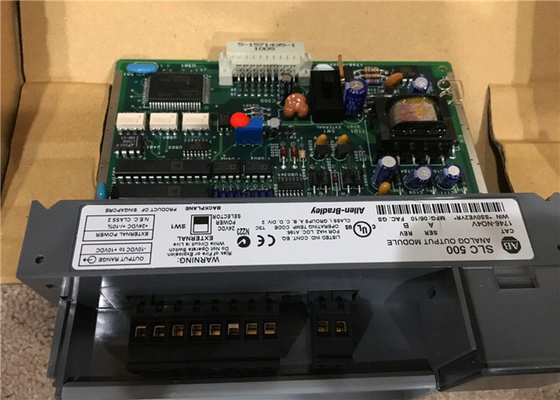

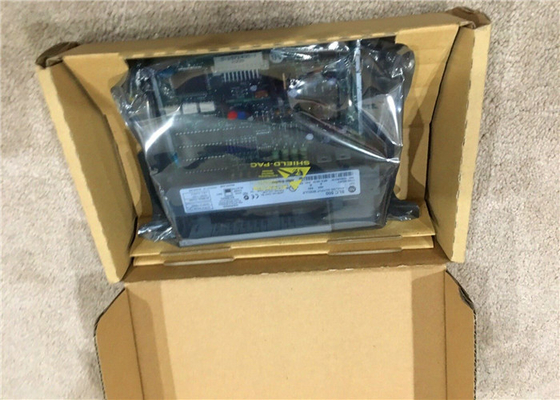

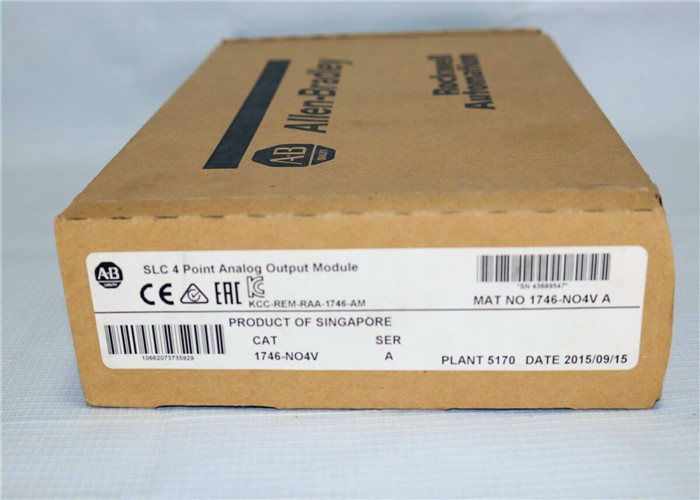

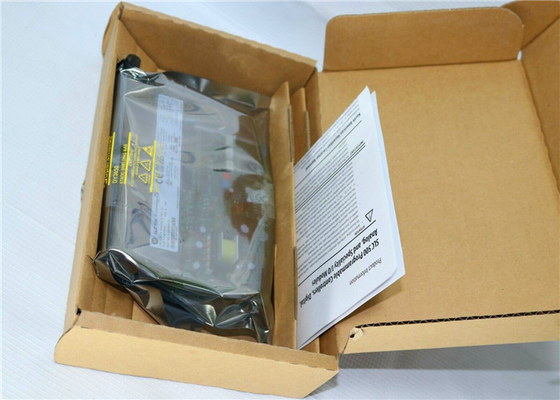

1746-NO4V Ser A Digital Input Output Module SLC500 Analog Output Module

1746-NO4V Ser A Digital Input Output Module SLC500 Analog Output Module
1746-NO4V Ser A Digital Input Output Module SLC500 Analog Output Module 1746-NO4V Ser A Digital Input Output Module SLC500 Analog Output Module 1746-NO4V Ser A Digital Input Output Module SLC500 Analog Output Module 1746-NO4V Ser A Digital Input Output Module SLC500 Analog Output Module 1746-NO4V Ser A Digital Input Output Module SLC500 Analog Output Module

Large Image :  1746-NO4V Ser A Digital Input Output Module SLC500 Analog Output Module Get Best Price

Product Details:

Place of Origin: USA
Brand Name: AB
Certification: CE
Model Number: 1746-NO4V

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: 1-500USD
Packaging Details: orginal box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 30 PCS/ PER Month
Detailed Product Description
Brand: AB Model: 1746-NO4V
Type: I/O Adapter Module Origin Of Country: USA
Update Time: 512 Microseconds Resolution: 14 Bits
High Light:

allen bradley memory module

,

plc processor module



Allen Bradley 1746-NO4V Ser A SLC500 Analog Output Module Sealed Remanufactured



Quick Detials



  • ALLEN BRADLEY
  • 1746-NO4V
  • 1746NO4V
  • OUTPUT MODULE
  • 4 POINT
  • ANALOG
  • 10 VDC
  • SLC500
  • 4 VOLTAGE OUTPUTS
  • ±10 V DC
  • (NOT INDIVIDUALLY ISOLATED)
  • REQUIRES BOTH 5 VDC AND 24 VDC POWER FROM BACKPLANE/ETERNAL
  • 24 VDC POWER SUPPLY
  • one year warranty



SPECIFICATIONS



The 1746-NO4V is a SLC 500 Analog Output Module. This Analog Output Module has 4 Outputs and a Backplane Current (5 Volts) of 55 milliamps.



About 1746-NO4V

The 1746-NO4V is a 4-point, non-isolated SLC 500 standard analog voltage output module. Its output range of 1 to 5 Volts DC and its backplane currents are 55 mA at 5 Volts and 145 mA at 24 Volts. You can also use a 24 Volt DC external power supply with this module since it comes with an SW1 external power supply switch and if there is not enough power coming from the SLC power supply, some applications will require 21.6 to 26.4 Volts DC. The 1746-NO4V has a field wiring to backplane isolation of 500 Volts DC, and a maximum load reactance of 1 µF and maximum load current of 10 mA. The 1746-NO4V also comes with a 10 Volts DC full scale and a -10 to 10 Volt 1 LSB normal output range. The normal output range of the 1746-NO4V module is -10 to 10 Volts 1 LSB.

This module is a factory calibrated module and uses a 16-bit two’s complement binary communication format. The 1746-NO4V is enclosed in an open-type enclosure and it is mounted on a 1746 chassis, with a removable terminal block (RTB). It is also equipped with an LED status indicator and is compatible with a #14 AWG maximum wire size. Its update time is 512 µs for all the channels that are in parallel, and it has a step response time of 2.5 ms at 95%. The 1746-NO4V’s operating temperature ranges from 32 to 140 degrees Fahrenheit, its non-operating temperature ranges from -40 to 185 degrees Fahrenheit and its non-condensing relative humidity for operation and storage is 5 to 95%. The 1746-NO4V’s has a maximum overall accuracy drift of +/- 54 ppm/degrees Celsius of full scale.





Technical specifications:

Manufacturer AB
Brand
Part Number/Catalog No. 1746-NO4V
Series SLC 500
Module Type Analog Output Module
Outputs 4
Backplane Current (5 Volts) 55 milliamps
Backplane Current (24 Volts) 145 milliamps
Update Time 512 microseconds
Resolution 14 bits
Step Response 2.5 milliseconds
Resolution 16 bits in, 14 bits out
Step Response 60 milliseconds in, 2.5 milliseconds out
Indicators LEDs
