Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1746-NIO4V |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Update Time: | 512 Microseconds | Resolution: | 16 Bits In, 14 Bits Out |
| High Light: | allen bradley memory module,plc processor module |
||

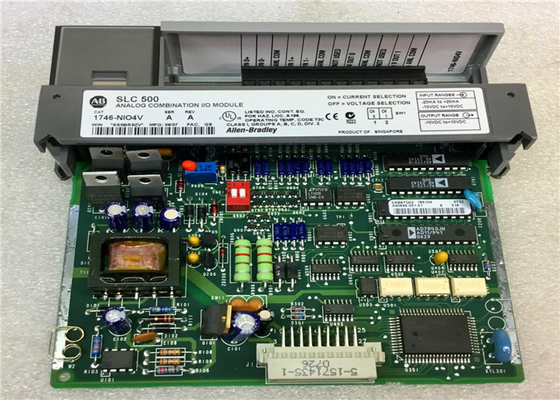

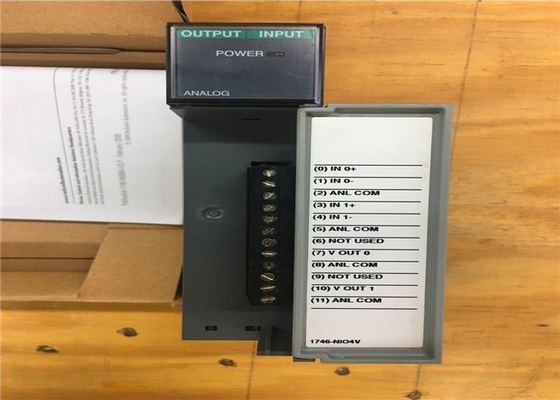

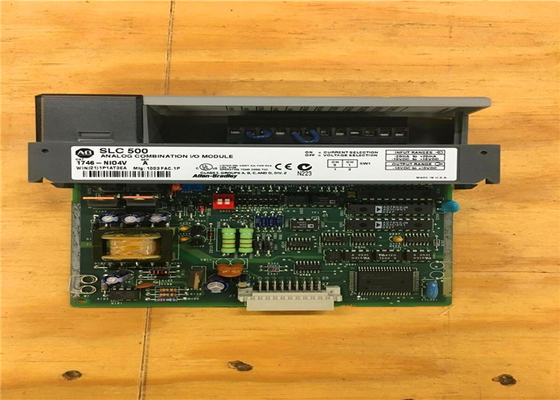

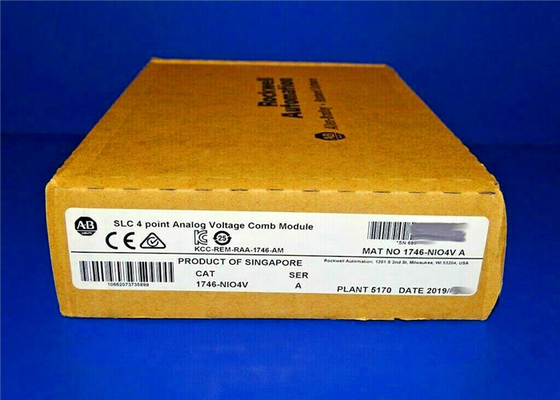

New Allen Bradley 1746-NIO4V Series A SLC 500 Combo 2-Inputs 2-Voltage Output
Quick Detials
one year warranty
SPECIFICATIONS
The 1746-NIO4V is a SLC 500 Analog Combination Module. This Analog Combination Module has 2 Inputs and 2 Outputs with a Backplane Current (5 Volts) of 55 milliamps and a Bandwidth of 10 Hertz.
The 1746-NIO4V SLC 500 Analog Combined I/O Module by is an I/O module installed on the 1746 Chassis that has 2 user-selectable (per channel) current or voltage inputs and 2 voltage outputs. It has 2 current-loop inputs with a normal rating of -20 to 20mA at a 250 Ohm impedance and an input accuracy of ±0.642% at a drift rate of 79 ppm/5 degrees Celsius. Its two input points also have voltage ratings of -10 to 10 Volts DC with an impedance of 1M Ohm and a 10 Volt DC full-scale resolution of 305.176 µV per LSB.
The voltage inputs have an accuracy of ±0.504%, an overall drift accuracy of ±63 ppm/degree Celsius, and a maximum gain error of ±0.461%. The inputs have an offset error of ±14 LSB at 0 to 60 degrees Celsius, and the 1746-NIO4V maximum overvoltage protection across the input terminals comes in at either 220 Volts AC or 220 Volts DC. It uses the R-2R Ladder Digital-to-Analog Converter (DAC) with a converter resolution of 14 bits at its voltage output and a response time of 2 milliseconds. The output has a load range greater than 1KΩ with a load reactance of 1µF and an overall output range of -10 to 10 Volts. The voltage has an overall accuracy of ±0.384% of a 10 Volt DC full-scale voltage and a maximum drift accuracy of ±54 ppm per degree Celsius. The 1746-NIO4V also has a maximum gain error of ±0.374% with a drift error of ±47 ppm/ degree Celsius and an output offset error of ±11 LSB. The 1746-NIO4V offers Field Wiring-to-Backplane Isolation at 500 Volts DC and uses the Shielded Belden #8761 recommended cable with a rated 14 AWG size.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1746-NIO4V |
| Series | SLC 500 |
| Module Type | Analog Combination Module |
| Inputs | 2 |
| Outputs | 2 |
| Backplane Current (5 Volts) | 55 milliamps |
| Backplane Current (24 Volts) | 115 milliamps |
| Bandwidth | 10 Hertz |
| Update Time | 512 microseconds |
| Resolution | 16 bits in, 14 bits out |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| Mounting | Rack mount |
