| Brand: | AB | Model: | 1746-NIO4I |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Bandwidth: | 10 Hertz | Tested Voltage Isolation: | 500 Volts |
| High Light: | allen bradley memory module,plc processor module |
||

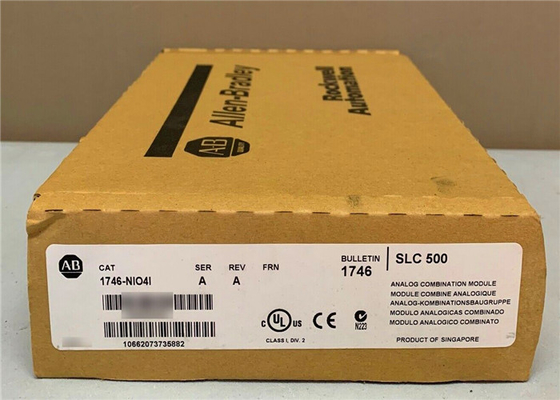

New! 1746-NIO4I Ser. A SLC 500 Analog Combination I/O Module
Quick Detials
ALLEN BRADLEY
1746-NIO4I
1746NIO4I
I/O MODULE
2 POINT INPUT
2 POINT OUTPUT
21 AMP MAX
24 VDC
HIGH RESOLUTION
4 CHANNEL COMBINATION
2 ANALOG INPUTS ±10 V DC OR ±20 MA
2 ANALOG CURRENT OUTPUTS 0-20 MA
one year warranty
SPECIFICATIONS
The 1746-NIO4I is a SLC 500 Analog Combination Module. This Analog Combination Module has 2 Inputs and 2 Outputs with a Backplane Current (5 Volts) of 55 milliamps and a Bandwidth of 10 Hertz.
The 1746-NIO4I SLC 500 Four Channel Analog I/O module by is an I/O combination module which comes with 2 inputs and 2 output points in a single slot module. It has 2 differential voltage or current input points and 2 current outputs with an overall backplane current draw of 55mA at 5 Volts and 14 5mA at 24 Volts. Its points have a common mode voltage of -20 to 20 Volts with a common module rejection signal of 105 dB at 60 Hertz and a Normal mode rejection signal of 55dB at 60 Hertz. The 1746-NIO4I uses the Sigma-Delta ADC converter with a converter resolution of 16 bits, ±1 LSB, and 0.01% repeatability and Non-Linearity. Its normal input current ranges between -20 and +20 mA with a current impedance of 250 Ohms and a resolution of 1.22µA per LSB. The 1746-NIO4I has an overall accuracy of ±0.642% at 0 to 60 degrees Celsius with a drift accuracy of +79 ppm/5 degrees Celsius and maximum gain and drift errors of ±0.556% and ±67ppm/ degrees Celsius.
The 1746-NIO4I also has a voltage input rating of -10 to 10 Volts DC and a 760 KOhms voltage impedance at a resolution of 305µV per Least Significant Bit (LSB). It also has an accuracy of ±0.504%, and a drift accuracy and error of ±63 ppm/degree Celsius and ±57 ppm/degree Celsius. The 1746-NIO4I offers overvoltage at either 220 Volts AC (RMS) or 220 Volts DC (continuous). Its 6 current outputs have a load range of 0 to 500mA with its normal range at 0-20 mA and a 5% over-range capability at 2.56348µA per LSB signal resolution. The 1746-NIO4I also has an overall accuracy of ±0.541% with a drift accuracy of ±70 ppm/degree Celsius and a gain and offset error of ±0.516% and ±12 LSB. The entire module has a 500 Volt-tested isolation between fields in the wiring-to-backplane isolation and it has an aggregate update time of 512µs for all channels. The 1746-NIO4I’s operational temperature ranges between 0 and 60 degrees Celsius at a 5 to 95% non-condensing relative humidity.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1746-NIO4I |
| Series | SLC 500 |
| Module Type | Analog Combination Module |
| Inputs | 2 |
| Outputs | 2 |
| Backplane Current (5 Volts) | 55 milliamps |
| Backplane Current (24 Volts) | 145 milliamps |
| Bandwidth | 10 Hertz |
| Update Time | 512 microseconds |
| Resolution | 16 bits in, 14 bits out |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| Tested Voltage Isolation | 500 Volts |
