Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1746-NI16V |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Bandwidth: | 6-250 Hertz | Inputs: | 16 |
| High Light: | allen bradley memory module,plc processor module |
||

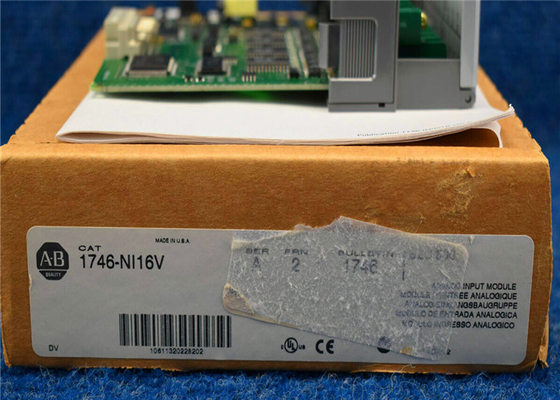

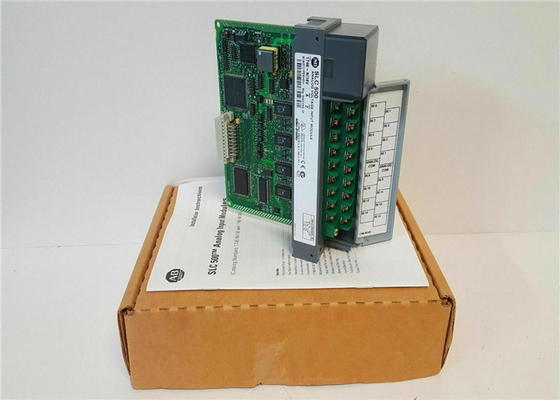

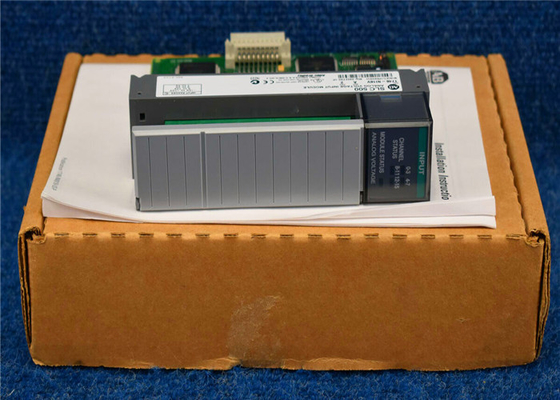

Allen Bradley 1746-NI16V /A SLC 500 16-Channel Analog Input ±10V DC - Brand New!
Quick Detials
ALLEN BRADLEY
1746-NI16V
1746NI16V
INPUT MODULE
SLC 500
16 POINT
ANALOG VOLTAGE
10 VDC
one year warranty
Specifications:
The 1746-NI16V is a SLC 500 Analog I/O Module. This Analog I/O Module has 16 Inputs and a Backplane Current (5 Volts) of 125 milliamps. It has a Bandwidth of 6-250 Hertz and a Resolution of 16 bits.
About 1746-NI16V
The Allen Bradley 1746-NI16V is one edition of the SLC 500™ Analog Input Module series. The 1746-NI16V communicates with an SLC 500 processor through a parallel rear-facing interface, and receives power from the SLC 500 power supply via a backplane. Its operating temperature lies between -25 to 60 degrees Celsius (-13 to 140 degrees Fahrenheit), while its nonoperating temperature lies between -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). The relative humidity of this module ranges from 5% to 95% without condensation. This module belongs to a Voltage Category of-10 to +10 Volts DC. The backplane current at 5 Volts is 125 mA; at 24 Volts, this module's backplane current is 75 mA. The backplane power consumption of this module is 2.425 Watts max (0.625 Watts at 5 Volts DC and 1.8 Watts at 24 Volts DC). Removing or inserting a module while a power source is connected can cause an electric arc to occur; remember to disconnect the power before removing or inserting this module.
The Allen Bradley 1746-NI16V has 16 input channels and a 16-bit resolution. The common mode voltage range of this module is ±10.25 Volts relative to the analog common terminal. Its input impedance is 20 Ω and its AIFM Connector is 25-pin D-shell.
This module has Standard Cable Lengths of 0.5, 1, 2.5, and 5.0 meters. It has a Gain drift of 15 ppm/degree Celsius, and the Input offset drift of this module is 90 μV/°degree Celsius. The Input resolution of this module is 312 μV.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1746-NI16V |
| Series | SLC 500 |
| Module Type | Analog I/O Module |
| Inputs | 16 |
| Backplane Current (5 Volts) | 125 milliamps |
| Backplane Current (24 Volts DC) | 75 milliamps |
| Bandwidth | 6-250 Hertz |
| Step Response | 9-630 milliseconds |
| Applications | Combination 120 Volts AC I/O |
