Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1746-IV16 |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Voltage Range: | 10 To 30 Volts DC Source | Applications: | Combination 120 Volts AC I/O |
| High Light: | allen bradley memory module,plc processor module |
||
New | 1746-IV16 | SLC 500 | 24V DC | Input Module | 16-Channel | So...
Quick Detials
ALLEN BRADLEY
1746-IV16
1746IV16
INPUT MODULE
DIGITAL
16 INPUTS
10-30 VDC SINK
85 MA BACKPLACE CURRENT LOAD AT 5 VDC
GENERAL PURPOSE
one year warranty
Specifications:
The 1746-IV16 is a SLC 500 Digital DC Input Module. This Digital DC Input Module has a Voltage Range of 10-30 Volts DC Source and 16 Inputs. It is intended for General Purpose DC Inputs Applications.
About 1746-IV16

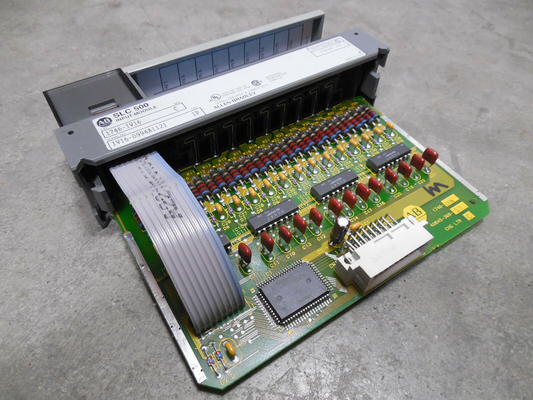

The 1746-IV16 is an SLC 500 digital DC input module with an operating voltage range of 10 to 30 Volts DC (sourcing voltage). It has 16 inputs with 16 points per common group and it requires a backplane current load of 0.085 Amps at 5 Volts DC. It has a maximum signal delay of 8 milliseconds in both the on and the off states. The 1746-IV16 has a maximum off-state current and voltage of 1 mA and 5 Volts DC. It has a nominal input current of 8 mA at 24 Volts DC and a maximum power dissipation of 3.6 Watts. It finds applications in general-purpose DC inputs in an SLC 500 system. The 1746-IV16 module is responsible for receiving and storing digitally-converted analog data into its data image table to be retrieved by all the modular and fixed SLC 500 processors. It supports connections from up to 8 sensors or actuators for various applications.

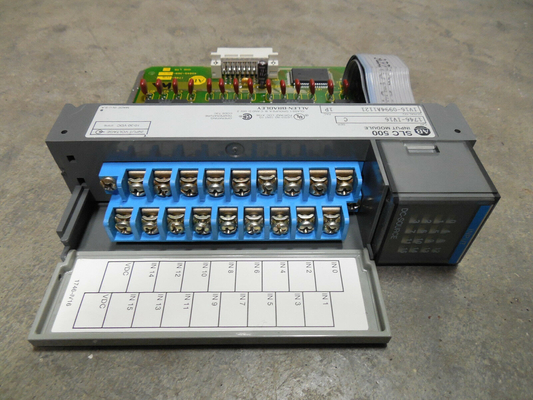

The 1746-IV16 module comes with removable terminal blocks, eliminating the need to disconnect any of the wires and making module replacement easy. It also includes filter circuitry and optical coupling for signal noise reduction. The 1746-IV16 module input values can be easily accessed by SLC 500 processors that use Ladder Logic programming. Troubleshooting becomes easier with LED indicators that show input status ratings. The SLC 500 system uses a sharing-based hardware platform which includes various combinations of digital and analog I/O, thus saving cost and space. The 1746-IV16 is intended for use in an environment with a 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) temperature range and a 5 to 95% noncondensing relative humidity range.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1746-IV16 |
| Series | SLC 500 |
| Module Type | Digital DC Input Module |
| Voltage Range | 10 to 30 Volts DC Source |
| Inputs | 16 |
| Backplane Current (5 Volts DC) | 85 milliamps |
| Signal delay | 8 milliseconds |
| Off State Current | 1 milliamps |
| Applications | General Purpose DC Inputs |
| Applications | Combination 120 Volts AC I/O |
