Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1746-IN16 |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Operating Voltage: | 24 Volts AC/DC Sink | Inputs: | 16 |
| High Light: | allen bradley memory module,plc processor module |
||

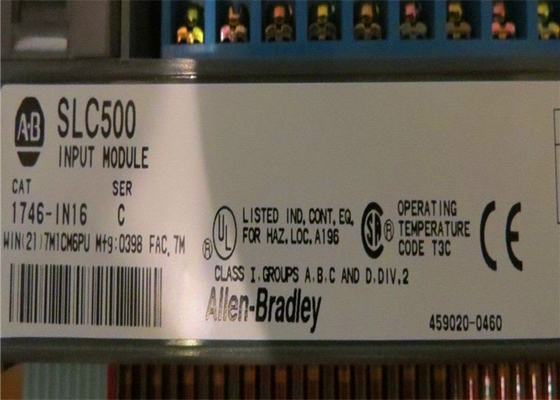

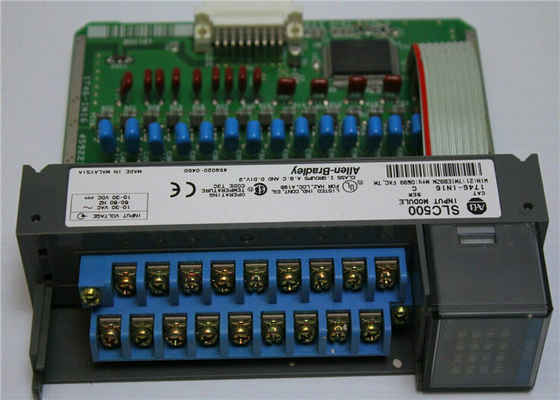

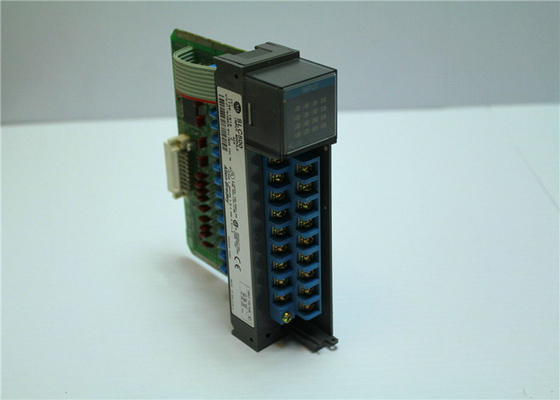

New 1746-IN16 The 1746-IN16 SLC 500 Digital AC Input
Quick Detials
one year warranty
Specifications:
The 1746-IN16 is a SLC 500 Digital AC Input Module. This Digital AC Input Module has an Operating Voltage of 24 Volts AC/DC Sink and 16 Inputs with a Backplane Current (5 Volts DC) of 85 milliamps.
About 1746-IN16
The 1746-IN16 SLC 500 AC/DC Input Module by is an AC/DC module with sixteen 24V AC/DC inputs and is fitted with available slots on the 1746 Chassis. It has 16 inputs with 16 points per common and has 10-30V DC or 10-30V AC operational voltage. It has a backplane current of 0.085A at 5V DC and a signal delay time of 15ms for both ON and OFF in DC voltage mode, and 25ms for both ON and FF in AC voltage mode. It has a maximum 3V AC drop voltage in the AC OFF state and 3V DC voltage loss in the DC OFF state and it has a 1mA current leakage for both the AC and DC OFF state.
The nominal input current on each input is 8mA at 24V DC, and 24AC and it has a 0.02A maximum inrush current for the AC voltage mode only. It has 0.35W heat dissipation on each input points and overall heat dissipation of 6W on the whole module. The 1746-IN16 provides electro-optical isolation tested at 1500V between inputs terminals and control logic and offers Standard NEMA ICS 2-230 Noise Immunity rating. It has a practical temperature range between 0 and 60 °C at 5-95% non-condensing relative humidity and a non-operating temperature of -40-85 °C. The 1746-IN16 has a tested operational shock rating of 30G and is also tested and rated for an operational vibration of 2.5G at 57-200Hz.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1746-IN16 |
| Series | SLC 500 |
| Module Type | Digital AC Input Module |
| Operating Voltage | 24 Volts AC/DC Sink |
| Inputs | 16 |
| Backplane Current (5 Volts DC) | 85 milliamps |
| Signal delay | 15 or 25 milliseconds |
| Off State Current | 1 milliamps |
| Applications | General Purpose 125 Volts DC Inputs |
| I/O Connection | 1746-HT and 1746-HCA |
| Step Response | 100 milliseconds in, 2.5 milliseconds out |
