Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1771-HS3CR |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Dimensions: | 3.5 X 6.5 X 2.0 In (89 X 165 X 51 Mm) | Pulse Capture Time: | 50-9.999 Microseconds |
| High Light: | allen bradley memory module,plc processor module |
||

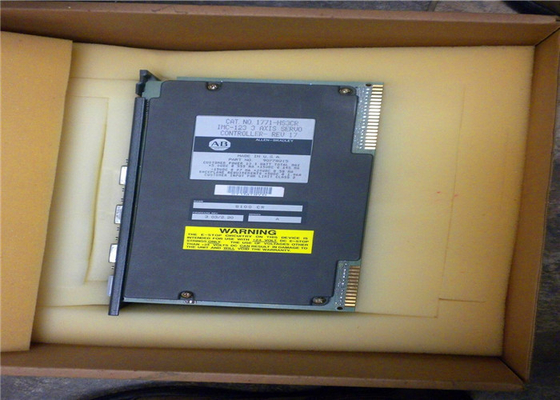

NEW ALLEN BRADLEY 1771-HS3CR 3 AXIS SERVO CONTROLLER REV017 SER A
Quick Detials
one year warranty
Specifications:
Allen Bradley PLC 5 3 Axis Servo Controller Module
About 1771-HS3CR
The 1771-HS3CR PLC5 IMC-123 3-Axis Servo Controller by is a 3-axis servo controller that can be installed in any 1771 I/O chassis. It comes in a package with a memory module, a power module, an encoder module, a resolver, and an optional hand-held pendant. The 1771-HS3CR is a unique servo controller with 3-axis capability, which uses the 120V AC, the 1A 1771-PS7 power supply module connected through the 1771-CAS, 9-pin connecting cable, and the 96KB 1771-HM3A battery-backed memory cartridges that are used for storing the controller’s AMP parameters and MML downloaded programs. The controller receives encoder feedback signals, resolver feedback signals, E-stop status and E-stop starting signals via an Axis E-stop, 50-pin I/O connector, which can also be used for providing fast I/O power.
The 1771-HS3CR uses the RS-232 connector port on the front-side for uploading and downloading of all MML programs or the AMP parameters to the battery-backed memory module, and it can also be used for connection to the T45 and T50 ODS via the hand-held pendant for debugging the MML programs and hardware connected to it. The controller provides encoder feedback via its isolated, 10V DC output and a 250 KHz differential, single-ended input. The 1771-HS3CR has an operating temperature range of around 0-60oC at a relative humidity range of 5-95% without condensation. The controller weighs approximately 1.36Kg, with net dimensions of 11in x 7in x 3in, and it is c-UL, C-TICK, and CE-certified.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1771-HS3CR |
| Module Type | 3 Axis Servo Controller Module |
| Fuse Voltage | 120 Volts |
| Max Input Frequency | 250 Kilohertz Differential Input |
| Outputs | +/- 10 Volt DC Analog Command |
| Slots | 2 Slots Per ES |
| Module Update Period | 2 ms/axis |
| Backplane Current | 1.7 Amperes |
| Wiring Arm | 1771-WB |
| Wiring Arm | 1771-WA |
| Pulse Capture Time | 50-9.999 Microseconds |
| Dimensions | 3.5 x 6.5 x 2.0 in (89 x 165 x 51 mm) |
