| Brand: | AB | Model: | 1771-ID |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Voltage Category: | 120 Volts AC/DC | Number Of Inputs: | 6 Inputs |
| High Light: | allen bradley memory module,plc processor module |
||

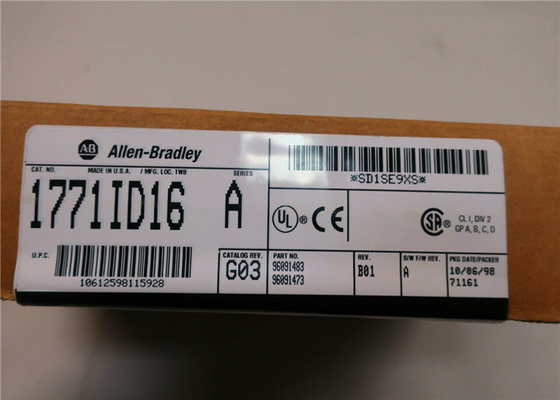

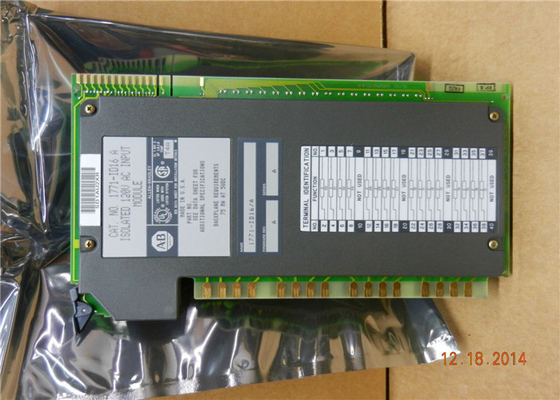

NEW Allen Bradley AB 1771-ID16 /A 1771-1D16 PLC-5 Digital Input Module
Quick Detials
one year warranty
Specifications:
Allen Bradley PLC 5 Digital AC/DC Input Module, 6 Inputs, 120 Volts AC/DC Voltage Category, 74 Miliamperes Backplane Current

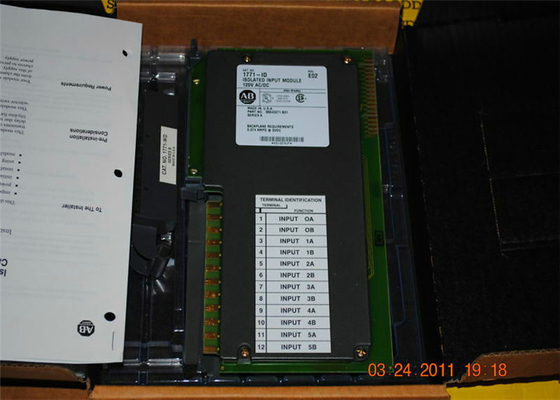

The 1771-ID is an isolated input module that is part of the 1771 Digital AC/DC Input Modules for 1771 PLC-5 Systems. It features a total of six inputs with a 120V AC/DC voltage category, and it has an operating voltage of 92-138V for both AC and DC. It receives power via the 1771 I/O chassis backplane fed by the power supply. It requires 74 mA of backplane current load from the output. Make sure to add all the module requirements on the I/O chassis to prevent overloading the backplane and power supply.
The 1771-ID Isolated AC/DC Input Module is ideal for Isolated-circuit multi-phase applications. It is designed for use with float switches, limit switches, pushbuttons, and selector switches. It features input filtering that improves the power quality by limiting the effects of voltage transients resulting from the electrical noise and/or contact bounce. This cost-effective feature leads to minimal electrically-related downtime, better performance and productivity, and longer product life.
The 1771-ID has a maximum off-state current of 1.7 mA. Due to filtering, signal delay is nominally 24 (±10) ms when AC inputs are turned ON or OFF; and 10(±4) ms when DC inputs are turned ON, and 20(±9) ms when DC inputs are turned OFF. Shipped with the 1771-ID Input Module is a field wiring arm with category number 1771-WD where connections to the module are made.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1771-ID |
| Module Type | Digital AC/DC Input Module |
| Number of Inputs | 6 Inputs |
| Voltage Category | 120 Volts AC/DC |
| AC Operating Voltage | 92-138 Volts |
| DC Operating Voltage | 92-138 Volts |
| Backplane Current | 74 Miliamperes |
| Max AC Off-State Current | 1.7 Miliamperes |
| Max DC Off-State Current | 1.7 Miliamperes |
| Typical AC Signal Delay (On) | 24 (+/- 10) ms |
| Typical DC Signal Delay (On) | 10 (+/- 4) ms |
| Typical AC Signal Delay (Off) | 24 (+/- 10) ms |
| Typical DC Signal Delay (Off) | 20 (+/- 9) ms |
| Dimensions | 3.5 x 6.5 x 2.0 in (89 x 165 x 51 mm) |
