Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1771-IFE |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Channel Update/Resolution: | 18 Milliseconds/8; 36 Milliseconds/16 | Voltage Range: | -10 To 10 Volts DC |
| High Light: | allen bradley memory module,plc processor module |
||

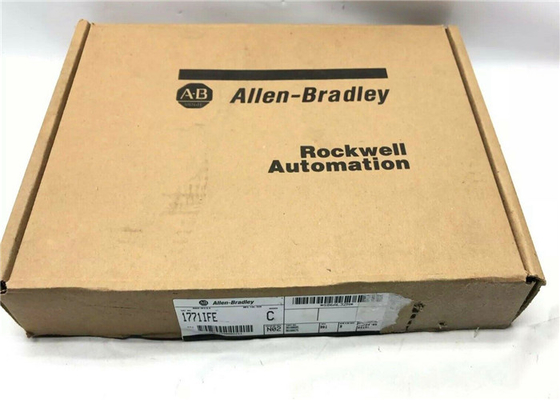

NEW 1771-IFE Allen Bradley 1771-lFE/C Analog Input Module NIB
Quick Detials
one year warranty
Specifications:
Allen Bradley PLC 5 Analog Input, Natural Binary or BDC Scaling to +/- 9999 Data Format, 750 Miliamperes Backplane Current, No External Power Required
About 1771-IFE

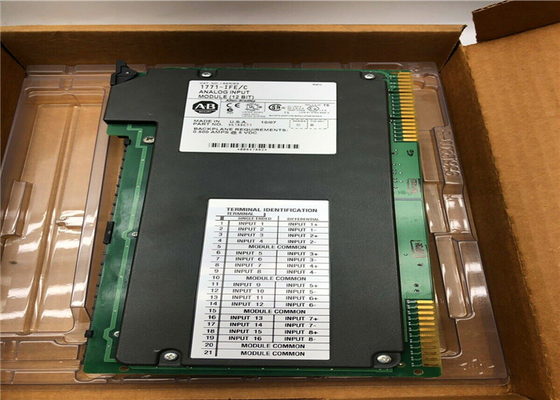

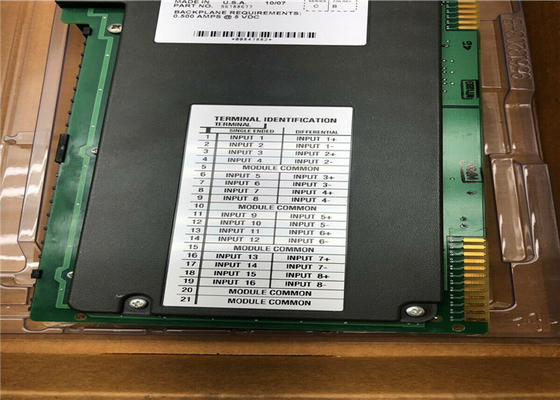

The 1771-IFE is a PLC 5 Analog Input Module. This module interfaces analog inputs with PLC processors using block transfer programming. It uses a 16-bit resolution and performs the required analog-to-digital conversions and vice versa to interface analog signals with PLC data table values. If input communication is disrupted, it can respond automatically to the fault with the default user configuration. Thus, it provides a predictable and safe response to a fault and limits the extent of the fault. The 1771-IFE has various applications such as temperature and pressure sensing, level sensing, and flow metering; it contains 16 single-ended or 8 differential selectable inputs. It has Natural Binary or BCD scaling to a ±9999 data format. It has a voltage range of -10 to 10 Volts DC and a current range of -20 to 20 mA. It has a backplane current load of 750 mA and a channel update time of 8 milliseconds for 8 channels, 36 milliseconds for 16 channels, and 12 bits plus sign resolution.
The 1771-IFE has a maximum power dissipation of 2.5 Watts and a thermal dissipation of 8.52 BTU/hour. It comes with a 1771-WG wiring arm to replace the module, eliminating the need to disconnect wiring. It requires one slot for installation in an I/O chassis and keying bands for correct installation is between pins 10 and 12 for the lower connector and pins 24 and 26 for the upper connector. The 1771-IFE module contains a green RUN and a red FAULT indicator light on the front panel. It contains optoelectrical isolation to protect the system circuits from electrical transients. It also contains an input filtering feature to reduce electrical noise.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1771-IFE |
| Module Type | Analog Input |
| I/O | 8 Differential or 16 Single-Ended |
| Data Format | Natural Binary or BDC Scaling to +/- 9999 |
| Channel Update/Resolution | 18 milliseconds/8; 36 milliseconds/16 |
| Voltage Range | -10 to 10 Volts DC |
| Current Range | -20 to 20 mA |
| Backplane Current | 750 miliAmperes |
| External Power Required | No |
| Wiring Arm | 1771-WG |
| Typical DC Signal Delay (On) | 10 milliseconds |
| Typical AC Signal Delay (Off) | 24 milliseconds |
| Typical DC Signal Delay (Off) | 20 milliseconds |
| Mounting | Rack Mountable |
