Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1771-IGD |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Typical DC Signal Delay (Off): | 20 (+/- 9) Ms | DC Operating Voltage: | 5.0-5.3 Volts |
| High Light: | allen bradley memory module,plc processor module |
||

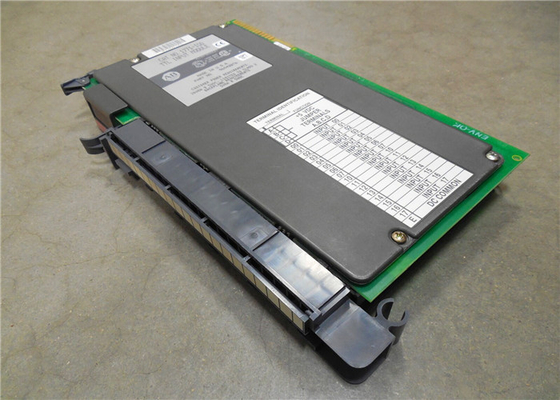

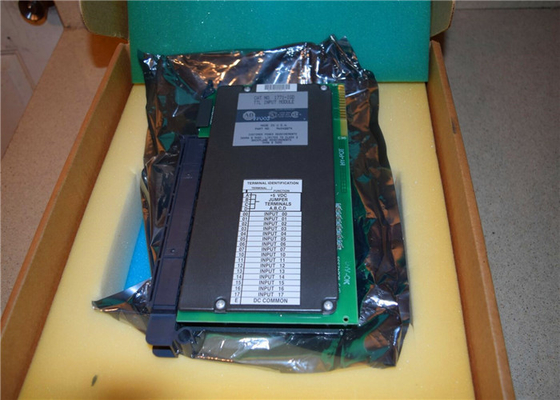

NIB ALLEN BRADLEY 1771-IGD TTL INPUT MODULE P/N 96042274 1771IGD
Quick Detials
one year warranty
Specifications:
Allen Bradley PLC 5 Digital DC Input Module, 16 Inputs, 5.0-5.3 Volts DC Operating Voltage, 130 Miliamperes Backplane Current
The 1771-IGD is a digital I/O module. This module has sixteen 5V DC TTL current sourcing input points available. The customer supply voltage of this module is 5V DC with +/-0.25V Class 2 and it comes with a maximum peak-to-peak ripple of 50 mV. The input voltage ratings of this module when HIGH = TRUE is 2-5.25V DC for ON and -0.2-0.8V DC for OFF and when LOW = TRUE, it is -0.2-0.8C DC for ON and 2-5.25V DC for OFF. The current sink requirements of this module are a maximum of 7 mA for source per input and a maximum of 0.8 mA for sink per input. The 1771-IGD module's backplane current is a maximum of 130 mA and current rating is 380 mA per module. The isolation voltage is 1500V AC RMS for 1 second.
This module has less than 1 ms of input signal delay a power dissipation that ranges from a minimum of 0.4 W to a maximum of 2.7 W and a thermal dissipation that has a minimum of 1.4 BTU/hr and a maximum of 9.2 BTU/hr. It comes with a 0.5 A 250V normal blow fuse to protect the 5V DC power supply and the input terminal of the module from power surges and other accidental applications of voltage that can cause damage. The 1771-IGD’s operating temperature ranges from 0-60 ??
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1771-IGD |
| Module Type | Digital DC Input Module |
| Number of Inputs | 16 Inputs |
| Voltage Category | 5 Volts DC, TTL |
| DC Operating Voltage | 5.0-5.3 Volts |
| Backplane Current | 130 Miliamperes |
| Max DC Off-State Current | N/A |
| Typical DC Signal Delay (On) | < 1 ms |
| Typical DC Signal Delay (Off) | < 1 ms |
| Wiring Arm | 1771-WH |
| Model Status | Earlier Model |
| Typical AC Signal Delay (Off) | 24 (+/- 10) ms |
| Typical DC Signal Delay (Off) | 20 (+/- 9) ms |
| Mounting | Rack Mountable |
