Product Details:
Payment & Shipping Terms:
|
Brand: | Mitsubishi | Model: | HC-KFS23G2 |
---|---|---|---|
Type: | AC Servo Motor | Voltage: | 118 VAC |
Rotated Speed: | 3000 RPM | Current: | 1.1 A |
Power: | 200 W | Origin Of Country: | Japan |

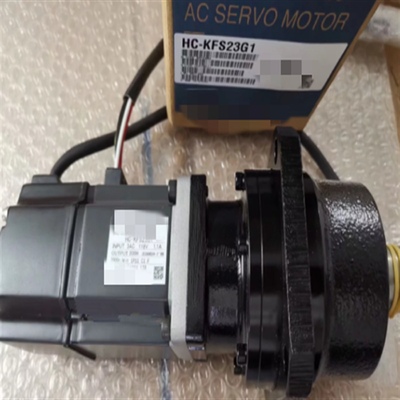

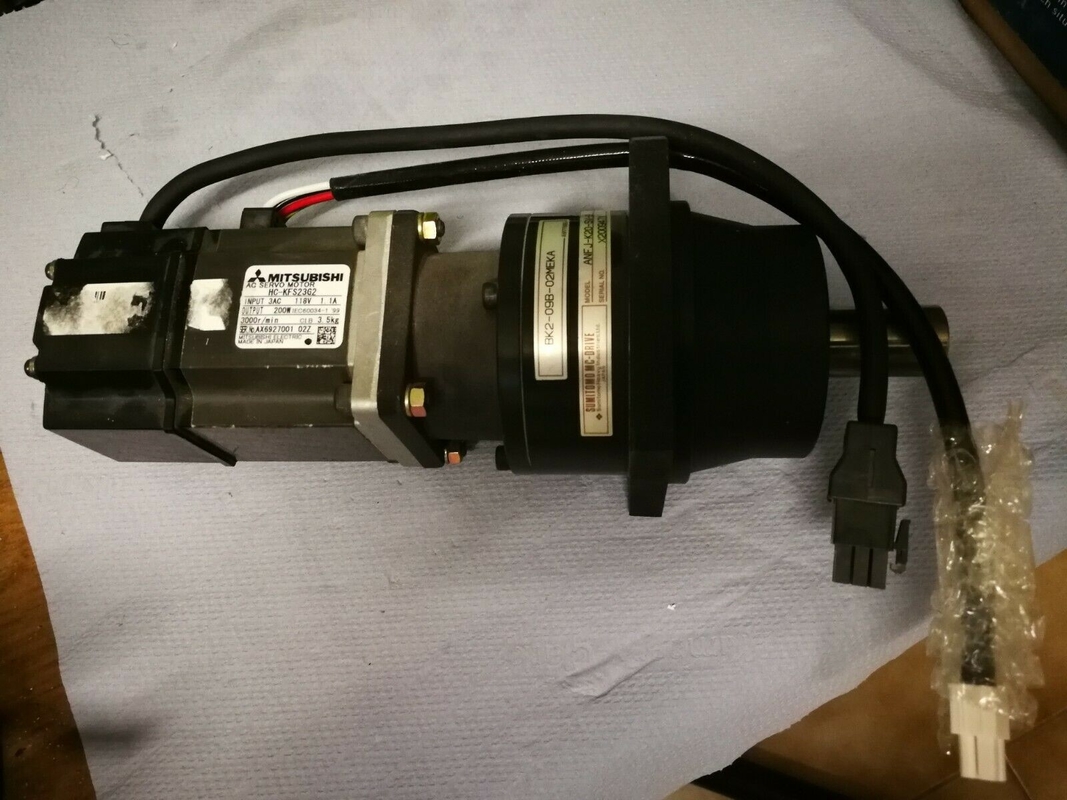

Mitsubishi HC-KFS23G2 AC Servo Motor 3 PHASE 3000RPM 200W 118V NEW
Specifications Of HC-KFS23G2
Description | HC-KFS23G2 is a Motors-AC Servo produced by Mitsubishi |
Brand | Mitsubishi |
Model | HC-KFS23G2 |
Servomotor Type | HC-KFS Series; Low inertia,small capacity,high resolution |
Rated Output | 0.2kW |
Rated speed | 3000 rpm; 200V |
Electromagnetic brake | None |
Reduction Gear | For precision application |
Shaft type | Standard (straight shaft) |
Compliance with Standard | Standard model |
Current | 1.1A |
Origin Of Country | Japan |
Condition | New |
Warranty | 1 Year |
Torque rating | 0.64NM |
Minimum Operating Temperature | 0 °C |
Maximum Operating Temperature | 40 °C |
Weight | 0.99 kg |
Height | 62 mm |
Width | 62 mm |
Depth | 129.5 mm |
Power: 0.4kw.
Purpose: high frequency braking resistor.
The use rate of the built-in regenerative brake of the transducer can be promoted.
When using the FR-ABR type brake resistor, the short circuit piece between the terminal PR-PX is removed. Does not remove the short circuit chip will lead to overheating of the brake resistor.
The utilization rate of the regenerative braking should be less than the allowable brake use rate in the above table HC-MFS/KFS23G2(1/9)
With the operating frequency of the brake resistor to reach 300 degrees C or higher, it is necessary to take protective measures and cooling.
MYS type resistor can be used. But please pay attention to the allowable brake use rate.
Do not remove the terminal P/+ and P1 between the short circuit chip, in addition to connecting the DC reactor.
The installation of thermal relay, to avoid overheating and burn the braking resistor. Max input / output points: 16 points.
Power supply voltage: 24VDC.
Input points: 8 points.
Output points: 8 points.
Output type: Transistor (source).
Power consumption: 20W.
Weight (kg):0.6.
Size (WxHxD) mm:130x90x87.
Developed a range of special function modules to meet the needs of different - analog I/O, high speed counter.
Positioning control to achieve the 16 axis, the pulse train output or for the J and K type thermocouple or Pt sensor developed the temperature module.
A total of 8 special function modules can be configured for each FX2n main unit.
Note recording function, Component annotation can be recorded in the program register.
Online program editor, online change the program will not lose the working hours or stop production operation.
RUN/STOP switch, running on panel / stop switch easy to operate.
Remote maintenance, remote programming software can monitor, upload or uninstall programs and data via modem communications
Password protection, using a eight digit password to protect your program.
Clock function and hour meter function, all of the PLC FX2N has a real-time clock standard.
Continuous scanning function, to define the operation cycle for the application of the continuous scan time.
Input filter adjustment function, you can use the input filter to smooth the input signal (in the basic unit x000 to x017).
Warranty: 1 Year, every part will be tested strictly and professionally before delivery. Pls. test it after receiving.
low value commercial invoice available, pls. leave a message if you need.
For more information, pls. contact with me by email nancy@viyorktech.com
