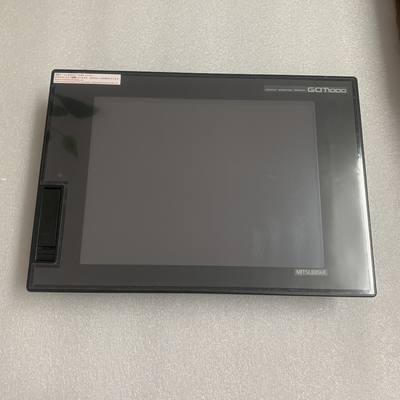

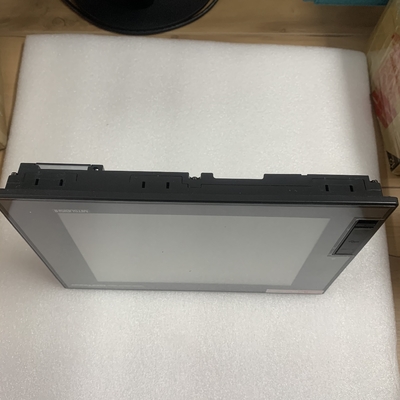

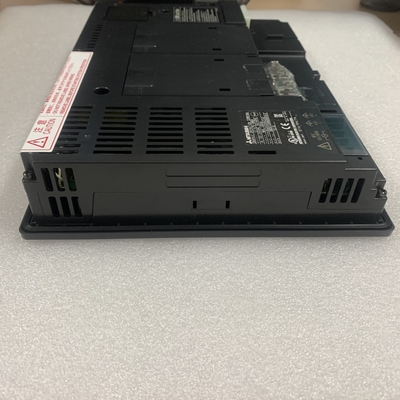

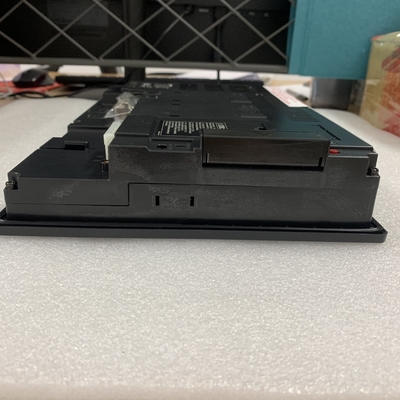

Mitsubishi GT1675-VNBA HMI Touch Screen GOT 1000 SERIES 10.4 TFT 640 X 480 11 MB 100-240VAC NEW AND ORIGINAL GOOD PRICE

Mitsubishi GT1675-VNBA HMI Touch Screen GOT 1000 SERIES 10.4 TFT 640 X 480 11 MB 100-240VAC NEW AND ORIGINAL GOOD PRICE

Descriptions

MITSUBISHI GT1675-VNBA Product information and technical parameters:
Brand: MITSUBISHI
Name: 10.4 inch touch screen
Model: GT1675-VNBA
Series: multimedia and advanced features and features of a variety of high-performance models.
Screen size: 10.4 inches.
Display color: 256 color or more color.
Mounting type: panel mounting type.
Resolution: VGA (640 x 480).
Display device: TFT color.
Host frame color: black.
Power type: AC100~240V.
Communication interface: with built-in RS-422.


High performance models with multimedia and advanced features and functionality (including embedded communications capabilities).
User storage capacity: 15MB (GT16__-VNB__:11MB).
With HOST USB and device USB port.
Standard Ethernet, RS-422/485 and RS-232 ports.
Support multimedia and video /RGB units.
Analog touch panel.
Do not let the touch screen surface with water drops or other soft things stick to the surface,
Otherwise, the touch screen is easy to mistake that there is a hand touch caused by surface acoustic wave screen is not allowed.
In addition to cleaning the dirt on the surface of the touch screen,
You can use a soft dry cloth or a cleaning agent to clean out the center of the screen carefully,
Or use a dry soft cloth dipped in industrial alcohol or glass cleaning fluid to clean the touch screen surface.


Touch screen response is slow if you use a hand or other touch to touch the surface acoustic wave touch screen,
This shows that it is likely that the touch screen system has been obsolete, the internal clock frequency is too low,

Or because there is water in the surface of the touch screen to make the touch screen mobile, rapid response recovery,
To replace or upgrade the system must, or use dry cloth touch screen on the surface of the water.
If the user is operating the touch screen, the direction of the touch move is to the left,
But the cursor of the system moves to the right,
The failure may be due to the connection of the control box and the touch screen connected to the connector or the touch screen,
Users as long as the direction of the re exchange of it.

Function: high performance and low price in the middle end model.
Picture size: 10.4 inches.
Resolution: VGA.
Display: TFT color.
Open frame type.
Panel color: white.
Power type: AC100~240V.
Middle end model of high performance and low price.
GT25 standard supports SD memory card and standard equipped with Ethernet, RS-232, RS-422/485, host/device USB interface MITSUBISHI GT1675-VNBA.
Even in the log, script, alarm, soft component data transmission, such as high load processing period, but also to achieve smooth operation of the screen GT1675-VNBA
Connect GOT front USB interface and computer,
Can be through the FA, the GOT machine programming, start and adjust the operation,
Save the trouble of opening the control cabinet and changing the cable MITSUBISHI GT1675-VNBA.


1, USB interface: device USB machine (Mini-B USB)
Can connect to the computer to transfer data.
2, USB interface: host USB (USB-A)
USB data can be transmitted through the USB memory or read log data, such as the GOT data, but also can be connected to the use of the mouse, keyboard.
3, the extension of the interface
Communication module and optional module can be installed MITSUBISHI GT1675-VNBA.
4, Ethernet interface
Up to 4 different manufacturers can be connected at the same time
FA machine.
5, RS-232 interface
Can connect all kinds of FA machine, bar code reader, serial printer.
6, RS-422/485 interface
Can be connected to a variety of FA machines, bar code reader.
7, SD memory card slot
Can save alarm and log data, such as a large number of data. Series: multimedia and advanced features and features of a variety of high-performance models.

Screen size: 8.4 inches.
Display color: 16 color.
Mounting type: panel mounting type.
Resolution: VGA (640 x 480).
Display device: TFT color.
Host frame color: black.
Power type: DC24V.
Communication interface: with built-in RS-422.


High performance models with multimedia and advanced features and functionality (including embedded communications capabilities).
User storage capacity: 15MB (GT16__-VNB__:11MB).
With HOST USB and device USB port.
Standard Ethernet, RS-422/485 and RS-232 ports.
Support multimedia and video /RGB units.
Analog touch panel.
Do not let the touch screen surface with water drops or other soft things stick to the surface,
Otherwise, the touch screen is easy to mistake that there is a hand touch caused by surface acoustic wave screen is not allowed.

In addition to cleaning the dirt on the surface of the touch screen,
You can use a soft dry cloth or a cleaning agent to clean out the center of the screen carefully,
Or use a dry soft cloth dipped in industrial alcohol or glass cleaning fluid to clean the touch screen surface.
Touch screen response is slow if you use a hand or other touch to touch the surface acoustic wave touch screen,
This shows that it is likely that the touch screen system has been obsolete, the internal clock frequency is too low,
Or because there is water in the surface of the touch screen to make the touch screen mobile, rapid response recovery,
To replace or upgrade the system mustt, or use dry cloth touch screen on the surface of the water GT1675-VNBA.
If the user is operating the touch screen, the direction of the touch move is to the left,
But the cursor of the system moves to the right,
The failure may be due to the conneection of the control box and the touch screen connected to the connector or the touch screen,
Users as long as the direction of the re exchange of it GT1675-VNBA.
