Product Details:
Payment & Shipping Terms:
|
Model: | HC-PQ13BD | Brand: | Mitsubishi |
---|---|---|---|
Type: | AC Servo Motor | Voltage: | 105 V |
Rotated Speed: | 3000 RPM | Power: | 100 W |
Current: | 0.9 A | Warranty: | 1 Year |

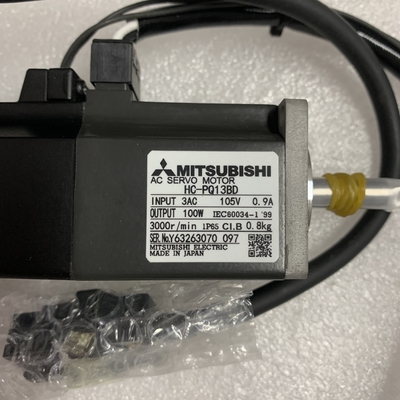

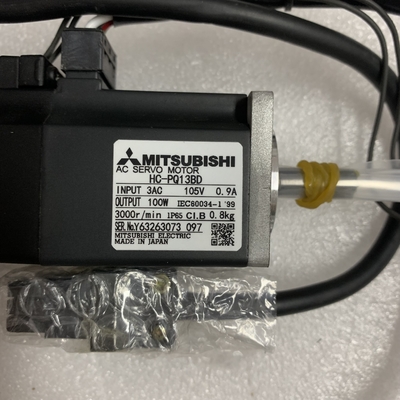

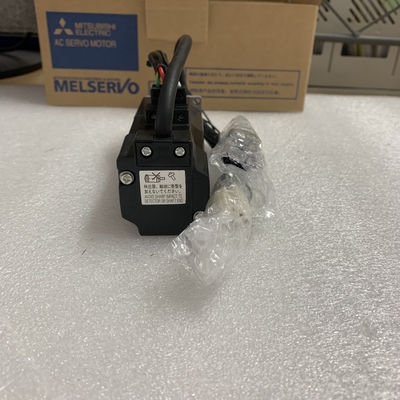

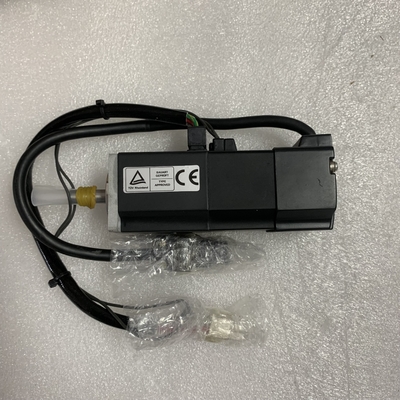

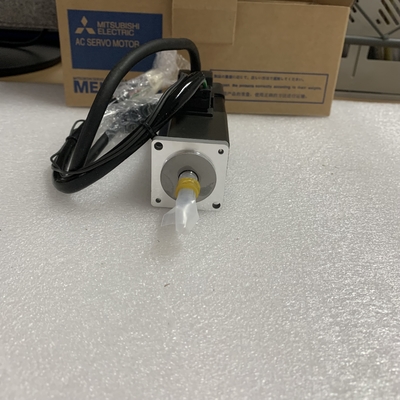

Mitsubishi HC-PQ13BD AC Servo Motor 3 PHASE 100 W 105 V 3000 RPM 0.9 A IP65 CIB NEW AND ORIGINAL GOOD PRICE
Specifications
Description | HC-PQ13BD is a Motors-AC Servo produced by Mitsubishi |
Series | HC-PQ series |
Rated output | 100 W |
Rated speed | 3000 r/min |
Adapter | Blank: without |
Electromagnetic brake | With brake |
Reduction gear | Blank: without reduction gear |
Shaft | D cut |
Compliance with Standard | Blank: Standard model (in Japan) |
Special Flanges | Blank |
MITSUBISHI HC-PQ13BD Product information and technical parameters:
Brand: MITSUBISHI
Name: servo motor
Model: HC-PQ13BD
Type: HC-PQ type.
Output power: 0.1kw.
Rated speed: 3000r/min.
Electromagnetic brake: there.
Key axis: D type shaft.
Motor aspects: the material, structure and processing technology of the servo motor is much higher than that of AC motor,
That is when the driver output current, voltage, frequency change is fast power supply,
The servo motor can change according to the change of the response of the power supply,
Response characteristics and anti overload capacity is much higher than the AC motor drive,
Motor aspects of the serious differences between the two are fundamentally different performance.
That is not the inverter output can not change so fast power signal,
But the motor itself can not react,
So in the frequency of the internal algorithm set to protect the motor to do the corresponding overload.
Of course, even without the ability to set the output of the inverter is limited,
Some of the excellent performance of the inverter can be directly driven servo motor.
Servo motor series: low inertia, medium / high power.
Rated output: 11.0kw.
Rated speed: 2000r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Voltage: 400V level.
Features: low inertia has low medium and high speed three models, suitable for different applications as a standard, 30KW and above servo motor can be installed flange or bracket MITSUBISHI HC-PQ13BD.
IP level: IP44 HC-PQ13BD
Application example:
1, injection molding machine.
2, semiconductor manufacturing equipment.
3, large material handling system.
4, stamping machine.
Abundant motor product line can optimize the performance of the machine.
Has a rich motor product line including a rotary servo motor, linear servo motor and direct drive motor MITSUBISHI HC-PQ13BD. MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 0.1kw.
Interface type: CC-Link communication type (built-in positioning function).
Power specification: single phase AC200V.
Positioning operation by setting position and rotational speed data in the positioning table and receiving the start signal from the main controller.
The setting of the position and speed of the positioning table, as well as the start and stop operation can be completed through CC-Link communication MITSUBISHI HC-PQ13BD.
By using the MR-J3-D01 extension IO unit, the DI/O instruction can be used to select and locate the table.
(CC-Link can not be used for MR-J3-D01 communications).
With built-in positioning function of the servo amplifier, can be set through the CC-Link communications and speed data. (corresponding to the CC-Link version: Ver.1.10)
Can be achieved through the CC-Link communications to start, stop and monitoring and other operations HC-PQ13BD.
Serial communication reduce wiring.
Distributed servo control system can be built by CC-Link communication.
The parameters of unit MR-PRU03 (optional) the parameter setting, operation and monitoring more convenient.
The servo amplifier can be used for speed control operation HC-PQ13BD.
When the two stations are occupied, the speed can be set directly by the remote register.
The goods is original goods with international standard brand. We supply standard parts number with international standard brand .
If you want to double check the price and shipping cost . Pls. Leave messages to me.
Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.
We also have a varity of industrial parts for sale ,you could contact me for long cooperation
For more information, pls. contact with me by email nancy@viyorktech.com
