Model: | 1747-ASB | Type: | I/O Adapter Module |
---|---|---|---|
Condition: | New | Slc: | 500 |

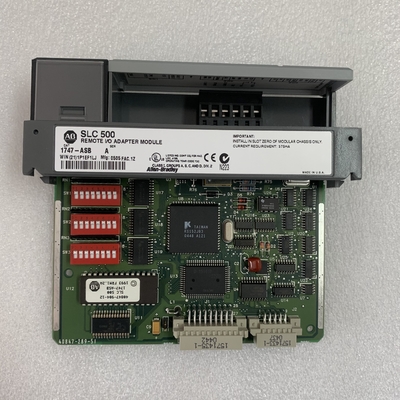

AB 1747-ASB I/O ADAPTER MODULE SLC500 REMOTE 230 KBIT/S 115 KBIT/S NEW
Specifications of 1747-ASB
Description | 1747-ASB is a I/O Adapter Module produced by AB |
Brand | AB |
Type | I/O Adapter Module |
Warranty | 1 Year |
Slc | 500 |
Condition | New |
The 1747-ASB is an I/O adapter module of the SLC 500 family. It is an SLC 500 single-slot, RIO communication link module. On the Remote Input Output (RIO) link, the 1747-ASB can be used as either a slave or as an adapter. It can also be a master of the remote chassis, plus the remote expansion chassis into which it is mounted. The 1747-ASB acts as a go-between the scanner and I/O modules. The SLC/PLC processor image is mapped from the I/O modules in remote chassis and the remote expansion chassis. The RIO link is responsible for the transfer of output data amidst the SLC/PLC scanner and the 1747-ASB module. The data is transmitted to output modules in the chassis backplane from the 1747-ASB module back to the scanner. Note that no manual programming from the user is required.
The 1747-ASB does not recognize an expansion chassis and treats all slots as if they were mounted on one chassis. In total, the 1747-ASB module influences 30 slots. Slot 0 must be assigned to the 1747-ASB module for it to influence all the 30 slots. An error will occur each time you install an extra module in the 31st slot. The SLC and the PLC don’t follow the same addressing protocol. The image bit numbers of the 1747-ASB are 0-7, 8-15 decimal when the SLC processor is used, and the image bit numbers of the 1747-ASB are 0-7, 10-17 octal when a PLC processor is used.
The 1747-ASB consumes 375mA at 5V from the backplane. It has an operating temperature range of 0-60 degrees Celsius (32-140 degrees Fahrenheit), and a storage temperature between -40-85 degrees Celsius (-40-185 degrees Fahrenheit). Additionally, the 1747-ASB operates best within a humidity of 5-95% non-condensing.
The goods is original goods with international standard brand. We supply standard parts number with international standard brand .
If you want to double check the price and shipping cost . Pls. Leave messages to me.
Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.
We also have a varity of industrial parts for sale ,you could contact me for long cooperation
For more information, pls. contact with me by email nancy@viyorktech.com
