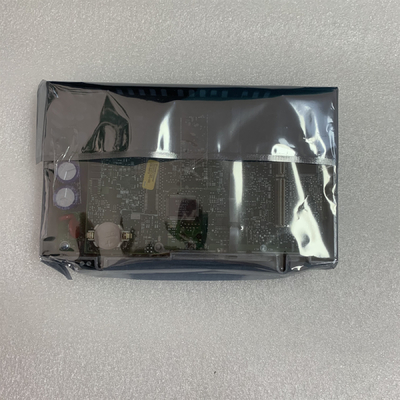

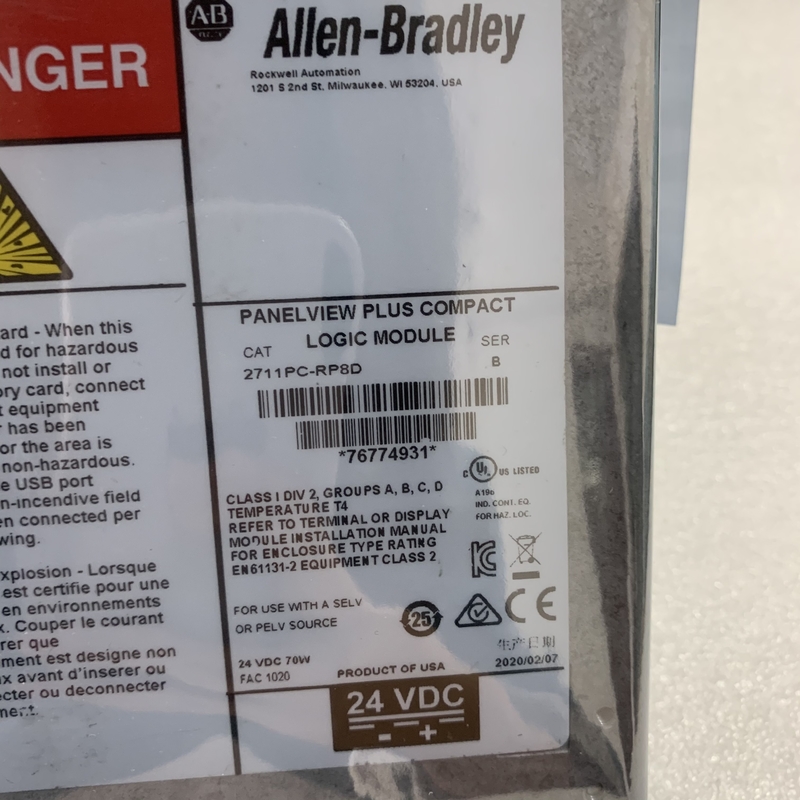

AB 2711PC-RP8D LOGIC MODULE PANELVIEW PLUS 6 512MB RAM/ FLASH NEW

The 2711P-RP8D logic module by is a module in the PanelView Plus 6 series. It supports the PanelView terminals without extended features. It is a 24 Volt DC input module with 512 MB of storage memory for data and application storage. It also has a volatile memory of 512 MB for processing applications. The module can be programmed by a computer using the RS-232 serial communication port. Other devices can also be linked to the 2711P-RP8D logic module via the same port. The module also uses the Ethernet protocol for enhanced network capability, and like other PanelView Plus 6 terminals, the 2711P-RP8D uses a standard Ethernet cable for applications, and data transfers between a computer and the PanelView Plus 6 (700 to 1500) terminal.

The 2711P-RP8D uses the Windows CE 6.0 operating system without extended features and file viewers, and it comes with a Factory Talk View machine edition station that requires no product keys. This unit is compatible with PanelView Plus 700-1500 Display terminals including the 2711P-RDT7C and 2711P-RDT10C. It can also be used with communication modules such as the 2711P-RN6 for additional communication ports. All fault codes for the 2711P-RP8D can be found in the manual. The logic module is often sold with display modules as an assembled terminal.

The PanelView Plus 6 component with catalog number 2711P-RP8D is a logic module that is intended for use with PanelView Plus 6 700-1500 operator terminals. This logic module is used as a replacement part for the existing logic module of a functioning operator terminal.

The 2711P-RP8D hosts a variety of hardware and software features. It comes with an internal Random Access Memory (RAM) amounting to 512MB and Flash Memory of 512 MB as well. This logic modules also contains the necessary software to configure and manage the hardware as well as run the downloaded application. It has Windows CE 6.0 operating system, FactoryTalk View, Machine Edition runtime, version 6.0 or later and FactoryTalk ViewPoint software, version 1.2 or later. Being installed with a Windows CE software, this logic module supports File Transfer Protocol (FTP), VNC access and viewing of PDF files which is helpful for opening operations manual and reports.

The 2711P-RP8D is powered by an external 24VDC supply voltage with a power dissipation of 70 Watts. It is installed at the back of the display module and connects the latter via the embedded PCI slot.

The 2711P-RP8D’s available communication interfaces are One Ethernet Communication port that is used to integrate data of controllers within the Ethernet network, One 9-Pin Sub-D Serial port for Point-to-Point connection and peripheral connection via the embedded Two USB interfaces. may also be established through the Serial port using a 9-Pin D Sub connector. The USB ports are specifically designed for insertion of external peripherals such as keyboard, mouse, printers and external storage mediums.
