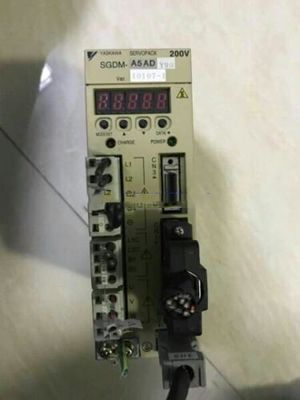

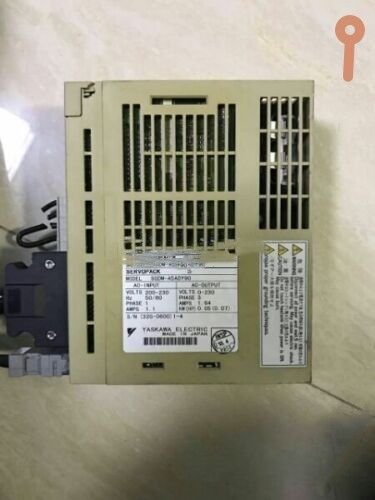

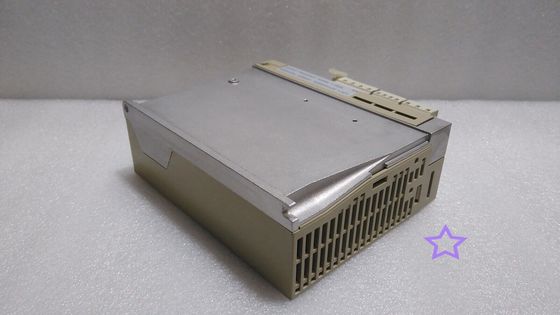

Yaskawa SGDM-A5ADY90 AC SERVO AMPLIFIER 200-230V 0.5A 0.05KW NEW

Yaskawa SGMAH-01AAA2C Product information and technical parameters:
Brand: Yaskawa
Name: servo motor
Model: SGMAH-01AAA2C
Servo motor type SGMAH (speed: 3000r/min).
Power: 0.1kw.
Power supply voltage: single phase AC200V.
Serial encoder: 13 bit relative value.
Design sequence: A.
Shaft end: straight shaft without key.
Optional parts: with DC24V brake.
Improve mechanical properties.

In order to achieve a higher production efficiency, SGDMAH type to the best control to explore the highest performance of the machine,
Compared with the original models, CPU computing time for its 1/2, through the expansion of the new control algorithm,
Positioning time is shortened to the original product of 1/3, to achieve a good response.
The parameter setting and maintenance time is shortened.
In order to establish a high degree system in a short time, the use of the simplicity of the.
Flexible use of online automatic adjustment function,
Automatic adjustment of servo system with mechanical characteristics.
Then use the main loop / control circuit power separation and alarm tracking memory function, can be simple to carry out maintenance

Servo motor SGMGH type.
Rated speed: 1500r/min.

Power: 5.5kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.
Design sequence: A.
Shaft end: straight shaft without key.
Optional parts: with oil seal, DC90V brake.
High speed feed series: high speed running when no load Yaskawa SGMAH-01AAA2C.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain
Parameter setting device.
The parameters can be directly entered by the servo drive body.
Saving wiring.

Using a serial encoder, encoder wiring number than the original product reduced by 1/2.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlLarge capacity servo unit Yaskawa SGMAH-01AAA2C.
Maximum applicable motor capacity: 30KW.
Power supply voltage: three phase AC200V.
Buckle: analog voltage / pulse sequence command type (rotary servo motor).
Design sequence: B.
Optional parts (hardware): base mounting type (standard).
Improve the performance of large torque transmission machinery!
Vibration suppression function Yaskawa SGMAH-01AAA2C.
When the driving system of the machine is vibrating, the observer is used to reduce the vibration and suppress the vibration of the device.

Friction compensation function.
Even when the load fluctuation, the gain can be suppressed without changing the position deviation.
Therefore, the overshoot can be suppressed to ensure the stability of the device.
Feature tracking control.
Even the lower mechanical properties, but also the characteristics of the mechanical recovery,
Make the mechanical properties of the control action, thereby reducing the time to adjust the timeEquipped with DeviceNet communication function type servo unit (external power supply drive type)
Maximum applicable motor capacity: 0.4kw.
Power supply voltage: single phase AC100V.
Interface: instruction selection and installation (linear servo motor).
Matching (hardware): paint.

Matching (software): standard.
Matching (parameter): standard.
Optional modules: DeviceNet module (external power driver).
Communication specifications for DeviceNet based on open field network.
The combination of the DeviceNet controller and the V can be used to implement motion control in a simple way.
Can make use of the city''s rich DeviceNet support software.
Can use the upper controller to manage the servo information.
Through the network from the host controller to monitor the running status of the servo drive, alarm information.
Using the upper controller to manage the servo information, which can improve the maintenance (shorten the debugging time, improve the efficiency of maintenance operations).

Save wiring, reduce the cost and improve the reliability.
Because the upper controller and the servo unit arre connected through the communication network, the connection is greatly saved SGMAH-01AAA2C.
Built in rich positioning function.
Can be from the upper controller (PLC or computer) to carry out a variety of simple positioning action.
Equipped with simple positioning, continuous rotation, and return to the origin of continuous rotary motion positioning, running and other rich positioning function SGMAH-01AAA2C.
