Brand: | Yaskawa | Model: | SGMGH-09DCA6F |
---|---|---|---|
Type: | AC Servo Motor | Power: | 850W |
Voltage: | 400V | Current: | 7.1A |
High Light: | high speed servo motor,compact servo motor |

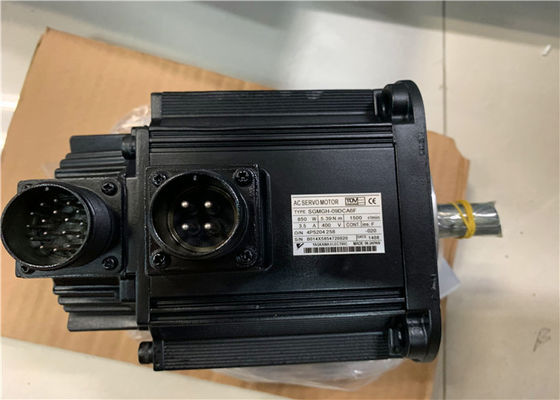

Yaskawa SGMGH-09DCA6F Industrial AC Servo Motor 850W 400V 7.1AMPS 1500RPM 5.39N.m NEW
Quick Details:
YASKAWA ELECTRIC
SGMGH-09DCA6F
SGMGH09DCA6F
SERVO MOTOR 3.5AMP 400V 850W 1500RPM
One Year Warranty
SGMG
0.45kW to 15kW, Rated Speed 1,500 RPM
The SGMGH Sigma II servo motor is a legacy product and no longer promoted in the Americas. The SGMGH had a medium-inertia rotor and incorporated the segmented stator design, which dramatically reduced overall size.
Specifications
|
|||
---|---|---|---|
Time Rating: |
Continuous |
Ambient Humidity: |
20 to 80% (non-condensing) |
Insulation: |
Class F |
Rated Speed: |
1500rpm |
Vibration: |
15mm or less |
Maximum Speed: |
0.45 to 7.5kW: 3000rpm |
Withstand Voltage: |
1500VAC |
Excitation: |
Permanent magnet |
Insulation Resistance: |
10MW minimum at 500VDC |
Drive Method: |
Direct drive |
Enclosure: |
Totally-enclosed, self-cooled |
Mounting: |
Flange-mounted |
Ambient Temperature: |
0 to 40ºC |
