|Type:||Industrial Servo Drive||Power:||100W|
|AC-INPUT:||3PH 90-253V 50/60HZ 2.0A||AC-OUTPUT:||3PH 0-253V 0-300HZ 0.91A|
ac servo drive,
motor driver for servo motor

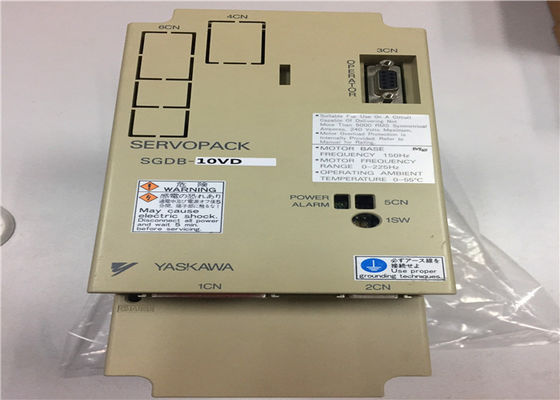

Yaskawa SGDB-10VD 850W Industrial SERVO DRIVE 8AMP 200-230VAC 50/60HZ 3PH NEW
1KW 3PH 200V
One Year Warranty
|Viyork Stock No72001||Brand/ManufacturerYaskawa||Manufacturer Part NumberSGDB-10VD|
|Product typeServo Drive||Phase1;3||Control functionServo Control|
|Supply voltage200 to 230 V ac||Current rating30 mA||Width110 mm|
|Depth225 mm||Height250 mm||Minimum operating temperature0 °C|
|Maximum operating temperature55 °C||Power rating1 kW;1.3 hp|
SGDB Series SERVOPACK
The operation of the SGDB SERVOPACK is basedon commands sent via serial communications or contacts.
Information of motor position is managed within the SERVO-PACK, and there is no need to form a speed or position feedback loop between
the host controller and SERVOPACK.
Furthermore, acceleration and deceleration patterns can also be created based on user settings within the SERVOPACK.
Using the SGDB SERVOPACK
The SGDB SERVOPACK has four operation modes.
These modes can be switched at any time by means of a contact.
Following the input of command position data, the input of an operation start signal performs
the positioning based on the input data.
The operation method in automaticmode canbe selectedfrom thefollowing: Stationnumbers,
digital switches, serial communications, and command table.
The Servomotor runs at a constant speed while a manual mode signal is being input.
Positioning is performed by a pulse train command from an external pulse generator.
1. Pulse system: Line driver, line receiver
2. Pulse form: Two-phase pulse trains with 90° phase difference (×1) (450 kpps max.)
Sign + pulse train (450 kpps max.)
CW + CCW pulse trains (450 kpps max.)
An external PG input is triggered when an /LPG signal is input.
