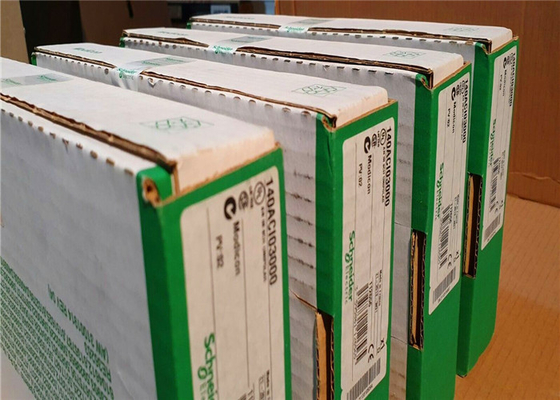

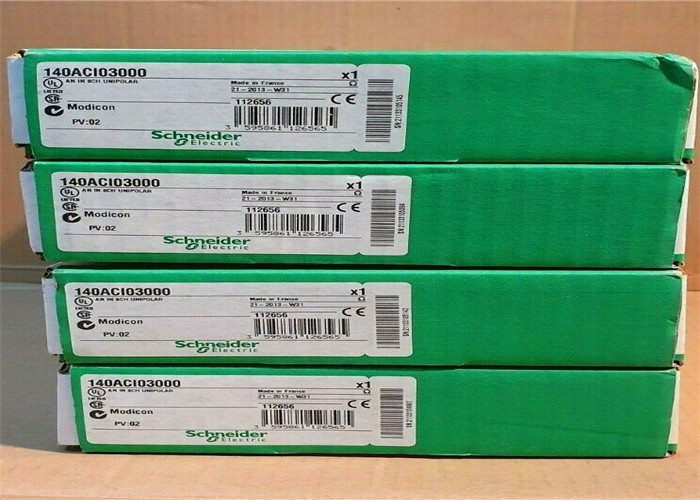

140ACI03000 Modicon Quantum PLC Module CHNEIDER New&Original In Box

Series

Modicon Quantum

Color

Blue

Type of filter

Single pole low pass - 3 dB at 15 Hz +/- 20 %

Analogue input number

8

Input type

Differential

Addressing requirement

9 input words

Analogue input resolution

12 bits

Linear measuring range

1...5 V

4...20 mA

Absolute maximum input

50 V DC

Input impedance

250 Ohm current +/- 0.01 %

> 20 MOhm voltage

Absolute accuracy error

+/- 0.1 % of full scale maximum

+/- 0.05 % of full scale

Linearity error

+/- 0.04 %

Accuracy drift according to temperature

<= 0.005 % of full scale/°C

+/- 0.0025 % of full scale/°C

Common mode rejection

> -72 dB 60 Hz

Isolation between channels and bus

3000 V DC for 60 s

1000 V DC

Update time

5 ms

Fault type

Undervoltage range 1...5 V

Broken wire 4...20 mA

Marking

CE

Local signalling

8 LEDs red channel fault

8 LEDs green channel is turned on

1 LED red external fault

1 LED green bus communication is present (Active)

Bus current requirement

240 mA

Power dissipation in W

2 W
