Product Details:
Payment & Shipping Terms:
|
| Brand: | Schneider | Model: | 140DDI35300 |
|---|---|---|---|
| Range Of Product: | Modicon Quantum Automation Platform | Origin Of Country: | France |
| Logic Input: | Positive (sink) | Discrete Input Voltage: | 24 V DC |
| High Light: | schneider electric modicon quantum,modicon tsx quantum |
||

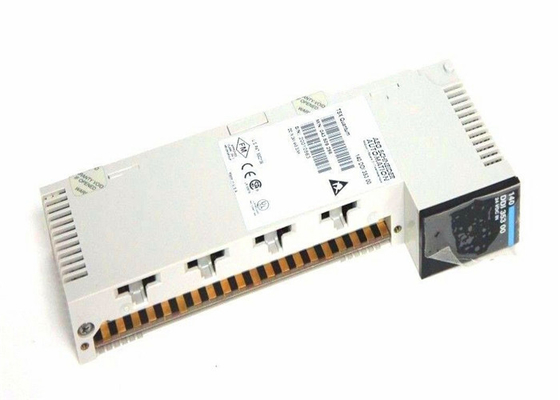

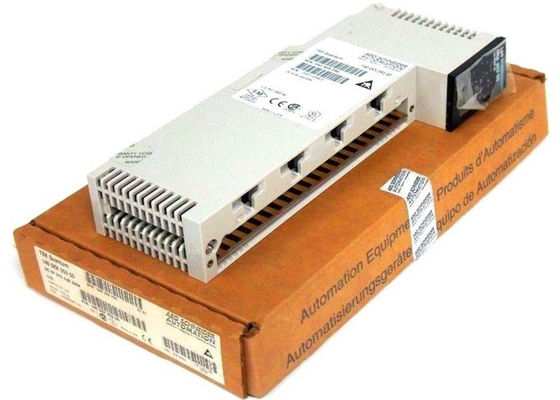

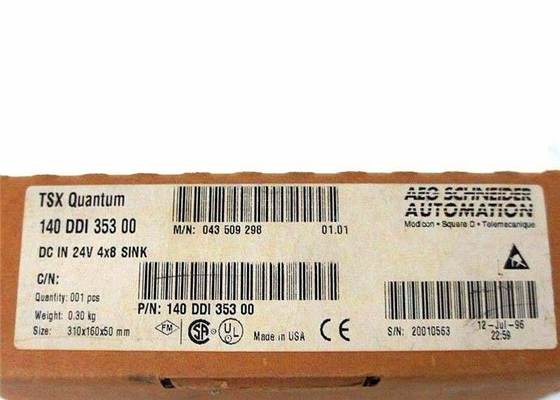

NIB SCHNEIDER MODICON 140-DDI-353-00 DC IN 24V 4X8 SINK MODULE 140DDI35300
Quick Details:
One Year Warranty
SPECIFICATION
|
Manufacturer |
Schneider Electric |
|
Series |
Modicon Quantum |
|
Module format |
Standard |
|
Product or component type |
Low voltage dc discrete input modules |
|
Discrete input number |
32 |
|
Group of channels |
4 |
|
Logic input |
Positive (sink) |
|
Discrete input voltage |
24 V DC |
|
Input voltage limits |
19.2...30 V |
|
Voltage state 1 guaranteed |
15...30 V DC |
|
Voltage state 0 guaranteed |
-3...5 V DC |
|
Current state 1 guaranteed |
>= 2 mA at Us = 5.5 V and Uin = 0 V |
|
Current state 0 guaranteed |
<= 0.5 mA |
|
Addressing requirement |
2 input words |
|
Input impedance |
2500 Ohm |
|
Leakage current |
200 mA at Us = 5.5 V and Uin = 4 V |
|
Absolute maximum input |
56 V during 1.3 ms decaying pulse |
|
|
30 V continuous |
|
Response time |
<= 1 ms from state 1 to state 0 |
|
|
<= 1 ms from state 0 to state 1 |
|
Protection type |
Input protection by resistor limited |
|
Power dissipation |
1.7 W + (0.36 x number of points on) |
|
Isolation between group and bus |
1780 Vrms for 1 minute |
|
Isolation between group |
500 Vrms for 1 minute |
|
Local signalling |
32 LEDs green input status |
|
|
1 LED red external fault detected (F) |
|
|
1 LED green bus communication is present (Active) |
|
Marking |
CE |
|
Bus current requirement |
330 mA |
