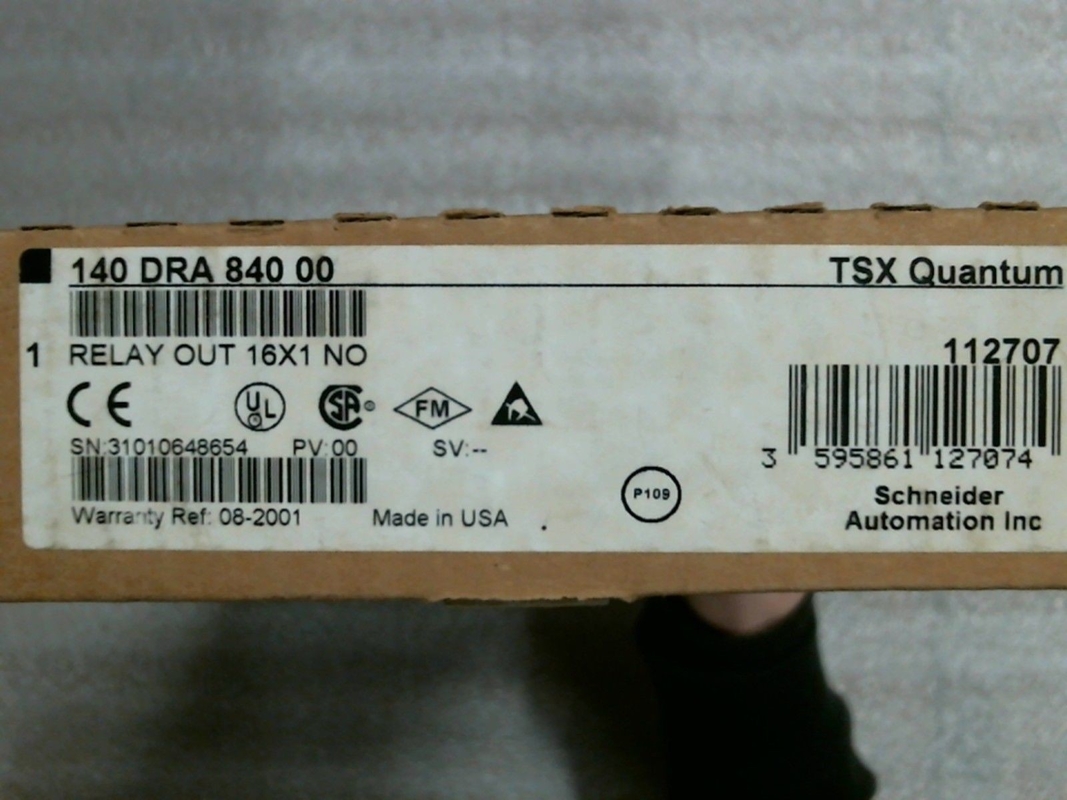

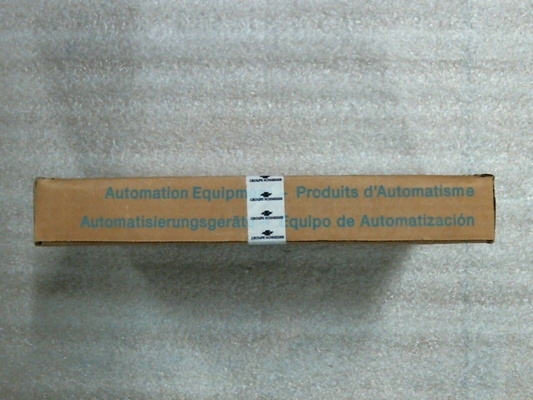

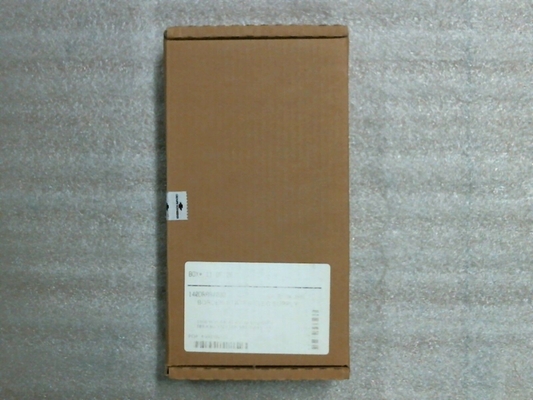

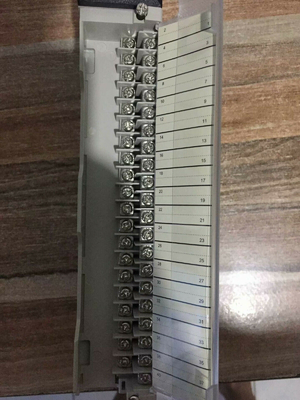

New Sealed Schneider Electric 140DRA84000 Modicon Quantum Relay Discrete Output

Series

Modicon Quantum

Module format

Standard

Product or component type

Relay discrete output module

Discrete output number

16

Contacts type and composition

1 NO

Contact form

Form A

Discrete output voltage

5...30 V DC

30...150 V DC

20...250 V AC

Addressing requirement

1 output word

Minimum load

>= 50 mA 5...30 V DC

>= 50 mA 20...250 V AC

2 A 250/30 V AC/DC resistive at 60 °C

1 A 250/30 V AC/DC tungsten

1 A 250/30 V AC/DC 1/8 hp cos phi = 0.4

Surge current

<= 10 A for 10 ms capacitive

Switching capacity in VA

500 VA resistive

Response time on input opening

<= 20 ms at state 1 to state 0

<= 10 ms at state 0 to state 1

Mechanical durability

10000000 cycles

Electrical durability

50000 cycles 500 mA 30...150 V DC resistive

200000 cycles 2 A 250 V AC resistive

100000 cycles 300 mA 30...150 V DC resistive

100000 cycles 30...150 V DC interposing relay

100000 cycles 100 mA 30...150 V DC L/R = 10 ms

Output overvoltage protection

Internal by varistor, 275 V

Isolation between channels

1780 Vrms AC for 1 minute

Isolation between channels and bus

2500 V DC for 1 minute

1780 Vrms AC for 1 minute

Power dissipation

5.5 W + (0.5 x the number of points on)

Marking

CE

Local signalling

16 LEDs green input status

1 LED red external fault detected (F)

1 LED green bus communication is present (Active)

Bus current requirement

1100 mA
